LG Display LM240WUB-SSC1 Application Details
| Basic Detail : | Manufacturer | | Model Name | LM240WUB-SSC1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - |
| Panel Size | 24.0 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
LG Display LM240WUB-SSC1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.090×0.270 mm | Pixel Pitch(W×H) | 0.270×0.270 mm [94PPI] |
| Physical Size : | Active Viewing | 518.4(W)×324(H) mm | Overall Dim. | 528.2(W)×335.9(H) mm |
| Bezel Opening | - | Overall Depth | 8.8/12.8 (Typ./Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | 4-side borderless |
| Fixation : | Rear mounting holes (9-M3) |
| Other Detail : | Mass | 2.15/2.26Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM240WUB-SSC1 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 80% | sRGB | 100% coverage |
| Adobe RGB | 78% coverage | DCI-P3 | 83% coverage |
| Rec.2020 | 59% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM240WUB-SSC1 Interface Details
| Signal Electrical : | Input Current | 485/610mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) |
| Consumption | 2.45/3.05W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS100-L30O-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160B |
LG Display LM240WUB-SSC1 Lightting Details
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
| Exchange | - | Amount | 17S4P | Life | 30K(Min.) (Hours) |
| Lamp Electrical : | Input Current | 62/67mA (Typ./Max.) | Input Voltage | 47.8±3.4V |
| Consumption | 11.8/12.7W (Typ./Max.) |
| Interface Features : | Position | | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BM06B-SHJS-TB(HF) | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 528.2(W)×335.9(H)×12.8(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.15/2.26Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM240WUB-SSC1 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM240WUB-SSC1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
|
|

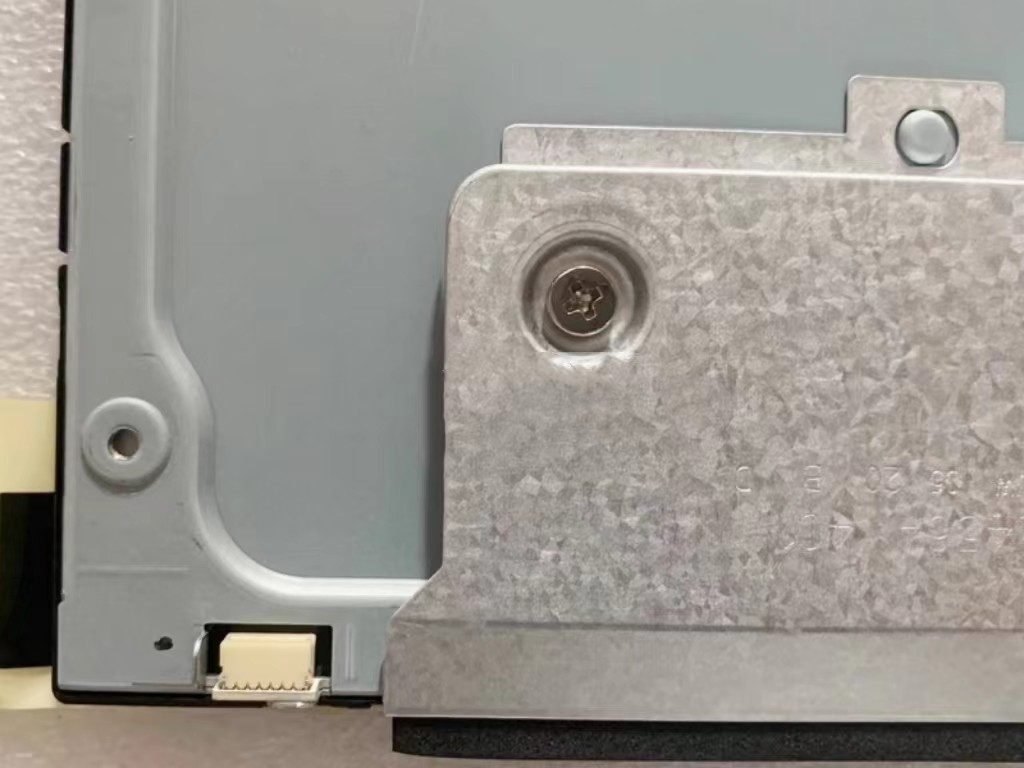

LM240WUB-SSC1 LG Display 24.0" 1920(RGB)×1200, 350 cd/m² INDUSTRIAL LCD DISPLAY Images
|
