BOE GV101WXM-N80 Application Details
| Basic Detail : | Manufacturer Model Name GV101WXM-N80 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size Designed For |
| Maximum Ratings : | OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C |
BOE GV101WXM-N80 Mechanical Details
| Pixel Features : | Number of Pixel 1280(RGB)×800, WXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0565×0.1695 mm Pixel Pitch(W×H) 0.1695×0.1695 mm [149PPI] |
| Physical Size : | Active Viewing 216.96(W)×135.6(H) mm Overall Dim. 228.2(W)×148.85(H) mm Bezel Opening - Overall Depth 2.6/4.9 (Typ./Max.) mm |
| Outline Features : | Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:10 Shape Style |
| Fixation : | Without |
| Other Detail : | Mass TBD Surface Hard coating (3H) |
BOE GV101WXM-N80 Optical Details
| Basic Detail : | Luminance 500 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 30 (Typ.)(Tr+Td) ms Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Operating Mode ADS, Normally Black, Transmissive |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(13 points) |
BOE GV101WXM-N80 Interface Detail
| Signal Electrical : | Input Current TBD Input Voltage 3.3V (Typ.) Consumption - Signal Interface LVDS (1 ch, 8-bit), eDP1.2, HBR1 (2.7G/lane) |
| Interface Features : | Position - Type Connector |
| Interface Detail : | Brand Model Pitch Pins Amount Pin Assignment I-PEX 0.5 mm 40 pins 1 pcs |
BOE GV101WXM-N80 Lightting Details
| Lamp Features : | Lamp Type WLED Amount - Position Edge light type (Bottom side) Exchange - Lamp Shape - Lamp Life 15K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage 21/23.1V (Typ./Max.) Input Current Consumption 2.52/2.8W (Typ./Max.) |
| Interface Features : | Position - Type Included in signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Voltage 10/12/13.2V (Min./Typ./Max.) Input Current |
BOE GV101WXM-N80 Packing Details
| Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| Carton | 42 | 1 | 482×366×297 | 13.40 | 0.0524 | |
| Pallet | 765 | 18 | N/A | N/A | N/A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228.2(W)×148.85(H)×4.9(D) mm, with surface treament of Hard coating (3H), net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, GV101WXM-N80 can provides 500 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. GV101WXM-N80 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

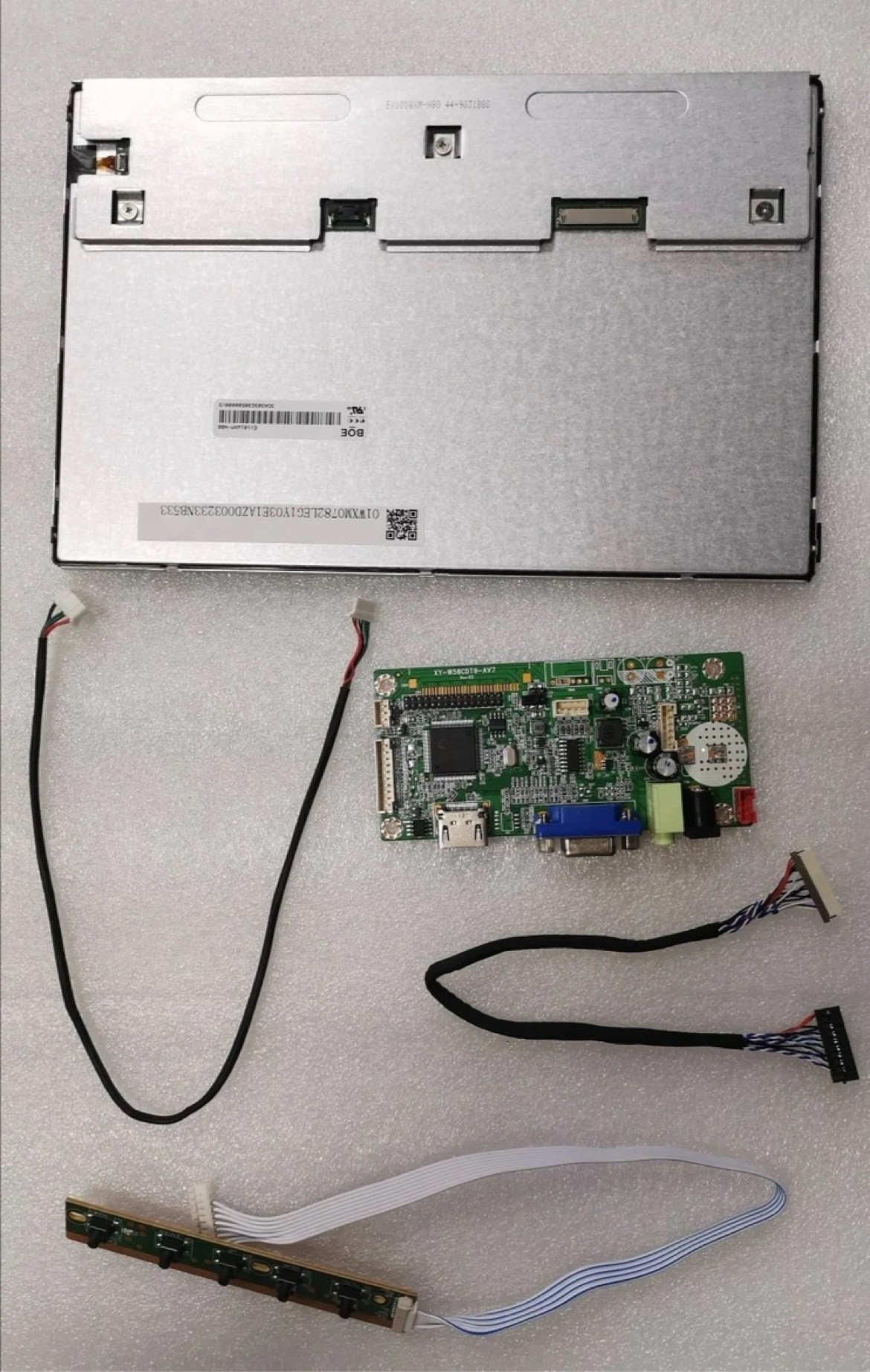

GV101WXM-N80 BOE 10.1" 1280(RGB)×800, 500 cd/m² INDUSTRIAL LCD DISPLAY Images
|
