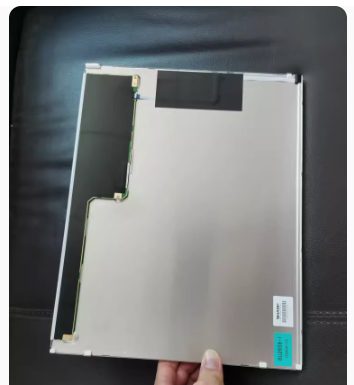

LQ150X1LX99 Sharp 15.0" 1024(RGB)×768, XGA 85PPI 85/85/85/85 INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Sharp

Model Number : LQ150X1LX99

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : Sharp

Diagonal Size : 15.0"

Resolution : 1024(RGB)×768, XGA 85PPI

Viewing Angle : 85/85/85/85

Power Supply : 3.3V (Typ.)

Environment : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C

Contact Now

Sharp LQ150X1LX99 Application Details

Basic Info : Panel Brand Panel Model LQ150X1LX99
Diagonal Size 15.0" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. -20 ~ 70 °C Storage Temp. -25 ~ 70 °C
RoHS State Vibration Rating 1.0G (9.8 m/s²)

Sharp LQ150X1LX99 Mechanical Details

Pixel Features : Pixel Format 1024(RGB)×768 [XGA] Dot Pitch 0.099×0.297 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI]
Mechanical Size : Display Area 304.128×228.096 mm (H×V) Bezel Area 307.4×231.3 mm (H×V)
Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 9.6±0.5 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Other Features : Weight - Surface Hard coating (3H)

Sharp LQ150X1LX99 Optical Details

Basic Information : Brightness - Contrast Ratio 1500:1 (Typ.) (Transmissive)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Optical Mode ASV, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 35 (Typ.)(Tr+Td) (ms)
Color Performance : Chromaticity Wx:0.305; Wy:0.320 Color Numbers 262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature 7037K White Uniformity 1.33 (Max.)(5 points)

Sharp LQ150X1LX99 Interface Details

Signal Systerm : LVDS (1 ch, 6/8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 380/500mA (Typ./Max.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
HRS DF14H-20P-1.25H 1.25 mm 20 pins 1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Hard coating (3H). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LX99 can provides 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. LQ150X1LX99 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)

.

LQ150X1LX99 Sharp 15.0" 1024(RGB)×768, XGA 85PPI 85/85/85/85 INDUSTRIAL LCD DISPLAY


China LQ150X1LX99 Sharp 15.0" 1024(RGB)×768, XGA 85PPI 85/85/85/85 INDUSTRIAL LCD DISPLAY wholesale

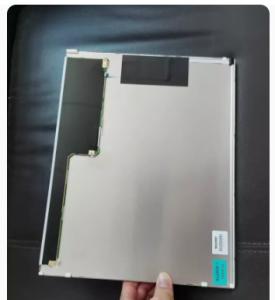

LQ150X1LX99 Sharp 15.0" 1024(RGB)×768, XGA 85PPI 85/85/85/85 INDUSTRIAL LCD DISPLAY Images
