R196U2-L02 Chimei Innolux 19.6" 1600(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY

Name: R196U2L02 Chimei Innolux 196quot 1600RGB1200 500 cdm INDUSTRIAL LCD DISPLAY
Brand: Chimei Innolux
Price: 1 USD

China R196U2-L02 Chimei Innolux 19.6" 1600(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Chimei Innolux

Model Number : R196U2-L02

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : Chimei Innolux

Diagonal Size : 19.6"

Resolution : 1600(RGB)×1200, UXGA 102PPI

Luminance : 500 cd/m²

Viewing Angle : 85/85/85/85 (Typ.)(CR≥20)

Environment : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Power Supply : 12.0V (Typ.)

Contact Now

Chimei Innolux R196U2-L02 Carton Details

Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)	Remarks
Carton	5	1	422×402×558	15.00	0.0947
Air pallet	60	12	1200×1000×1327	N/A	1.5924
Sea & Land pallet	90	18	1200×1000×1918	N/A	2.3016

R196U2-L02 Chimei Innolux 19.6" 1600(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY

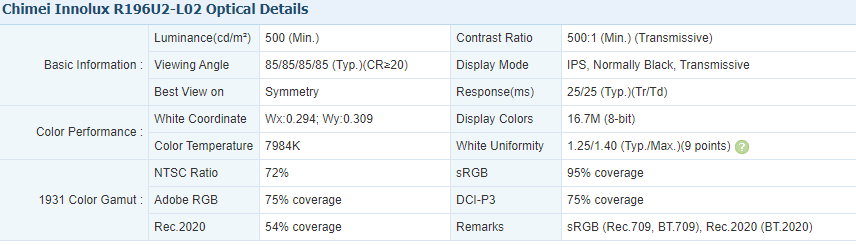

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 398.4(W)×298.8(H) mm, outline size of 427(W)×322.4(H)×38.3(D) mm, viewing area size of 402.4(W)×302.8(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.94/1.99Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, R196U2-L02 can provides 500 cd/m² display brightness 500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 17 pcs CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With Inverter. R196U2-L02 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 12.0V (Typ.)

R196U2-L02 Chimei Innolux 19.6" 1600(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY

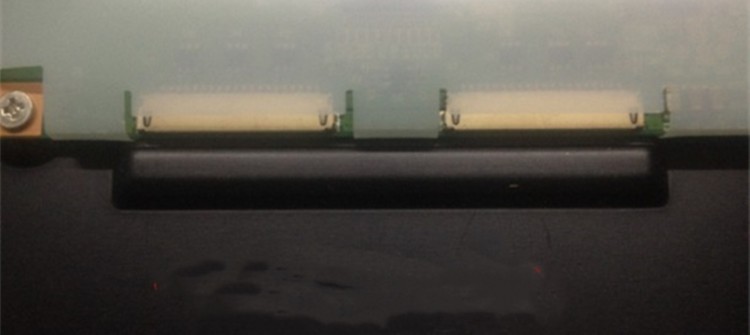

R196U2-L02 Chimei Innolux 19.6" 1600(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY Images
