BOE NV173FHM-N4L Application Details
| Basic Detail : | Manufacturer | | Model Name | NV173FHM-N4L |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | BOE0A5C |
| Panel Size | 17.3 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
BOE NV173FHM-N4L Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0663×0.1989 mm | Pixel Pitch(W×H) | 0.1989×0.1989 mm [127PPI] |
| Physical Size : | Active Viewing | 381.888(W)×214.812(H) mm | Overall Dim. | 389.89(W)×238.31(H) mm |
| Bezel Opening | - | Overall Depth | 3.3±0.2 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Fixation : | Without |
| Other Detail : | Mass | 500g (Max.) | Surface | Antiglare, Hard coating (3H) |
BOE NV173FHM-N4L Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 16 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) |
| 1931 Color Gamut : | NTSC Ratio | 97% | sRGB | 100% coverage |
| Adobe RGB | 89% coverage | DCI-P3 | 99% coverage |
| Rec.2020 | 72% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV173FHM-N4L Interface Details
| Signal Electrical : | Input Current | 195/242mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.64/0.8W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) |
| Interface Features : | Position | | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSAK24025P30 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020I |
BOE NV173FHM-N4L Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Included in signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 634mA (Max.) | Input Voltage | 6.0/12.0/20.0V (Min./Typ./Max.) |
| Consumption | 7.6W (Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 389.89(W)×238.31(H)×3.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 500g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a ADS, Normally Black, Transmissive LCM product, NV173FHM-N4L can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV173FHM-N4L utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

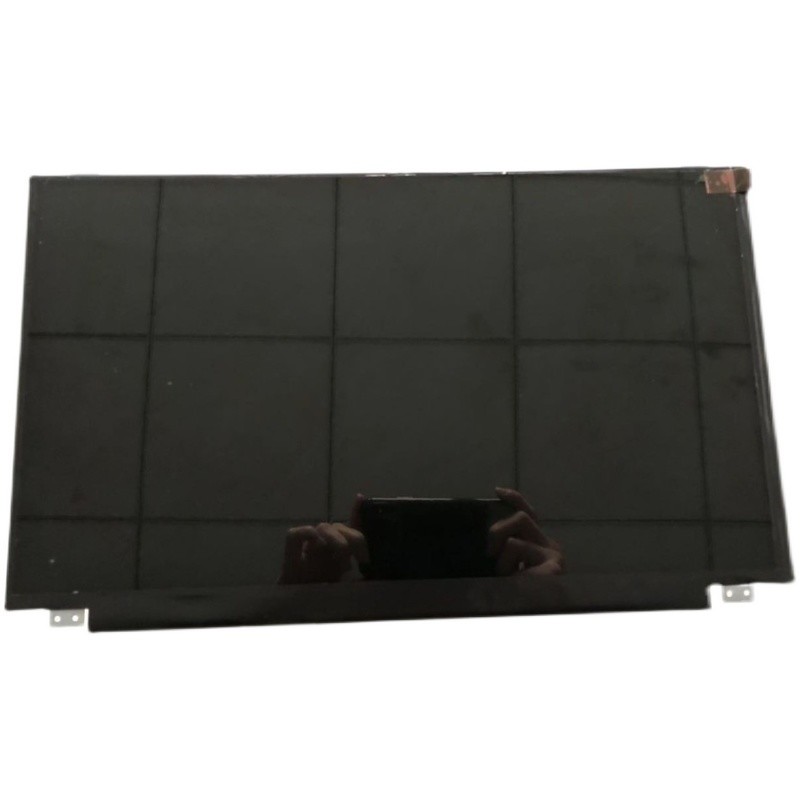

NV173FHM-N4L BOE 17.3" 1920(RGB)×1080, 500 cd/m² INDUSTRIAL LCD DISPLAY Images
|
