B116XAB01.5 AUO 11.6" 1366(RGB)×768, 235 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : AUO

Model Number : B116XAB01.5

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : AUO

Diagonal Size : 11.6"

Resolution : 1366(RGB)×768, WXGA 135PPI

Brightness : 235 cd/m²

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Input Voltage : 3.3V (Typ.)

Environment : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Active Area : 256.125(W)×144(H) mm

Outline(mm) : 299.8(W)×182.6(H)×4.05(D)

Contact Now

B116XAB01.5 AUO 11.6" 1366(RGB)×768, 235 cd/m² INDUSTRIAL LCD DISPLAY

AUO B116XAB01.5 Electronics Details

Frame Frequency :

60Hz

Reverse Scan :

Power Consumption :

2.6W (Max.)

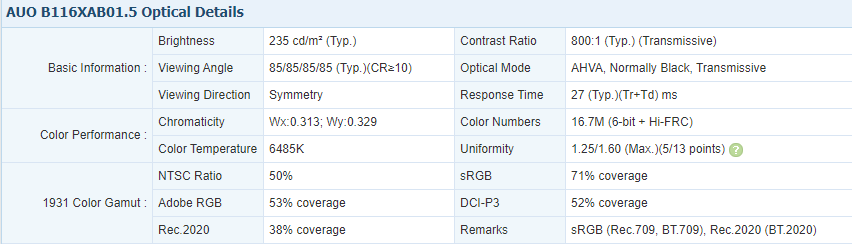

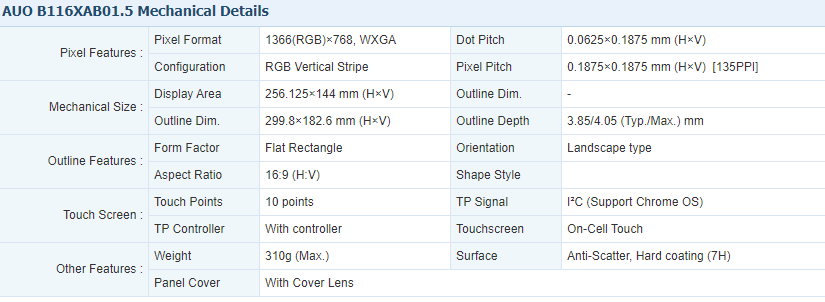

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.125(W)×144(H) mm, outline size of 299.8(W)×182.6(H)×4.05(D) mm, with surface treament of Anti-Scatter, Hard coating (7H), net weight of 310g (Max.). As a AHVA, Normally Black, Transmissive Assembly product, B116XAB01.5 can provides 235 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 27 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B116XAB01.5 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv)

B116XAB01.5 AUO 11.6" 1366(RGB)×768, 235 cd/m² INDUSTRIAL LCD DISPLAY

B116XAB01.5 AUO 11.6" 1366(RGB)×768, 235 cd/m² INDUSTRIAL LCD DISPLAY Images
