LM270WR8-SSD1 LG Display 27.0" 3840(RGB)×2160, 450 cd/m² INDUSTRIAL LCD DISPLAY

Name: LM270WR8SSD1 LG Display 270quot 3840RGB2160 450 cdm INDUSTRIAL LCD DISPLAY
Brand: LG Display
Price: 1 USD

China LM270WR8-SSD1 LG Display 27.0" 3840(RGB)×2160, 450 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG Display

Model Number : LM270WR8-SSD1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : LG Display

Diagonal Size : 27.0"

Resolution : 3840(RGB)×2160, UHD 163PPI

Luminance : 450 cd/m²

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Max. Ratings : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Outline Size : 603.9(W)×347.45(H) ×15.8(D) mm

Input Voltage : 10.0V (Typ.)

Contact Now

LG Display LM270WR8-SSD1 Carton Details

Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)	Remarks
Carton	9	1	710×365×468	N/A	0.1213
Pallet	54	6	1140×740×1119	N/A	0.9440

LM270WR8-SSD1 LG Display 27.0" 3840(RGB)×2160, 450 cd/m² INDUSTRIAL LCD DISPLAY

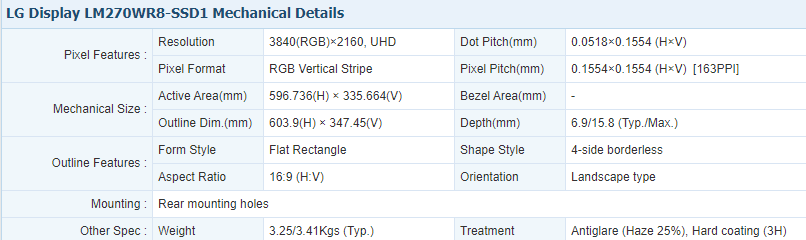

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 603.9(W)×347.45(H)×15.8(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.25/3.41Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM270WR8-SSD1 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 93% (DCI-P3). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WR8-SSD1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.)

LM270WR8-SSD1 LG Display 27.0" 3840(RGB)×2160, 450 cd/m² INDUSTRIAL LCD DISPLAY

LM270WR8-SSD1 LG Display 27.0" 3840(RGB)×2160, 450 cd/m² INDUSTRIAL LCD DISPLAY Images
