Innolux N161HMA-GAK Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
| | N161HMA-GAK | a-Si TFT-LCD , LCM | CMN1609 |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | 0 ~ 50 °C | -20 ~ 60 °C |
Innolux N161HMA-GAK Mechanical Features
| Panel Size : | 16.1 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0539×0.1617 mm | 0.1617×0.1617 mm [137PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 355.39×199.91 mm | - | 361.9×211.16 mm | 3.2 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) |
| Fixation : | Without |
| Other Features : | Panel Cover | Weight | Surface |
| - | 370/380g (Typ./Max.) | Antiglare, Hard coating (3H) |
Innolux N161HMA-GAK Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 250 cd/m² (Typ.) | AAS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 11/9 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 50% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(9 points) |
Innolux N161HMA-GAK Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 447/500mA (Typ./Max.) | 3.3V (Typ.) | 1.75W (Max.) |
| Interface Features : | Position | Type | Interface |
| | Connector | eDP (4 Lanes), eDP1.3 |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-76 | 1 pcs | 0.5 mm | 40 pins |
Innolux N161HMA-GAK Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | - | - | 15K(Min.) | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Included in signal interface | With LED Driver |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| 169/252/266mA (Min./Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 3.68W (Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 355.39(W)×199.91(H) mm, outline size of 361.9(W)×211.16(H)×3.2(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 370/380g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N161HMA-GAK can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 11/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N161HMA-GAK utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
|
|

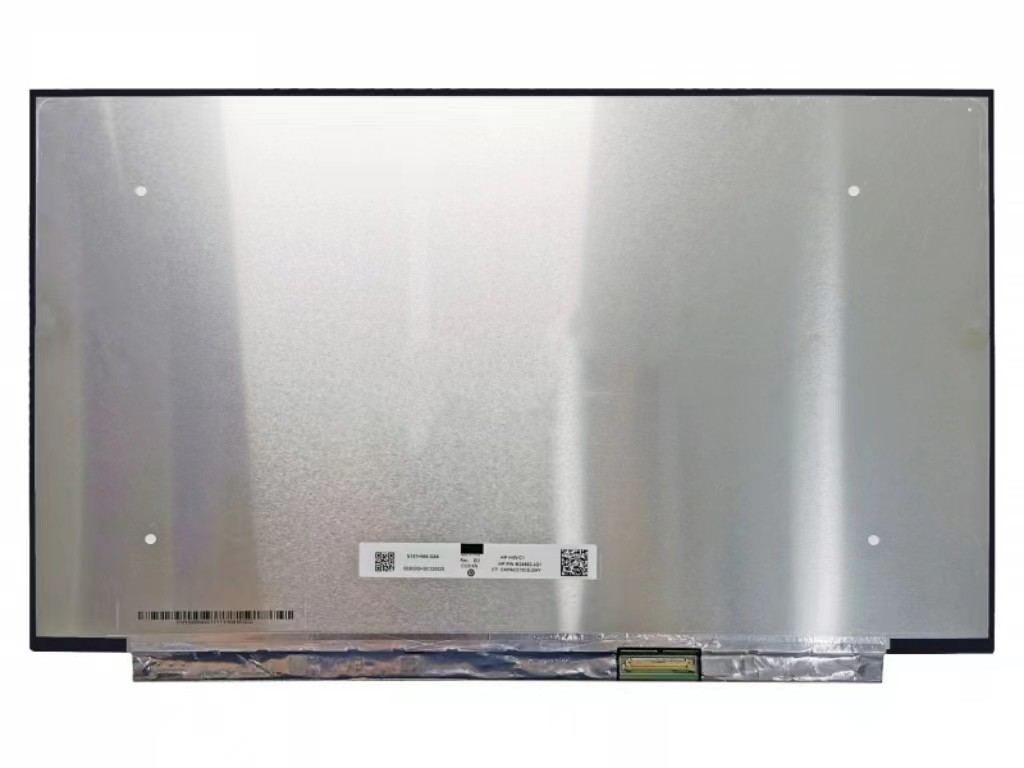

N161HMA-GAK Innolux 16.1" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
