LG Display LM215WF9-SSB3 Application Details
| Basic Info : | Panel Brand | | Panel Model | LM215WF9-SSB3 8 Compatible |
| Diagonal Size | 21.5" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM215WF9 (SS)(B3) |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
LG Display LM215WF9-SSB3 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.08265×0.24795 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.24795×0.24795 mm (H×V) [102PPI] |
| Mechanical Size : | Display Area | 476.064×267.786 mm (H×V) | Bezel Area | - |
| Outline Dim. | 484.5×284.4 mm (H×V) | Outline Depth | 6.7/11.1 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | 3-side borderless |
| Holes & Brackets : | Rear mounting holes (15-M3) |
| Other Features : | Weight | 1.78/1.87Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
LG Display LM215WF9-SSB3 Optical Details
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 77% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
LG Display LM215WF9-SSB3 Backlight Details
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
| Replacement | - | Amount | 14S4P | Position | Edge light type (Bottom side) |
| Lamp Electrical : | Voltage Input | 38.8±2.8V | Current Input | 45/50mA (Typ./Max.) |
| Consumption | 7.0/7.5W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 10035WS-H06D(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
LG Display LM215WF9-SSB3 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 600/740mA (Typ./Max.) |
| Consumption | 3.0/3.75W (Typ./Max.) |
| Interface Features : | Type | Connector | Position | | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS100-L30O-C23 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 484.5(W)×284.4(H)×11.1(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.78/1.87Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM215WF9-SSB3 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 14S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM215WF9-SSB3 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
|
|

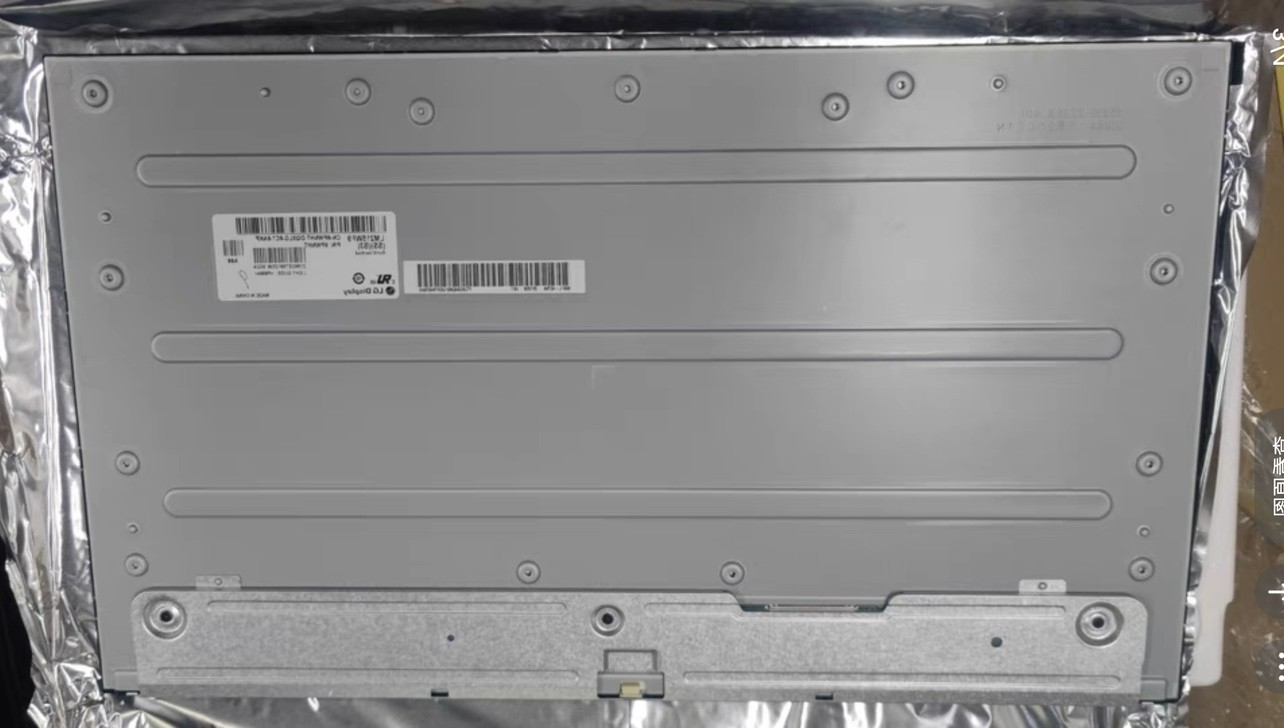

LM215WF9-SSB3 LG Display 21.5" 1920(RGB)×1080, 250 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY Images
|
