AUO M270HVN02.0 Application Details
| Basic Information : | Brand | | Model | M270HVN02.0 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 27.0" | Alias | 97.27M06.000/00A/00B/0BB |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | | Vibration | 1.5G (14.7 m/s²) |
AUO M270HVN02.0 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.10375×0.31125 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.31125×0.31125 (H×V) [81PPI] |
| Mechanical Size : | Active Area(mm) | 597.6(H) × 336.15(V) | Bezel Area(mm) | 601.6(H) × 340.15(V) |
| Outline Dim.(mm) | 613.6(H) × 356.85(V) | Depth(mm) | 7.2/10.5 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Spec : | Weight | 2.18Kgs (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO M270HVN02.0 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 3000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AMVA, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 7/5 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO M270HVN02.0 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.93/1.22A (Typ./Max.) |
| Consumption | 4.65/5.58W (Typ./Max.) |
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSCKT2407P30HB | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A |
AUO M270HVN02.0 Backlight Details
| Backlight Features: | Shape | 4 strings | Type | WLED | Position | Edge light type (Bottom side) |
| Replacement | - | Quantity | 15S4P | Life Time | 40K(Min.) (Hours) |
| Lamp Electrical : | Voltage Supply | 43.5/46.5/51V (Min./Typ./Max.) | Current Supply | 80/84mA (Typ./Max.) |
| Consumption | 14.88W /16.32W (Typ./Max.) |
| Interface Features : | Position | | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3707K-S06N-21R | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC |
| Backlight Driver : | No |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.6(W)×336.15(H) mm, outline size of 613.6(W)×356.85(H)×10.5(D) mm, viewing area size of 601.6(W)×340.15(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.18Kgs (Typ.). As a AMVA, Normally Black, Transmissive LCM product, M270HVN02.0 can provides 300 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 7/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 15S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 40K hours, external backlight driver is additionally needed. M270HVN02.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
|
|

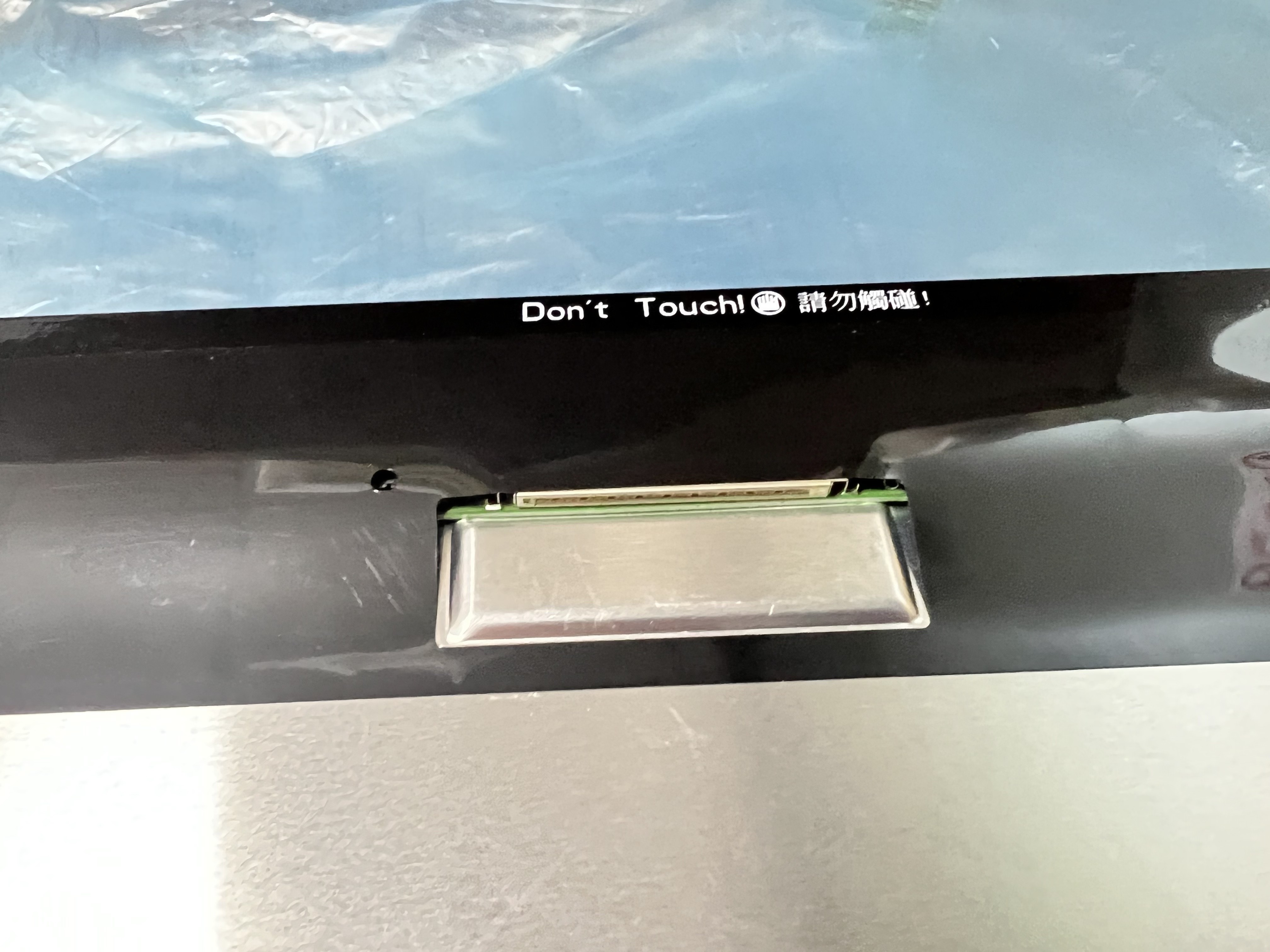

M270HVN02.0 AUO 27.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY Images
|
