AUO M238HAN01.0 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
| | M238HAN01.0 | a-Si TFT-LCD , LCM | - |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | 0 ~ 50 °C | -20 ~ 60 °C |
AUO M238HAN01.0 Mechanical Features
| Panel Size : | 23.8 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0915×0.2745 mm | 0.2745×0.2745 mm [92PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 527.04×296.46 mm | 530.2×299.6 mm | 543×317.4 mm | 8.4/11.7 (Typ./Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Normal bezel |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Panel Cover | Weight | Surface |
| - | 2.28±0.08Kgs | Antiglare, Hard coating (3H) |
AUO M238HAN01.0 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 250 cd/m² (Typ.) | AHVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 75% | 97% | 75% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 77% | 56% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
AUO M238HAN01.0 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 640/760mA (Typ./Max.) | 5.0V (Typ.) | 3.2/3.8W (Typ./Max.) |
| Interface Features : | Position | Type | Interface |
| | Connector | LVDS (2 ch, 8-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STM | MSBKT2407P30HB | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A |
AUO M238HAN01.0 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type (Bottom side) | 4 strings | 4 strings | 30K(Min.) | - |
| WLED Electrical : | Current Input | Voltage Input | Consumption |
| 70/77mA (Typ./Max.) | 54.4±6.8V | 15.2/17.1W (Typ./.Max.) |
| Interface Features : | Position | Type | WLED Driver |
| | Connector | No |
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3707K-S06N-21R | 1 pcs | 1.0 mm | 6 pins | BLE-6PINS-CCAACC |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 543(W)×317.4(H)×11.7(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.28±0.08Kgs. As a AHVA, Normally Black, Transmissive LCM product, M238HAN01.0 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M238HAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
|
|

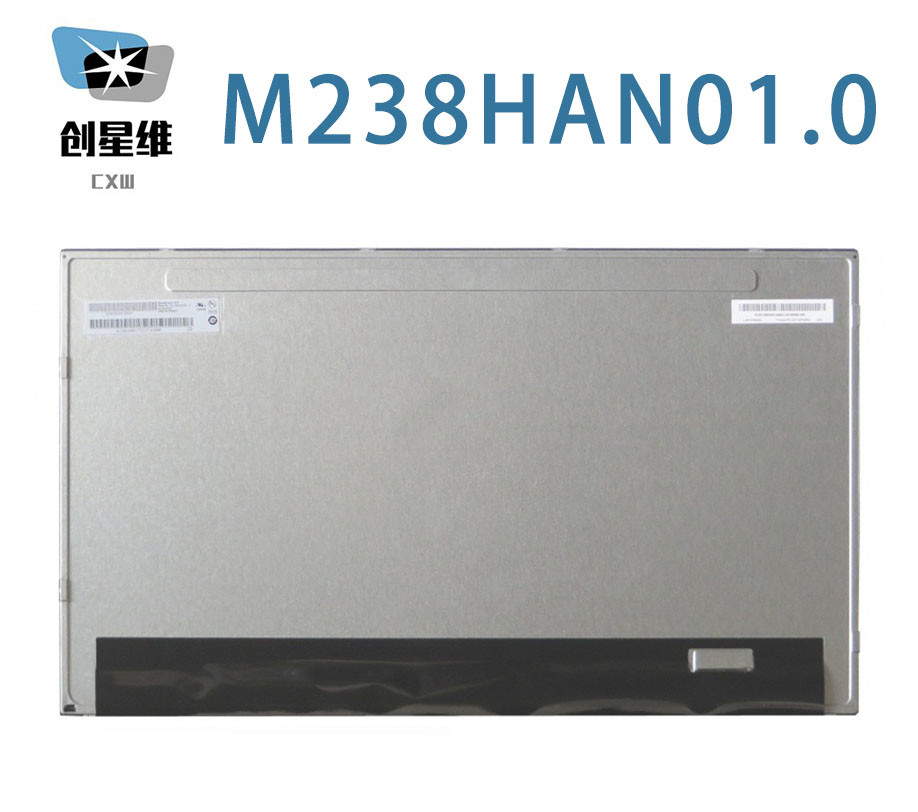

M238HAN01.0 AUO 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
