LG Display LC550EQQ-SMA4 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | LC550EQQ-SMA4 | a-Si TFT-LCD , CELL | LC550EQQ (SM)(A4) |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 65 °C |
LG Display LC550EQQ-SMA4 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 0 | 89/89/89/89 (Min.)(CR≥10) | 6 (Typ.)(G to G) |
| Best View on | Display Mode | Contrast Ratio |
| Symmetry | IPS, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 1.07B (8-bit + Dithering) | - |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 68% | 85% | 70% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 69% | 51% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Transmissivity : | 5.49% (Typ.)(with Polarizer) |
LG Display LC550EQQ-SMA4 Mechanical Features
| Panel Size : | 55" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.315×0.315 [80PPI] | 0.105×0.315 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 1209.6(H) × 680.4(V) | - | 1221.4(H) × 694.8(V) | 1.2 (Typ.) mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Plate Thickness |
| Flat Rectangle | Landscape type | 16:9 (H:V) | - |
| Other Detail : | Weight | Panel Cover | Treatment |
| 2.50/2.63Kgs (Typ./Max.) | - | Antiglare (Haze 3%), Hard coating (2H) |
LG Display LC550EQQ-SMA4 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 12V (Typ.) | 0.93/1.21A (Typ./Max.) | 11.15/14.5W (Typ./Max.) |
| Interface Features : | Position | Signal | Type |
| - | V-by-One 8 lane | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| | 0503HR-H51H | 0.5 mm | 51 pins | 1 pcs |
LG Display LC550EQQ-SMA4 Packing Features
| Box Type | Pcs/Box | Box Qty | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
| EPS Box | 20 | 1 | N/A | N/A | N/A | |
| Pallet | 160 | 8 | 1400×900×1185 | N/A | 1.4931 |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1221.4(W)×694.8(H)×1.2(D) mm, with surface treament of Antiglare (Haze 3%), Hard coating (2H), net weight of 2.50/2.63Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive CELL product, LC550EQQ-SMA4 can provides 1300:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight. LC550EQQ-SMA4 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12V (Typ.)
|
|

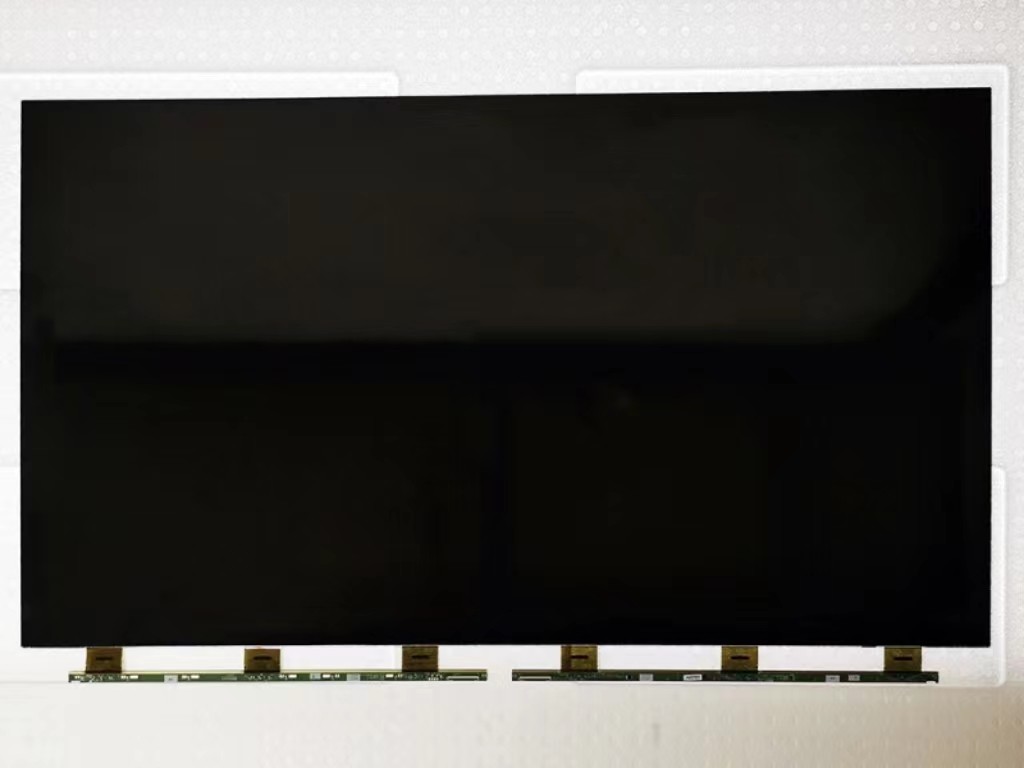

LC550EQQ-SMA4 LG Display 55" 3840(RGB)×2160, 0 cd/m² INDUSTRIAL LCD DISPLAY Images
|
