OPTREX DMF5010NBU-FW Application Details
| Basic Detail : | Manufacturer | | Model Name | DMF5010NBU-FW |
| Panel Type | STN-LCD , LCM | Another Name | DMF-5010NBU-FW |
| Panel Size | 5.2 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 10 ~ 40 °C | ST Temperature | -20 ~ 60 °C |
OPTREX DMF5010NBU-FW Optical Details
| Basic Information : | Luminance | 400 cd/m² (Min.) | Contrast Ratio | 7 : 1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 70/260 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 50/50/50/35 (Typ.)(CR≥2) | Operating Mode | STN, Blue mode, Transmissive |
| Color Performance : | Chromaticity | - | Support Color | Monochrome |
OPTREX DMF5010NBU-FW Mechanical Details
| Pixel Features : | Number of Pixel | 240×64 | Arrangement | Rectangle |
| Dot Pitch(W×H) | 0.53×0.53 mm | Pixel Pitch(W×H) | 0.53×0.53 mm [47PPI] |
| Physical Size : | Active Viewing | 127.2(W)×33.9(H) mm | Overall Dim. | 200(W)×66(H) mm |
| Bezel Opening | 132.0(W)×39.0(H) mm | Overall Depth | 23.0 (Max.) mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | >3:1 | Shape Style | |
| Other Detail : | Mass | 250g (Max.) | Surface |
OPTREX DMF5010NBU-FW Interface Details
| Signal Electrical : | Input Current | 8.2mA (Typ.) | Input Voltage | 5.0V (Typ.) |
| Consumption | - | Signal Interface | 8-bit parallel |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| | | 1 pcs | | 20 pins |
OPTREX DMF5010NBU-FW Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type |
| Exchange | - | Amount | 1 pcs | Life | 15K(Typ.) (Hours) |
| Lamp Electrical : | Input Current | 5.0±1mA | Input Voltage | 270V (Typ.) |
| Frequency | - | Turn-on Voltage | 900V (Typ.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| | | 1 pcs | | 4 pins | BLL-4PINS-HNNL |
| Backlight Driver : | No |
whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 127.2(W)×33.9(H) mm, outline size of 200(W)×66(H)×23(D) mm, viewing area size of 132.0(W)×39.0(H) mm, net weight of 250g (Max.). As a STN, Blue mode, Transmissive LCM product, DMF5010NBU-FW can provides 400 cd/m² display brightness 7:1 transimissive contrast ratio, 50/50/50/35 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 70/260 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. DMF5010NBU-FW utilizes 8-bit parallel as it's signal inputting systerm, which connected by 20 pins with power supply voltage of 5.0V (Typ.).
|
|

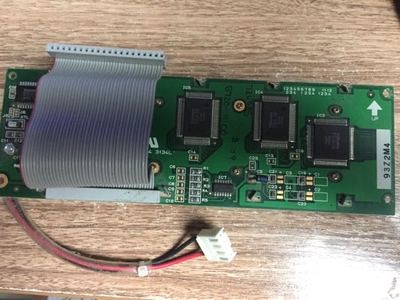

DMF5010NBU-FW OPTREX 5.2" 240×64 47PPI 400 cd/m² INDUSTRIAL LCD DISPLAY Images
|
