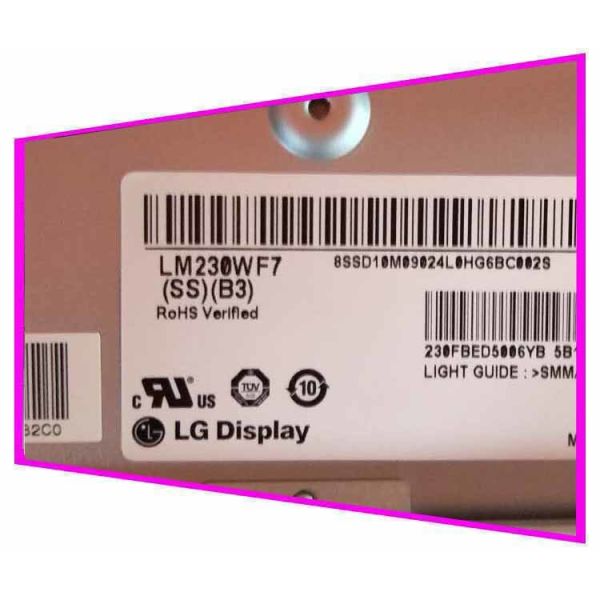

LM230WF7-SSB1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Name: LM230WF7SSB1 LG Display 230quot 1920RGB1080 250 cdm INDUSTRIAL LCD DISPLAY
Brand: LG DISPLAY
Price: 1 USD

China LM230WF7-SSB1 LG Display 23.0" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG DISPLAY

Model Number : LM230WF7-SSB1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM230WF7-SSB1

BRAND : LG DISPLAY

SIZE : 23.0INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 95PPI

VIEWING ANGLEG : 89/89/89/89 (Min.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM230WF7-SSB1 Application Details

Basic Detail :	Manufacturer LM230WF7-SSB1Model Name Panel Type a-Si TFT-LCD , LCM Another Name LM230WF7 (SS)(B1) Panel Size 23.0 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG Display LM230WF7-SSB1 Optical Details

Basic Detail :	Luminance 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14 (Typ.)(G to G) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 73% sRGB 96% coverage Adobe RGB 74% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM230WF7-SSB1 Mechanical Details

Pixel Features :	Number of Pixel 1920(RGB)×1080, FHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0884×0.2652 mm Pixel Pitch(W×H) 0.2652×0.2652 mm [95PPI]
Physical Size :	Active Viewing 509.184(W)×286.416(H) mm Overall Dim. 517.2(W)×302.8(H) mm Bezel Opening - Overall Depth 8.55/12.7 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style 3-side borderless
Touchscreen :	TP Controller With touch controller TP Interface USB Touch Points 10 points TP Technology In-Cell Touch
Fixation :	Rear mounting holes (13-M3)
Other Detail :	Mass 1.81Kgs (Typ.) Surface Antiglare, Hard coating (3H)

LG Display LM230WF7-SSB1 Interface Detail

Signal Electrical :	Input Current 555/638mA (Typ./Max.) Input Voltage 5.0V (Typ.) Consumption 2.78/3.19W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment UJU IS100-L30B-C23 1.0 mm 30 pins 1 pcs

LG Display LM230WF7-SSB1 Lightting Details

Lamp Features :	Lamp Type WLED Amount 14S4P Position Edge light type Exchange - Lamp Shape 4 strings Lamp Life 30K(Min.) (Hours)
Lamp Electrical :	Input Voltage 41.6±2.8V Input Current 60/65mA (Typ./Max.) Consumption 10.0/10.7W (Typ./Max.)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST SM06B-SHJH(HF) 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Backlight Driver :	No

LG Display LM230WF7-SSB1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	10 pcs / box	-	625×360×382 mm
