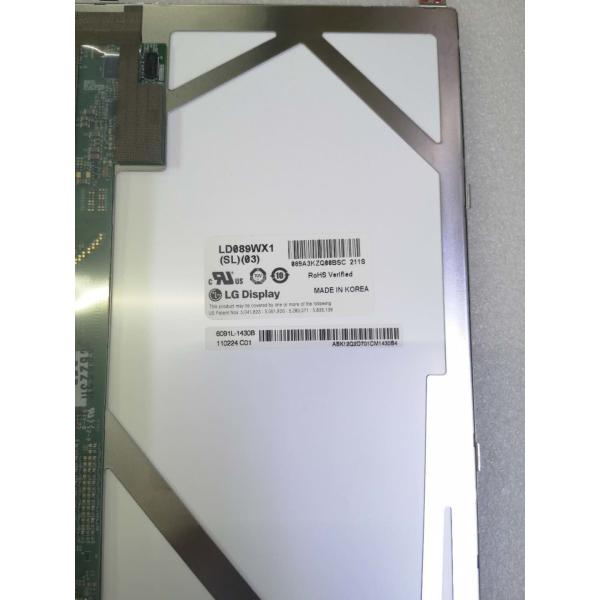

LD089WX1-SL03 LG Display 8.9" 1280(RGB)×768 370 cd/m² INDUSTRIAL LCD DISPLAY

Name: LD089WX1SL03 LG Display 89quot 1280RGB768 370 cdm INDUSTRIAL LCD DISPLAY
Brand: LG DISPLAY
Price: 1 USD

China LD089WX1-SL03 LG Display 8.9" 1280(RGB)×768 370 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG DISPLAY

Model Number : LD089WX1-SL03

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LD089WX1-SL03

BRAND : LG DISPLAY

SIZE : 8.9INCH

BRIGHTNESS : 370CD/M2

Lamp Type : WLED

RESOLUTION : 1280(RGB)×768 (WXGA) 167PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LD089WX1-SL03 Application Details

Basic Info :	Panel Brand		Panel Model	LD089WX1-SL03
	Diagonal Size	8.9"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	LD089WX1 (SL)(03)
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C

LG Display LD089WX1-SL03 Mechanical Details

Pixel Features :	Pixel Format	1280(RGB)×768 [WXGA]	Dot Pitch	0.0505×0.1515 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1515×0.1515 mm (H×V) [167PPI]
Mechanical Size :	Display Area	193.92×116.352 mm (H×V)	Bezel Area	196.92×119.35 mm (H×V)
Mechanical Size :	Outline Dim.	207×130.4 mm (H×V)	Outline Depth	3.2 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	15:9 (H:V)	Shape Style
Holes & Brackets :	Face mounting holes (4 pcs) on left, right slugs
Other Features :	Weight	137/150g (Typ./Max.)	Surface	Glare (Haze 0%)

LG Display LD089WX1-SL03 Optical Details

Basic Information :	Brightness	370 cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Optical Mode	S-IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	35 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.296; Wy:0.325	Color Numbers	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	7524K	White Uniformity	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	50%	sRGB	70% coverage
	Adobe RGB	52% coverage	DCI-P3	52% coverage
	Rec.2020	37% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LD089WX1-SL03 Backlight Details

Back-light Features:	Lamp Shape	4 strings	Lamp Type	WLED	Life Time	-
Back-light Features:	Replacement	-	Amount	7S4P	Position	Edge light type
Lamp Electrical :	Voltage Input	22.75/24.85V (Typ./Max.)		Current Input	20/21mA (Typ./Max.)
Lamp Electrical :	Consumption	1.82/1.99W (Typ./Max.)
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	No

LG Display LD089WX1-SL03 Interface Details

Signal Systerm :	LVDS (1 ch, 8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	256/281mA (Typ./Max.)
Signal Electrical :	Consumption	0.84/0.93W (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :			0.4 mm	30 pins	1 pcs	LVDS-30P1C8B-310A

LG Display LD089WX1-SL03 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	48 pcs / box	-	355×468×310 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
