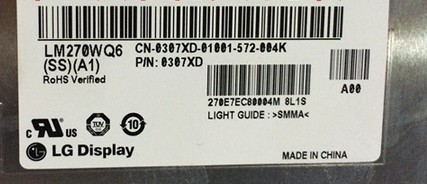

27.0" 108PPI 2560×1440 Square Tft Panel 300cd/m2 LM270WQ6-SSA1

Name: 270quot 108PPI 25601440 Square Tft Panel 300cdm2 LM270WQ6SSA1
Brand: LG DISPLAY
Price: 1 USD

China 27.0" 108PPI 2560×1440 Square Tft Panel 300cd/m2 LM270WQ6-SSA1 wholesale

Brand Name : LG DISPLAY

Model Number : LM270WQ6-SSA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM270WQ6-SSA1

BRAND : LG DISPLAY

SIZE : 27.0INCH

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 2560(RGB)×1440, Quad-HD, 108PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM270WQ6-SSA1 Application Details

Basic Detail :	Manufacturer		Model Name	LM270WQ6-SSA1
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LM270WQ6 (SS)(A1)
	Panel Size	27.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LM270WQ6-SSA1 Optical Details

Basic Information :	Luminance	300 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.07B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	109%	sRGB	100% coverage
	Adobe RGB	100% coverage	DCI-P3	96% coverage
	Rec.2020	81% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM270WQ6-SSA1 Mechanical Details

Pixel Features :	Number of Pixel	2560(RGB)×1440 [Quad-HD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.077×0.231 mm	Pixel Pitch(W×H)	0.2331×0.2331 mm [108PPI]
Physical Size :	Active Viewing	596.736(W)×335.664(H) mm	Overall Dim.	608.8(W)×355.3(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	11.5/15.0 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style	3-side borderless
Fixation :	Rear mounting holes (9-M3)
Other Detail :	Mass	2.60/2.73Kgs (Typ./Max.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM270WQ6-SSA1 Interface Details

Signal Electrical :	Input Current	0.8/1.0A (Typ./Max.)		Input Voltage	10.0V (Typ.)
Signal Electrical :	Consumption	8.0/10.9W (Typ./Max.)	Signal Interface	LVDS (4 ch, 10-bit)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
	UJU	IS050-C51B-C39-A	1 pcs	0.5 mm	51 pins
	UJU	IS050-C41B-C39-A	1 pcs	0.5 mm	41 pins

LG Display LM270WQ6-SSA1 Lightting Details

Lamp Features:	Lamp Shape	4 strings × 2CN	Lamp Type	GB-r LED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	4 strings × 2CN	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	70/70mA (Typ.)(I-G/I-GB)		Input Voltage	50.8/56.0V (Typ.)(V_G/V-B)
Lamp Electrical :	Consumption	29.9/32.1W (Typ./Max.)
Interface Features :	Position		Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BM06B-SHJS-TB(HF)	2 pcs	1.0 mm	6 pins	BLE-6PINS-CCAACC
Backlight Driver :	No

LG Display LM270WQ6-SSA1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	10 pcs / box	700×355×430 mm	-

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
