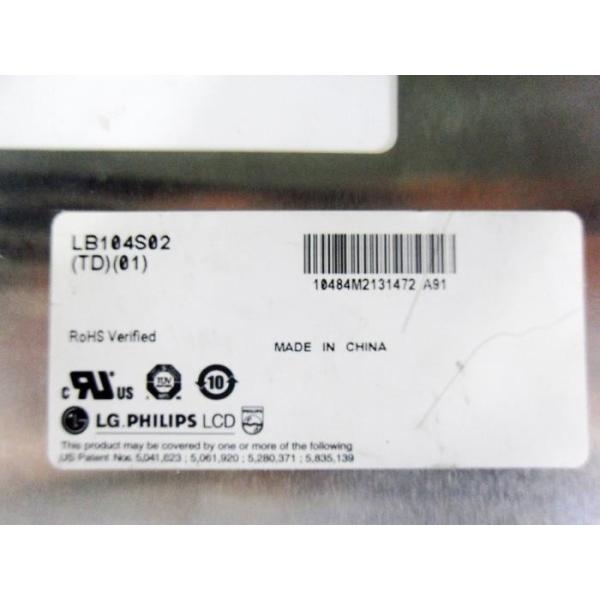

LB104S02-TD01 LG Display 10.4" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Name: LB104S02TD01 LG Display 104quot 800RGB600 250 cdm INDUSTRIAL LCD DISPLAY
Brand: LG DISPLAY
Price: 1 USD

China LB104S02-TD01 LG Display 10.4" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG DISPLAY

Model Number : LB104S02-TD01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LB104S02-TD01

BRAND : LG DISPLAY

SIZE : 10.4 INCH

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 800(RGB)×600 (SVGA) 96PPI

VIEWING ANGLEG : 65/65/55/50 (Typ.)(CR≥10)

TEMPERATURE RANGE : Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C

Contact Now

LG Display LB104S02-TD01 Application Details

Basic Information :	Brand		Model	LB104S02-TD01
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	10.4"	Alias	LB104S02 (TD)(01)
Environment :	Storage Temp.	-20 ~~ 70 °C	Operating Temp.	-10 ~~ 60 °C

LG Display LB104S02-TD01 Mechanical Details

Pixel Features :	Resolution	800(RGB)×600, SVGA	Dot Pitch(mm)	0.088×0.264 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.264×0.264 (H×V) [96PPI]
Mechanical Size :	Active Area(mm)	211.2(H) × 158.4(V)	Bezel Area(mm)	214.5(H) × 161.0(V)
Mechanical Size :	Outline Dim.(mm)	234.7(H) × 178.6(V)	Depth(mm)	6.8±0.3
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Other Spec :	Weight	420/450g (Typ./Max.)	Treatment	Antiglare

LG Display LB104S02-TD01 Optical Details

Basic Information :	Luminance(cd/m²)	250 (Typ.)	Contrast Ratio	400:1 (Typ.) (Transmissive)
	Viewing Angle	65/65/55/50 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	12 o'clock	Response(ms)	6/19 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.300; Y:0.330	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	7203K	White Uniformity	1.25/1.40 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	55%	sRGB	76% coverage
	Adobe RGB	58% coverage	DCI-P3	57% coverage
	Rec.2020	41% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LB104S02-TD01 Interface Details

Signal Electrical :	Voltage Supply	3.3/9.32/17.55/-4.99V (Typ.)(VCC/AVDD/VGH/VGL)		Current Supply	5/38/0.80/0.32mA (Typ.)(ICC/IDD/IGH/IGL)
Signal Type :	Parallel RGB (1 ch, 6-bit)			Signal Voltage	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	-		Type	FPC
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :			2 pcs	30 pins	0.5 mm

LG Display LB104S02-TD01 Backlight Details

Backlight Features:	Shape	Straight	Type	CCFL	Position	Edge light type (Top side)
Backlight Features:	Replacement	-	Quantity	1 pcs	Life Time	20K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	800±80V		Current Supply	6.0/6.5/7.0mA (Min./Typ./Max.)
	Frequency	40/60/80KHz (Min./Typ./Max.)		Startup Voltage	1500/2200V (Max.)(Ta=+25/-10℃)
	Consumption	5.2/5.8W (Typ./Max.)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	BHSR-02VS-1	1 pcs	2 pins	3.5 mm	BLL-2PINS-HL
Backlight Driver :	No

LG Display LB104S02-TD01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	20 pcs / box	-	425×246×310 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
