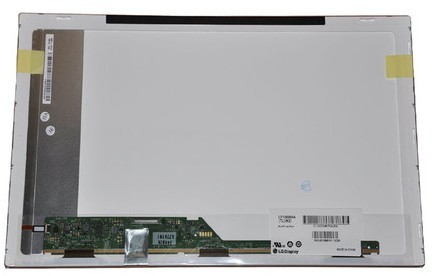

LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

Name: LP156WH4TLA1 LG Display 156quot 1366RGB768 220 cdm INDUSTRIAL LCD DISPLAY
Brand: LG DISPLAY
Price: 1 USD

China LP156WH4-TLA1 LG Display 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG DISPLAY

Model Number : LP156WH4-TLA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP156WH4-TLA1

BRAND : LG DISPLAY

SIZE : 15.6 inch

BRIGHTNESS : 220CD/M2

Lamp Type : WLED

RESOLUTION : 1366(RGB)×768, WXGA, 100PPI

VIEWING ANGLEG : 40/40/10/30 (Min.)(CR≥10

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP156WH4-TLA1 Application Details

Basic Info :	Panel Brand LP156WH4-TLA1 64 CompatiblePanel Model Diagonal Size 15.6" Application a-Si TFT-LCD , LCMPanel Type Model Alias LP156WH4 (TL)(A1), LGD02DC
Reliability :	Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C

LG Display LP156WH4-TLA1 Mechanical Details

Pixel Features :	Pixel Format 1366(RGB)×768, WXGA Dot Pitch 0.084×0.252 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.252×0.252 mm (H×V) [100PPI]
Mechanical Size :	Display Area 344.232×193.536 mm (H×V) Bezel Area 350.0×197.1 mm (H×V) Outline Dim. 359.3×209.5 mm (H×V) Outline Depth 5.2/5.5 (Typ./Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style Wedge (PCBA Bent, T≥5.2mm)
Holes & Brackets :	Side mounting holes (8-M2) on left, right bezel
Other Features :	Weight 450g (Max.) Surface Glare (Haze 0%), Hard coating (3H)

LG Display LP156WH4-TLA1 Optical Details

Basic Information :	Brightness 220 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) (Transmissive) Viewing Angle 40/40/10/30 (Min.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 16 (Typ.)(Tr+Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K (6-bit) Color Temperature 6485K Uniformity 1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio 60% sRGB 75% coverage Adobe RGB 59% coverage DCI-P3 62% coverage Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP156WH4-TLA1 Backlight Details

Back-light Features :	Lamp Type WLED Amount 4 strings Life Time 15K(Min.) (Hours) Replacement - Lamp Shape 4 strings Position Edge light type
Interface Features :	Type Included in panel signal interface Position - Lamp Driver With LED Driver
Driver Electrical :	Voltage Input 7.0/12.0/21.0V (Min./Typ./Max.) Current Input 275/290mA (Typ./Max.) Consumption 3.3/3.5W (Typ./Max.)

LG Display LP156WH4-TLA1 Interface Detail

Signal Systerm :	LVDS (1 ch, 6-bit) Logic Voltage -
Signal Electrical :	Voltage Input 3.3V (Typ.) Current Input 275/320mA (Typ./Max.) Consumption 0.9/1.1W (Typ./Max.)
Interface Features :	Type Connector Position
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration UJU IS050-L40B-C10 0.5 mm 40 pins 1 pcs LVDS-40P1C6B-060B

LG Display LP156WH4-TLA1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	22 pcs / box	-	450×370×278 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
