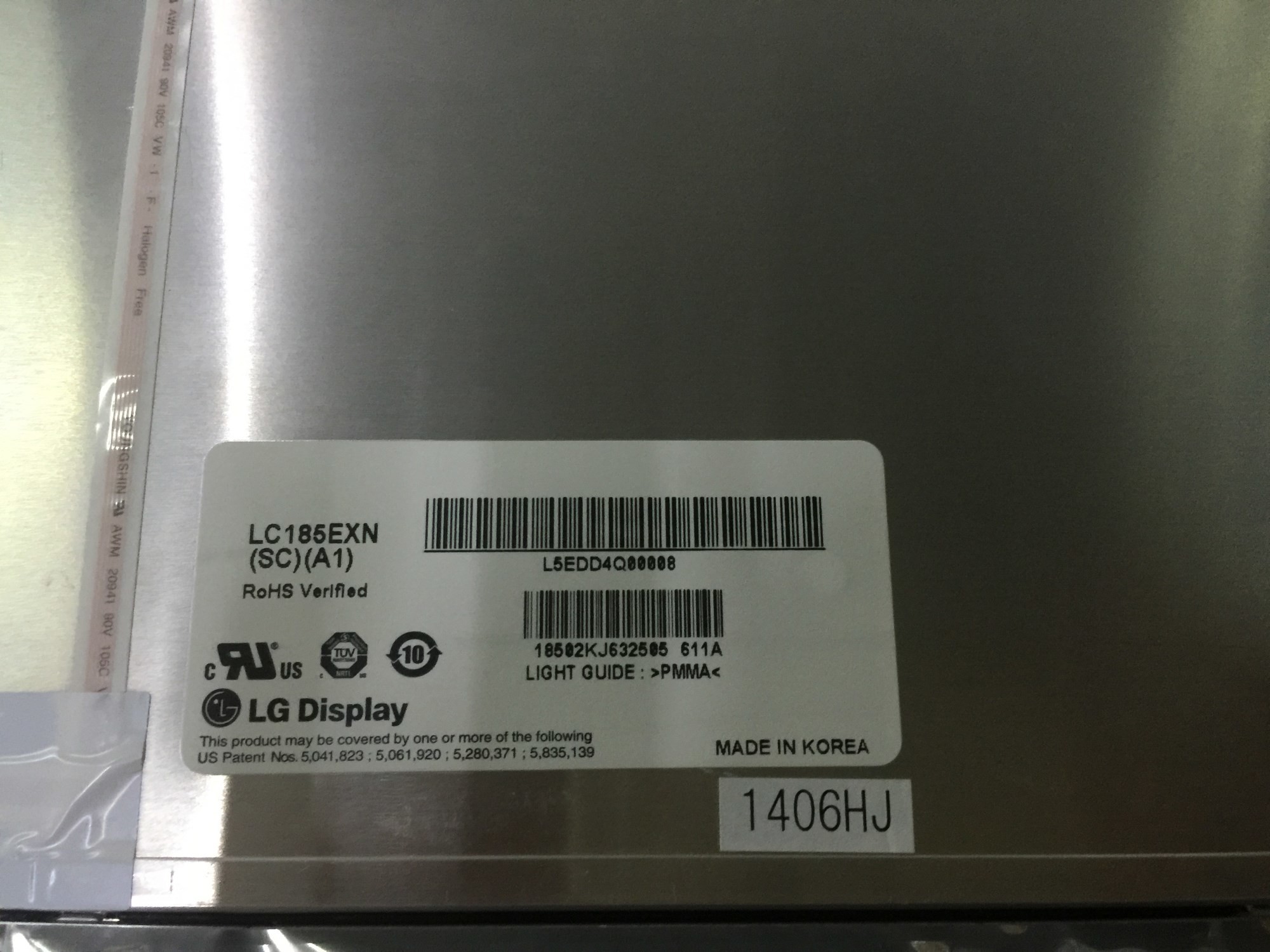

18.5" 1366×768 Industrial TFT Display 84PPI 300cd/m2 LC185EXN-SCA1

Name: 185quot 1366768 Industrial TFT Display 84PPI 300cdm2 LC185EXNSCA1
Brand: LG DISPLAY
Price: 1 USD

China 18.5" 1366×768 Industrial TFT Display 84PPI 300cd/m2 LC185EXN-SCA1 wholesale

Brand Name : LG DISPLAY

Model Number : LC185EXN-SCA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LC185EXN-SCA1

BRAND : LG DISPLAY

SIZE : 18.5 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1366(RGB)×768 [WXGA] 84PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LC185EXN-SCA1 Application Details

Basic Info :	Panel Brand LC185EXN-SCA1Panel Model Diagonal Size 18.5" Application a-Si TFT-LCD , LCMPanel Type Model Alias LC185EXN (SC)(A1)
Reliability :	Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C

LG Display LC185EXN-SCA1 Mechanical Details

Pixel Features :	Pixel Format 1366(RGB)×768, WXGA Dot Pitch 0.100×0.300 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.300×0.300 mm (H×V) [84PPI]
Mechanical Size :	Display Area 409.8×230.4 mm (H×V) Bezel Area 413.4×234.0 mm (H×V) Outline Dim. 430.4×254.6 mm (H×V) Outline Depth 14.9 (Max.) mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight 1.26/1.35Kgs (Typ./Max.) Surface Antiglare (Haze 13%), Hard coating (3H)

LG Display LC185EXN-SCA1 Optical Details

Basic Information :	Brightness 300 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Min.)(CR≥10) Optical Mode S-IPS, Normally Black, Transmissive Viewing Direction Symmetry Response Time 9 (Typ.)(G to G) ms
Color Performance :	Chromaticity Wx:0.279; Wy:0.292 Color Numbers 16.7M (6-bit + Dithering) Color Temperature 9972K Uniformity 1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 69% sRGB 90% coverage Adobe RGB 70% coverage DCI-P3 71% coverage Rec.2020 52% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LC185EXN-SCA1 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time 30K(Min.) (Hours) Replacement - Lamp Shape - Position Edge light type
Interface Features :	Type Connector Position - Lamp Driver With LED Driver
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST SM14B-SRSS-TB 1.0 mm 14 pins 1 pcs
Driver Electrical :	Voltage Input 24.0±1.2V Current Input 0.75/0.85A (Typ./Max.) Consumption 18/20W (Typ./Max.)

LG Display LC185EXN-SCA1 Interface Detail

Signal Systerm :	LVDS (1 ch, 8-bit) Logic Voltage -
Signal Electrical :	Voltage Input 5.0V (Typ.) Current Input 620/806mA (Typ./Max.) Consumption 3.1/4.0W (Typ./Max.)
Interface Features :	Type Connector Position
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration HRS KDF71G-30S-1H 1.0 mm 30 pins 1 pcs LVDS-30P1C8B-262A

LG Display LC185EXN-SCA1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	12 pcs / box	-	550×322×333 mm

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
