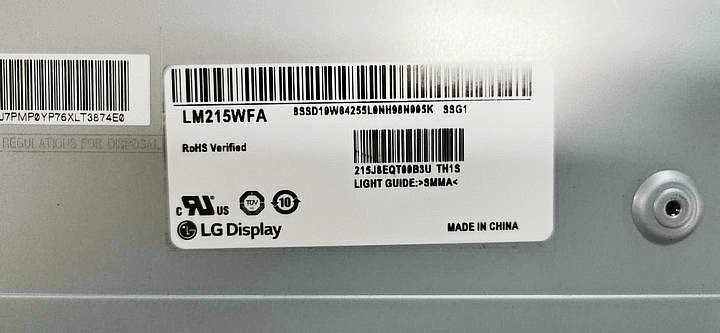

102PPI 21.5" TFT LCD Display 250cd/m2 LM215WFA-SSA3 89/89/89/89 (Typ.)(CR≥10)

Name: 102PPI 215quot TFT LCD Display 250cdm2 LM215WFASSA3 89898989 TypCR10
Brand: LG DISPLAY
Price: 1 USD

China 102PPI 21.5" TFT LCD Display 250cd/m2 LM215WFA-SSA3 89/89/89/89 (Typ.)(CR≥10) wholesale

Brand Name : LG DISPLAY

Model Number : LM215WFA-SSA3

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 350PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM215WFA-SSA3

BRAND : LG DISPLAY

SIZE : 21.5 inch

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 102PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM215WFA-SSA3 Application Details

Basic Information :	Brand		Model	LM215WFA-SSA3
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	21.5"	Alias	LM215WFA (SS)(A3)
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

LG Display LM215WFA-SSA3 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.08265×0.24795 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.24795×0.24795 (H×V) [102PPI]
Mechanical Size :	Active Area(mm)	476.064(H) × 267.786(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	484.5(H) × 284.4(V)	Depth(mm)	8.49/12.7 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	3-side borderless
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Touch Panel :	Touch Points	10 points	Touch Panel	In-Cell Touch
Touch Panel :	TP Controller	With touch controller	Touch Signal	USB
Mounting :	Rear mounting holes (13-M3)
Other Spec :	Weight	1.59/1.67Kgs (Typ./Max.)	Treatment	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM215WFA-SSA3 Optical Details

Basic Information :	Luminance(cd/m²)	250 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	14 (Typ.)(G to G)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	73%	sRGB	96% coverage
	Adobe RGB	74% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM215WFA-SSA3 Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	555/638mA (Typ./Max.)
Signal Electrical :	Consumption	2.78/3.19W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	UJU	IS100-L30B-C23	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-160B

LG Display LM215WFA-SSA3 Backlight Details

Backlight Features:	Shape	4 strings	Type	WLED	Position	Edge light type (Bottom side)
Backlight Features:	Replacement	-	Quantity	13S4P	Life Time	30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	38.1±2.6V		Current Supply	65mA (Typ.)
Lamp Electrical :	Consumption	9.9W (Typ.)
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	SM06B-SHJH(HF)	1 pcs	6 pins	1.0 mm	BLE-6PINS-CCAACC
Backlight Driver :	No

LG Display LM215WFA-SSA3 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	9 pcs / box	-	553×315×360 mm (L×W×H)
