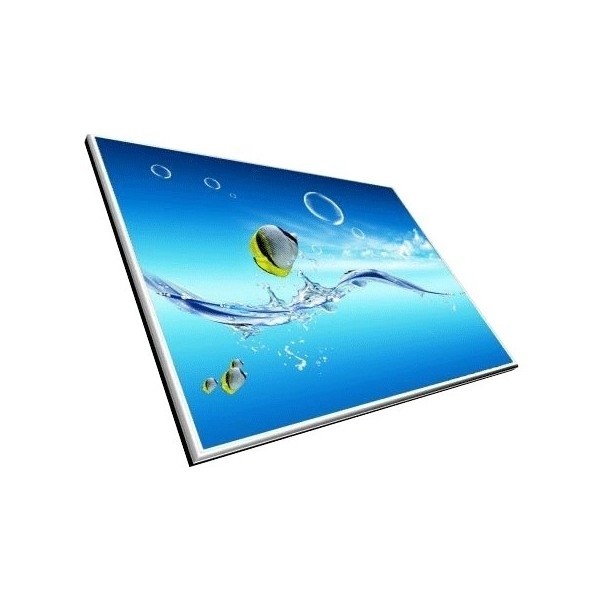

141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1

Name: 141PPI 156quot 300cdm2 LCD Industrial Panel 19201080 LP156WFFSPF1
Brand: LG Display
Price: 1 USD

China 141PPI 15.6" 300cd/m2 LCD Industrial Panel 1920×1080 LP156WFF-SPF1 wholesale

Brand Name : LG Display

Model Number : LP156WFF-SPF1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 120PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP156WFF-SPF1

BRAND : LG Display

SIZE : 15.6 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 141PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP156WFF-SPF1 Application Details

Basic Information :	Brand LP156WFF-SPF1Model Type a-Si TFT-LCD , LCM Used For 15.6 inchScreen Size Alias LP156WFF (SP)(F1), LGD6D06
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C RoHS 1.0G (9.8 m/s²)Vibration

LG Display LP156WFF-SPF1 Mechanical Details

Pixel Features :	Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.05975×0.17925 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :	Active Area(mm) 344.1(H) × 193.59(V) Bezel Area(mm) - Outline Dim.(mm) 350.66(H) × 214.75(V) Depth(mm) 2.6 (Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Slim (PCBA Flat, T≤3.2mm) Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Without
Other Spec :	Weight 310g (Max.) Treatment Antiglare

LG Display LP156WFF-SPF1 Optical Details

Basic Information :	Luminance(cd/m²) 300 (Typ.) Contrast Ratio 1200:1 (Typ.) (Transmissive) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode IPS, Normally Black, Transmissive Best View on Symmetry Response(ms) 30 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.7M (8-bit) Color Temperature 6485K White Uniformity 1.25/1.67 (Max.)(5/13 points)
1931 Color Gamlt :	NTSC Ratio 73% sRGB 98% coverage Adobe RGB 74% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP156WFF-SPF1 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 151/167mA (Typ./Max.) Consumption 0.5/0.55W (Typ./Max.)
Signal Type :	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) Logic Voltage -
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration HRS KN38B-30S-0.5H 0.5 mm 30 pins 1 pcs EDP-30P2L-020A

LG Display LP156WFF-SPF1 Backlight Details

Backlight Features :	Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 15K(Min.) (Hours)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply 5/12/21V (Min./Typ./Max.) Current Supply 278/283mA (Typ./Max.) Consumption 3.34/3.4W (Typ./Max.)

LG Display LP156WFF-SPF1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	35 pcs / box	-	427×327×328 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
