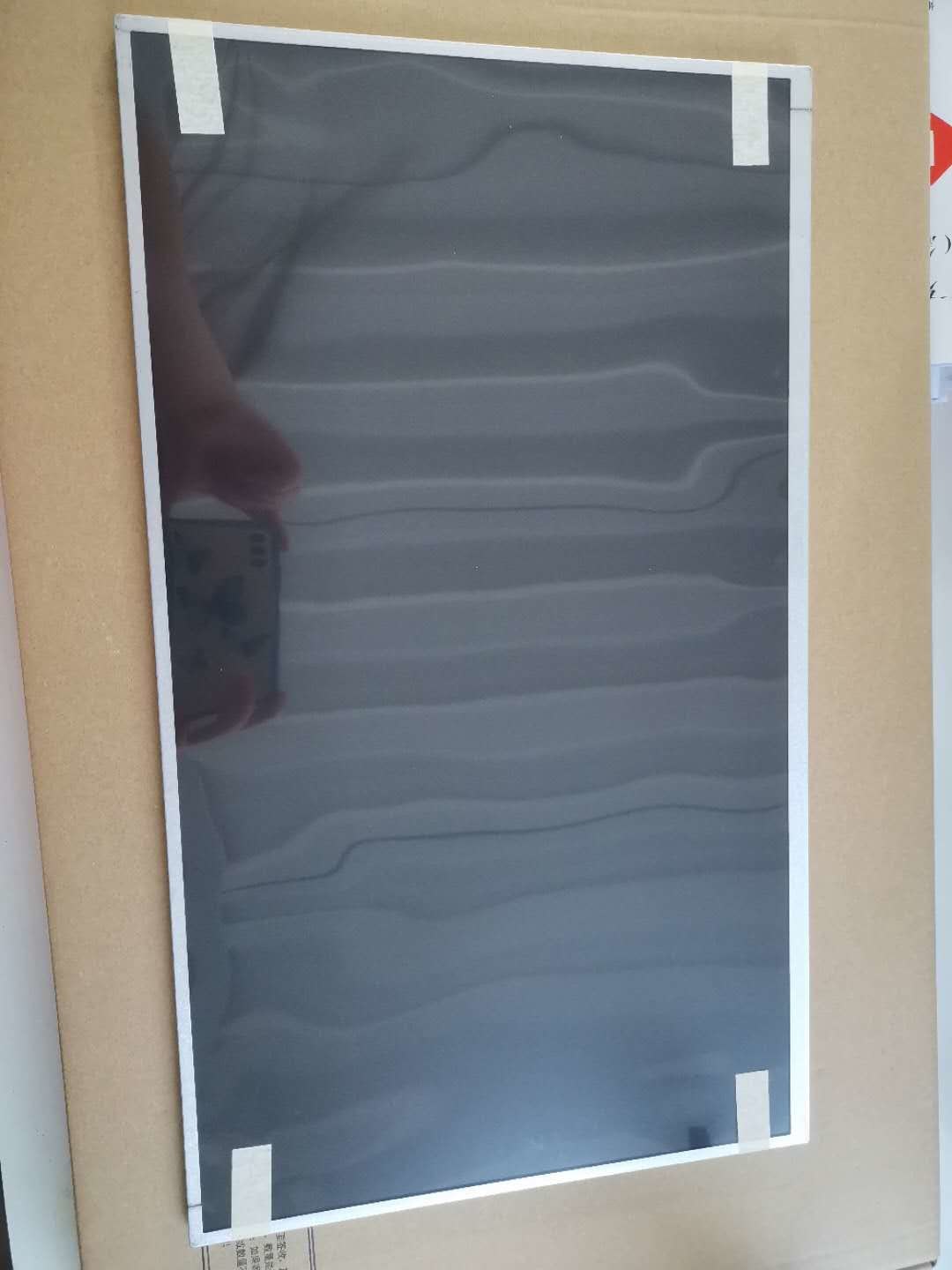

3840×2160 27.0" 163PPI Tft Lcd Screen 800cd/m2 LB270WR1-SPA1 89/89/89/89 (Typ.)(CR≥10)

Name: 38402160 270quot 163PPI Tft Lcd Screen 800cdm2 LB270WR1SPA1 89898989 TypCR10
Brand: LG Display
Price: 1 USD

China 3840×2160 27.0" 163PPI Tft Lcd Screen 800cd/m2 LB270WR1-SPA1 89/89/89/89 (Typ.)(CR≥10) wholesale

Brand Name : LG Display

Model Number : LB270WR1-SPA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 120PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LB270WR1-SPA1

BRAND : LG Display

SIZE : 27.0INCH

BRIGHTNESS : 800CD/M2

Lamp Type : WLED

RESOLUTION : 3840(RGB)×2160, UHD, 163PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LB270WR1-SPA1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LB270WR1-SPA1	a-Si TFT-LCD , LCM	LB270WR1 (SP)(A1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LB270WR1-SPA1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	800 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	1.07B (8-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	82%	100%	81%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	85%	61%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)
Performance :	3D Tech	Sunlight Visibility	Reflectance
Performance :	-	Sunlight Readable

LG Display LB270WR1-SPA1 Mechanical Features

Panel Size :	27.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	3840(RGB)×2160 [UHD]	RGB Vertical Stripe	0.15525×0.15525 [163PPI]	0.05175×0.15525
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	596.16(H) × 335.34(V)	-	649.84(H) × 387.13(V)	12.5/17.3 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)
Mounting :	Rear mounting holes (15-M3)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	3.85/4.05Kgs (Typ./Max.)	With Normal Cover Glass	Anti Fingerprint, Hard coating, Antireflection

LG Display LB270WR1-SPA1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Top and Bottom)	18S4P×2CN	4 strings × 2CN	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	54.7±3.6V		135/140mA (Typ./Max.)			59.1/63.0W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	SM06B-SHJH(HF)	1.0 mm	6 pins	2 pcs	BLE-6PINS-CCAACC

LG Display LB270WR1-SPA1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	10.0V (Typ.)		660/825mA (Typ./Max.)			6.6/8.25W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (4 Lanes)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	LS Mtron	GT05Q-30S-H10-MN	0.5 mm	30 pins	1 pcs	EDP-30P4L-050A

LG Display LB270WR1-SPA1 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	14 pcs / box	-	780×542×455 mm (L×W×H)

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
