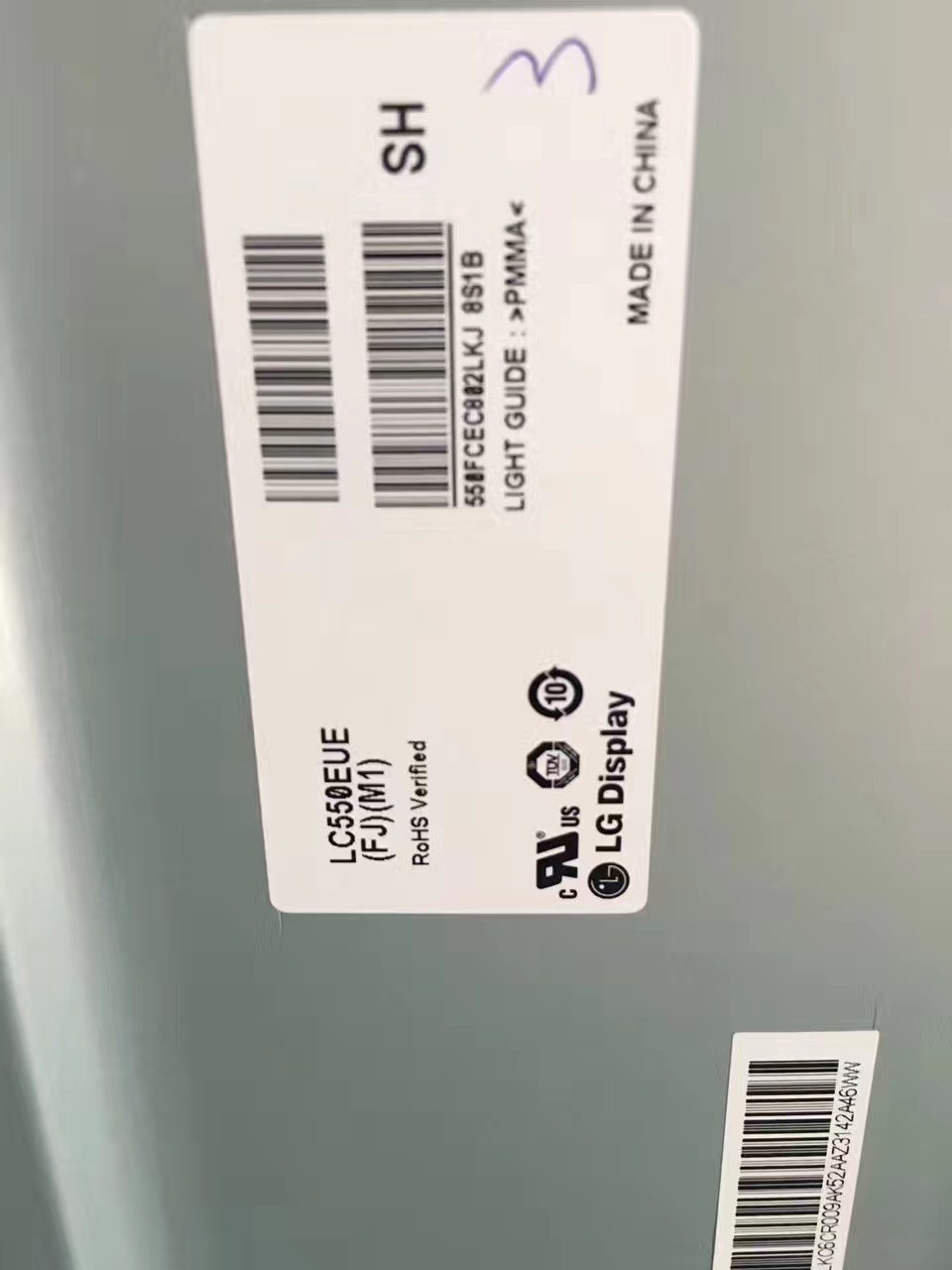

55" 1920×1080 330cd/m2 Lcd Video Panel 40PPI LVDS LC550EUE-FHM3

Name: 55quot 19201080 330cdm2 Lcd Video Panel 40PPI LVDS LC550EUEFHM3
Brand: LG Display
Price: 1 USD

China 55" 1920×1080 330cd/m2 Lcd Video Panel 40PPI LVDS LC550EUE-FHM3 wholesale

Brand Name : LG Display

Model Number : LC550EUE-FHM3

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 120PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LC550EUE-FHM3

BRAND : LG Display

SIZE : 55 inch

BRIGHTNESS : 330CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 40PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LC550EUE-FHM3 Application Details

Basic Detail :	Manufacturer		Model Name	LC550EUE-FHM3
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LC550EUE (SH)(M3)
	Panel Size	55 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LC550EUE-FHM3 Optical Details

Basic Information :	Luminance	330 cd/m² (Typ.)	Contrast Ratio	1200 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	6 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Min.)(CR≥10)	Operating Mode	S-IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.281; Wy:0.288	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	9966K	White Uniformity	1.54 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	71%	sRGB	97% coverage
	Adobe RGB	73% coverage	DCI-P3	73% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LC550EUE-FHM3 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1080 [FHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.210×0.630 mm	Pixel Pitch(W×H)	0.630×0.630 mm [40PPI]
Physical Size :	Active Viewing	1209.6(W)×680.4(H) mm	Overall Dim.	1241.8(W)×717.2(H) mm
Physical Size :	Bezel Opening	1214.6(W)×685.4(H) mm	Overall Depth	17/29.6 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style
Other Detail :	Mass	13.0/13.65Kgs (Typ./Max.)	Surface	Antiglare (Haze 1%), Hard coating (3H)

LG Display LC550EUE-FHM3 Interface Details

Signal Electrical :	Input Current	230/300mA (Typ./Max.)		Input Voltage	12.7V (Typ.)
Signal Electrical :	Consumption	2.9/3.8W (Typ./Max.)	Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	JAE	FI-RE51S-HF	1 pcs	0.5 mm	51 pins

LG Display LC550EUE-FHM3 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	155mA (Typ.)		Input Voltage	175.8/191.5/207.3V (Min./Typ./Max.)
Lamp Electrical :	Consumption	58.4/64.3W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	YEONHO	SMH200-H07M	1 pcs	2.0 mm	7 pins	BLE-7PINS-CNANCNA
Backlight Driver :	No

LG Display LC550EUE-FHM3 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	22 pcs / box	1440×1140×955 mm

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
