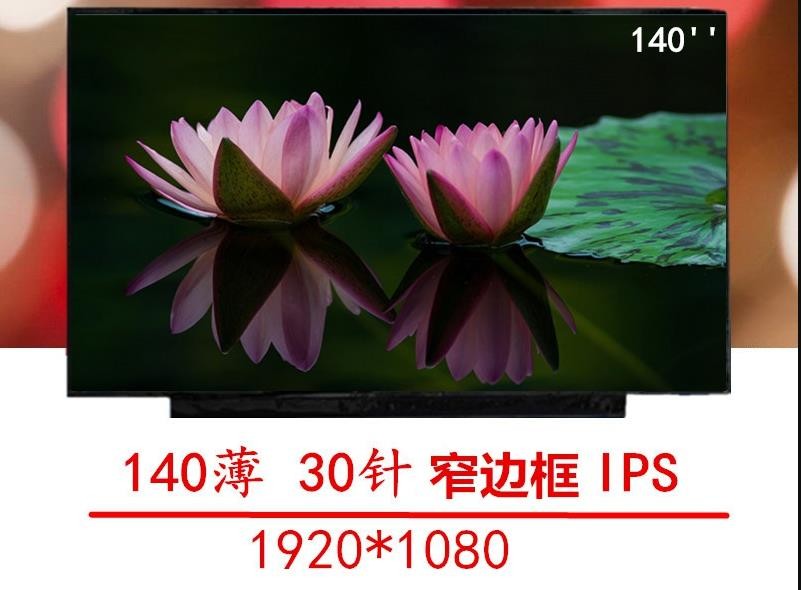

14.0" 1920×1080 300cd/m2 Lcd Video Module 157PPI LP140WF3-SPC1

Name: 140quot 19201080 300cdm2 Lcd Video Module 157PPI LP140WF3SPC1
Brand: LG Display
Price: 1 USD

China 14.0" 1920×1080 300cd/m2 Lcd Video Module 157PPI LP140WF3-SPC1 wholesale

Brand Name : LG Display

Model Number : LP140WF3-SPC1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LP140WF3-SPC1

BRAND : LG Display

SIZE : 14.0 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 157PPI

VIEWING ANGLEG : 80/80/80/80 (Min.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LP140WF3-SPC1 Application Details

Basic Info :	Panel Brand		Panel Model	LP140WF3-SPC1
	Diagonal Size	14.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	LP140WF3 (SP)(C1), LGD0479
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C

LG Display LP140WF3-SPC1 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1080 [FHD]	Dot Pitch	0.0537×0.1611 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1611×0.1611 mm (H×V) [157PPI]
Mechanical Size :	Display Area	309.31×173.99 mm (H×V)	Bezel Area	312.4×177.05 mm (H×V)
Mechanical Size :	Outline Dim.	320.4×205.1 mm (H×V)	Outline Depth	2.8/3.0 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style	Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :	Face mounting holes (8 pcs) on up, down slugs
Other Features :	Weight	290/300g (Typ./Max.)	Surface	Glare (Haze 0%)

LG Display LP140WF3-SPC1 Optical Details

Basic Information :	Brightness	300 cd/m² (Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Min.)(CR≥10)	Optical Mode	AH-IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	90% coverage
	Adobe RGB	70% coverage	DCI-P3	74% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LP140WF3-SPC1 Backlight Details

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	-	Position	Edge light type
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	6.0/12.0/21.0V (Min./Typ./Max.)		Current Input	310/320mA (Min./Max.)
Driver Electrical :	Consumption	3.7/3.8W (Typ./Max.)

LG Display LP140WF3-SPC1 Interface Details

Signal Systerm :	eDP (2 Lanes)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	305/350mA (Typ./Max.)
Signal Electrical :	Consumption	0.9/1.1W (Typ./Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	KN38-30S-0.5H	0.5 mm	30 pins	1 pcs	EDP-30P2L-020A

LG Display LP140WF3-SPC1 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	30 pcs / box	-	468×365×288 mm

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
