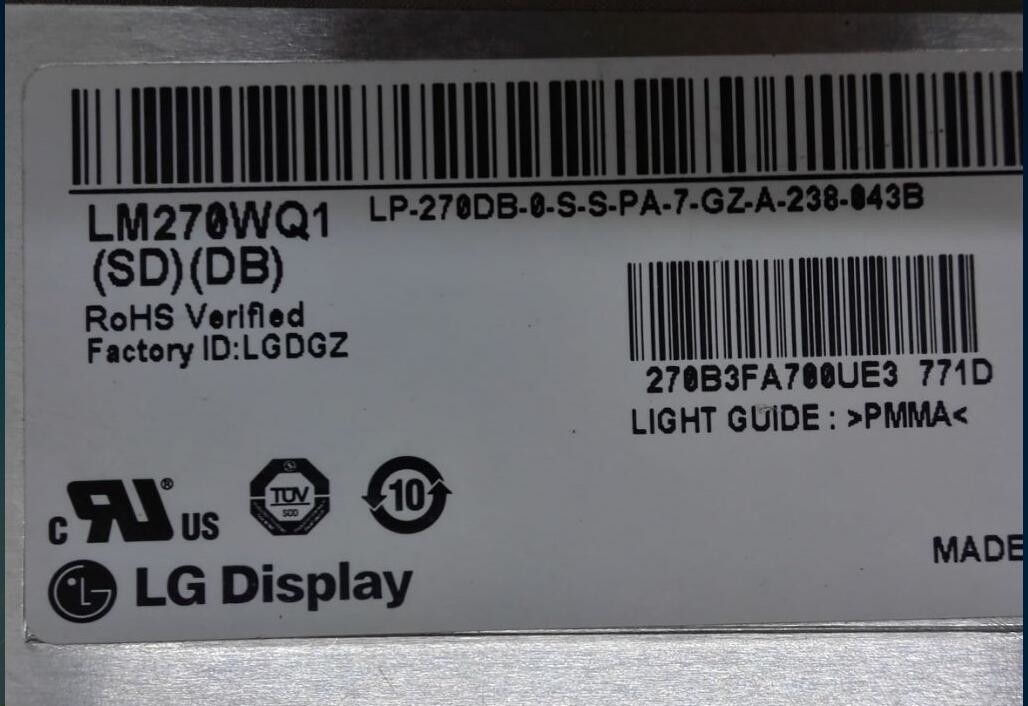

LM270WQ1-SDE3 LG Display 27" 2560(RGB)×1440 420 cd/m² INDUSTRIAL LCD DISPLAY

Name: LM270WQ1SDE3 LG Display 27quot 2560RGB1440 420 cdm INDUSTRIAL LCD DISPLAY
Brand: LG Display
Price: 1 USD

China LM270WQ1-SDE3 LG Display 27" 2560(RGB)×1440 420 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG Display

Model Number : LM270WQ1-SDE3

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM270WQ1-SDE3

BRAND : LG Display

SIZE : 27INCH

BRIGHTNESS : 420CD/M2

Lamp Type : WLED

RESOLUTION : 2560(RGB)×1440 (Quad-HD) 108PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM270WQ1-SDE3 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LM270WQ1-SDE3	a-Si TFT-LCD , LCM	LM270WQ1 (SD)(E3)
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM270WQ1-SDE3 Mechanical Features

Screen Size :	27.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	2560(RGB)×1440, Quad-HD	RGB Vertical Stripe	0.0777×0.2331 mm	0.2331×0.2331 mm [108PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	596.736×335.664 mm	601.7×340.7 mm	630×376.13 mm	14.76/22.3 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	Normal bezel
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	4.60Kgs (Typ.)	-	Glare (Haze 0%), Hard coating (2H)
Holes & Brackets :	Side mounting holes (14-M3) on left, right, up, down bezel

LG Display LM270WQ1-SDE3 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	420 cd/m² (Typ.)	H-IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	6.5/7.5 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6799K	16.7M (8-bit)	X:0.308; Y:0.325
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	77%	100%	77%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	79%	57%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.43 (Max.)(13 points)

LG Display LM270WQ1-SDE3 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type (Left and Right)	39K(Min.)	-	6 strings	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	36±5V		350mA			75.6/80.15W (Typ./Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	E&T	H401K-D12N-12B	1 pcs	12 pins	2.0 mm	BLE-12PINS-ACACACACACAC

LG Display LM270WQ1-SDE3 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	12.0V (Typ.)		900/1035mA (Typ./Max.)			10.8/12.42W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	eDP (4 Lanes)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
	I-PEX	20525-030E-01	1 pcs	30 pins	0.4 mm
	molex	53780-8606	1 pcs	6 pins	1.25 mm

LG Display LM270WQ1-SDE3 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	7 pcs / box	-	747×335×466 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
