LM300WQ5-SLA2 LG Display 30.0" 2560(RGB)×1600 370 cd/m² INDUSTRIAL LCD DISPLAY

Name: LM300WQ5SLA2 LG Display 300quot 2560RGB1600 370 cdm INDUSTRIAL LCD DISPLAY
Brand: LG Display
Price: 1 USD

China LM300WQ5-SLA2 LG Display 30.0" 2560(RGB)×1600 370 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : LG Display

Model Number : LM300WQ5-SLA2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM300WQ5-SLA2

BRAND : LG Display

SIZE : 30.0 inch

BRIGHTNESS : 370CD/M2

Lamp Type : WLED

RESOLUTION : 2560(RGB)×1600, WQXGA, 101PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM300WQ5-SLA2 Application Details

Basic Detail :	Manufacturer		Model Name	LM300WQ5-SLA2
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LM300WQ5 (SL)(A2)
	Panel Size	30.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LM300WQ5-SLA2 Optical Details

Basic Information :	Luminance	370 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	6/6 (Typ.)(Tr/Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	H-IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.07B (10-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	102%	sRGB	100% coverage
	Adobe RGB	98% coverage	DCI-P3	92% coverage
	Rec.2020	76% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM300WQ5-SLA2 Mechanical Details

Pixel Features :	Number of Pixel	2560(RGB)×1600 [WQXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0835×0.2505 mm	Pixel Pitch(W×H)	0.2505×0.2505 mm [101PPI]
Physical Size :	Active Viewing	641.28(W)×400.8(H) mm	Overall Dim.	677.3(W)×436.8(H) mm
Physical Size :	Bezel Opening	646.3(W)×405.8(H) mm	Overall Depth	42.3 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:10	Shape Style	Normal bezel
Other Detail :	Mass	4.60Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

LG Display LM300WQ5-SLA2 Interface Details

Signal Electrical :	Input Current	720±108mA		Input Voltage	18.0V (Typ.)
Signal Electrical :	Consumption	13.0/14.95W (Typ./Max.)	Signal Interface	LVDS (4 ch, 10-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
	UJU	IS050-C51B-C39-A	1 pcs	0.5 mm	51 pins
	UJU	IS050-C41B-C39-A	1 pcs	0.5 mm	41 pins

LG Display LM300WQ5-SLA2 Lightting Details

Lamp Features:	Lamp Shape	Straight	Lamp Type	CCFL	Position	Direct light type
Lamp Features:	Exchange	-	Amount	18 pcs	Life	40K(Min.) (Hours)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	S14B-PH-SM3-TB	1 pcs	2.0 mm	14 pins

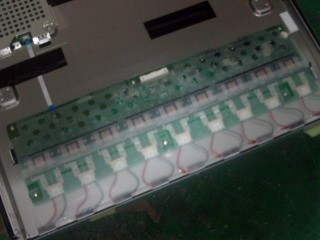

Backlight Driver :	With Inverter
Driver Electrical :	Input Current	4.5/5.4A (Typ./Max.)		Input Voltage	24.0±2.0V
Driver Electrical :	Consumption	108/130W (Typ./Max.)

LG Display LM300WQ5-SLA2 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	5 pcs / box	756×343×515 mm	-

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LM300WQ5-SLA2 LG Display 30.0" 2560(RGB)×1600 370 cd/m² INDUSTRIAL LCD DISPLAY
