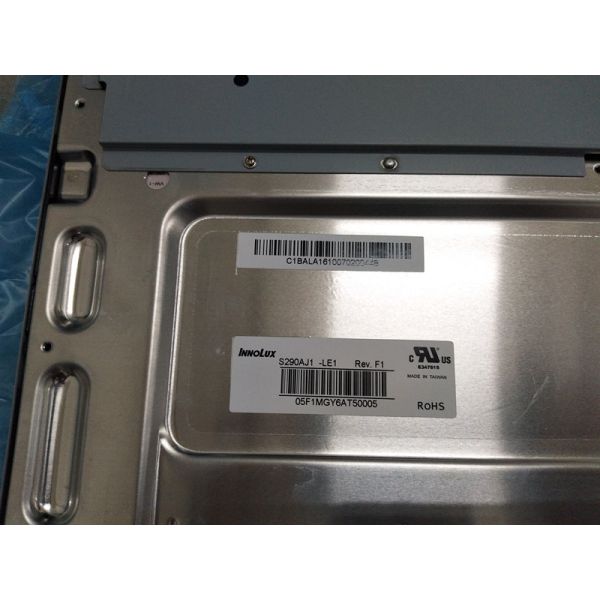

S290AJ1-LE1 Innolux 28.6" 1920(RGB)×540 1000 cd/m² INDUSTRIAL LCD DISPLAY

Name: S290AJ1LE1 Innolux 286quot 1920RGB540 1000 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

China S290AJ1-LE1 Innolux 28.6" 1920(RGB)×540 1000 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : INNOLUX

Model Number : S290AJ1-LE1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : S290AJ1-LE1

BRAND : INNOLUX

SIZE : 28.6" (1/2 cut of 32.0")

BRIGHTNESS : 1000CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×540, 69PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Innolux S290AJ1-LE1 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		S290AJ1-LE1	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

Innolux S290AJ1-LE1 Mechanical Features

Screen Size :	28.6" (1/2 cut of 32.0")
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×540	RGB Vertical Stripe	0.12125×0.36375 mm	0.36375×0.36375 mm [69PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	698.4×196.425 mm	702.4×200.43 mm	731.46×229.49 mm	19.8/30.2 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	>3:1	Landscape / Portrait
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	2.40±0.12g	-	Antiglare (Haze 3.4%)

Innolux S290AJ1-LE1 Mechanical Features

Screen Size :	28.6" (1/2 cut of 32.0")
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×540	RGB Vertical Stripe	0.12125×0.36375 mm	0.36375×0.36375 mm [69PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	698.4×196.425 mm	702.4×200.43 mm	731.46×229.49 mm	19.8/30.2 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	>3:1	Landscape / Portrait
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	2.40±0.12g	-	Antiglare (Haze 3.4%)

Innolux S290AJ1-LE1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	50K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	CviLux	CI0114M1HR0-LA	1 pcs	14 pins	2.0 mm
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	24.0±1.2V		1.55/1.9A (Typ./Max.)

Innolux S290AJ1-LE1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	12.0V (Typ.)		0.29/0.36A (Typ./Max.)			3.3/3.67W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (2 ch, 8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	FCN	WF23-402-5133	1 pcs	51 pins	0.5 mm

Innolux S290AJ1-LE1 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	8 pcs / box	27.1 Kgs	838×573×306 mm (L×W×H)
