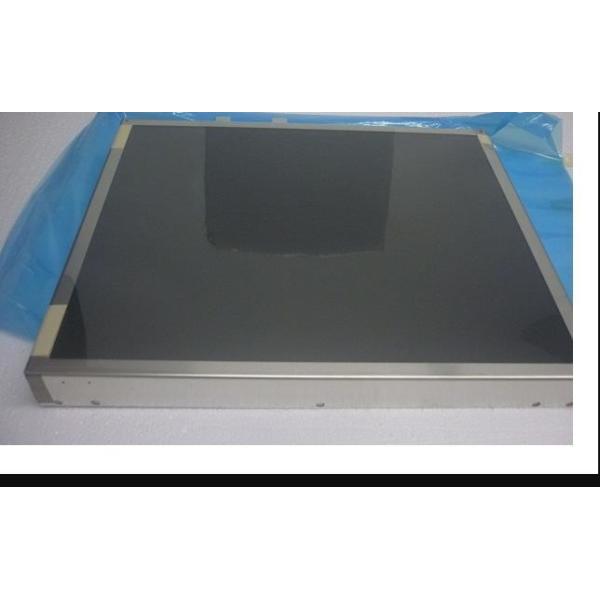

CMO R213T3-L02 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | R213T3-L02 | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
CMO R213T3-L02 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| - | 85/85/85/85 (Typ.)(CR≥20) | 18/18 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| Symmetry | DD-IPS, Normally Black, Transmissive | 850 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7984K | Grayscale (8-bit) | X:0.294; Y:0.309 |
CMO R213T3-L02 Mechanical Features
| Panel Size : | 21.3" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(LCR)×2048 [QSXGA] | LCR Vertical Stripe | 0.165×0.165 [153PPI] | 0.055×0.165 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 422.4(H) × 337.92(V) | 426.4(H) × 344.5(V) | 459.8(H) × 375.3(V) | - |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 5:4 (H:V) |
CMO R213T3-L02 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| CCFL | Direct light type | - | Straight | 50K(Min.) | - |
| CCFL Electrical : | Voltage Supply | Current Supply | Power |
| 740±74V | 6.5±0.5mA | |
| Operating Frequency | Kick-off Voltage |
| 50±4Khz | 1080/1300V (Max.)(Ta=+25/0℃) |
| Interface Features : | Position | Backlight Driver | Type |
| - | With Inverter | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | S12B-PH-SM4-TB(LF)(SN) | 2.0 mm | 12 pins | 1 pcs | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption |
| 12.0±0.6V |
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 65.28W (Typ.) |
CMO R213T3-L02 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 12.0V (Typ.) | 0.94/1.22A (Typ./Max.) | 11.28/14.64W (Typ./Max.) |
| Interface Features : | Position | Signal | Type |
| - | LVDS (4 ch, 8-bit) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSAKT2407P30HA | 1.0 mm | 30 pins | 2 pcs | |
| JAE | IL-Z-8PL-SMTYE | 1.25 mm | 8 pins | 1 pcs | |
| JAE | IL-Z-5PL-SMTYE | 1.25 mm | 5 pins | 1 pcs |
whose pixels are arranged in LCR Vertical Stripe. As for mechanical detail, it features active area of 422.4(W)×337.92(H) mm, outline size of 459.8(W)×375.3(H) mm, viewing area size of 426.4(W)×344.5(H) mm. As a DD-IPS, Normally Black, Transmissive LCM product, R213T3-L02 can provides 850:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 18/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product adopted CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With Inverter. R213T3-L02 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 73 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of R213T3-L02 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with CMO or it's distributor.
