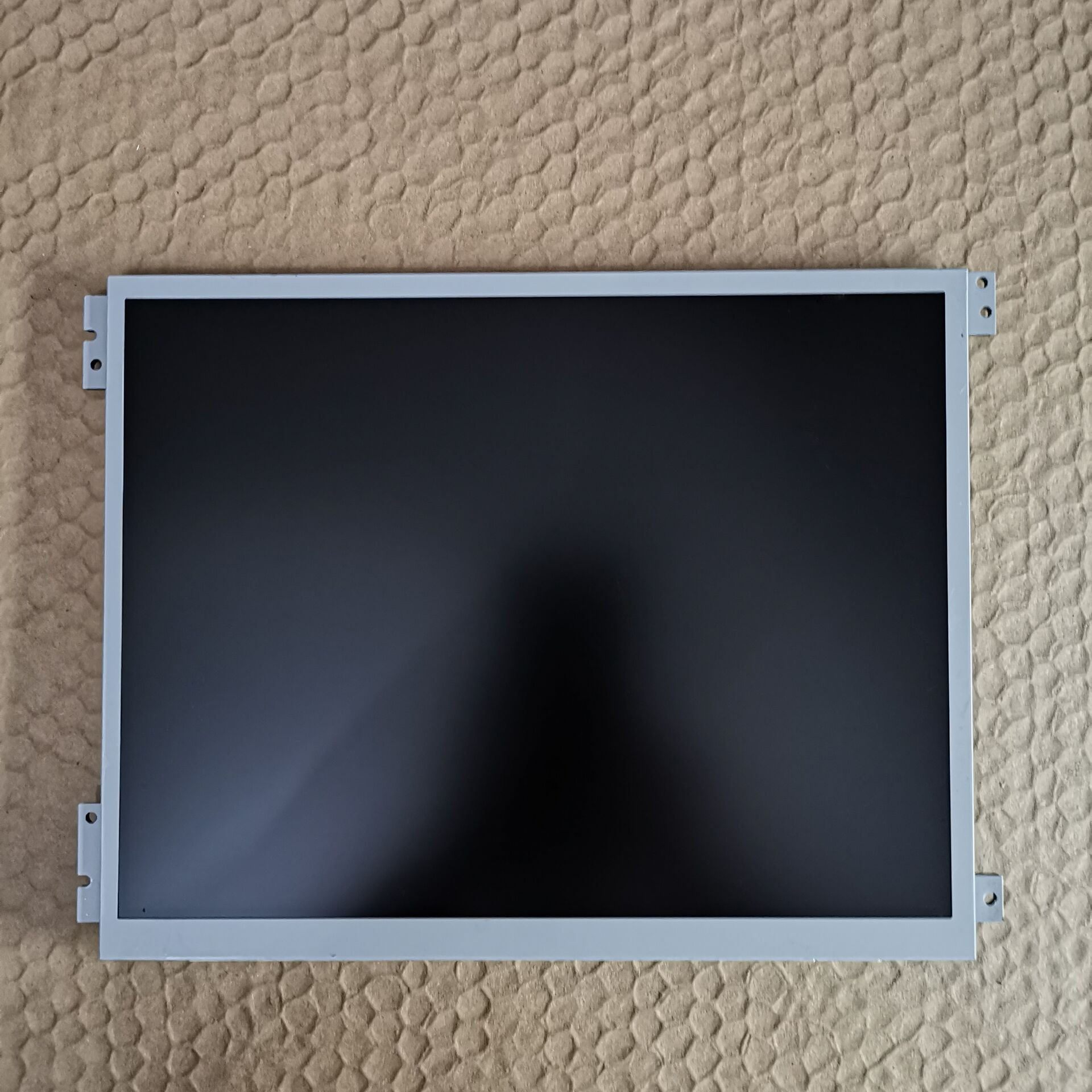

TCG121WXLPAPNN-AN20 Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

TCG121WXLPAPNN-AN20 Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Kyocera

Model Number : TCG121WXLPAPNN-AN20

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : TCG121WXLPAPNN-AN20

SIZE : 12.1INCH

RESOLUTION : 1280×800RGB

BRIGHTNESS : 500 cd/m² (Typ.)

Signal Type : LVDS (1 ch, 8-bit) , 20 pins Connector

Backlight : WLED , 50K hours , With LED Driver

Max. Ratings : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Contact Now

Kyocera TCG121WXLPAPNN-AN20 Application Features

Basic Information : Brand Name Model Name Type Model Alias
TCG121WXLPAPNN-AN20 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
-20 ~ 70 °C -30 ~ 80 °C -

Kyocera TCG121WXLPAPNN-AN20 Mechanical Features

Screen Size : 12.1"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×800, WXGA RGB Vertical Stripe 0.068×0.204 mm 0.204×0.204 mm [124PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
261.12×163.2 mm 264.1×166.2 mm 277.7×182.5 mm 9.8 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:10 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
680g (Typ.) - Antiglare
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel

Kyocera TCG121WXLPAPNN-AN20 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
500 cd/m² (Typ.) AWV, Normally Black, Transmissive 750:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 85/85/85/85 (Typ.)(CR≥10) 18/12 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
7136K 16.2M (6-bit + FRC) X:0.300; Y:0.335
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
50% 70% 53%
DCI-P3 Coverage Rec.2020 Coverage Remarks
52% 38% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera TCG121WXLPAPNN-AN20 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : Yes (180°)

Kyocera TCG121WXLPAPNN-AN20 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type 50K(Typ.) - - -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SM08B-SHLS-G-TF(LF)(SN) 1 pcs 8 pins 1.0 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
12.0V (Typ.) 460/600mA (Typ./Max.) -

Kyocera TCG121WXLPAPNN-AN20 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 375/490mA (Typ./Max.) -
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS DF19L-20P-1H 1 pcs 20 pins 1.0 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TCG121WXLPAPNN-AN20 Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAYTCG121WXLPAPNN-AN20 Kyocera 12.1INCH LCM 1280×800RGB 500NITS WLED LVDS INDUSTRIAL LCD DISPLAY
