TCG075VGLDA-G00 Kyocera 7.5INCH LCM 640×480RGB 250NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: TCG075VGLDAG00 Kyocera 75INCH LCM 640480RGB 250NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China TCG075VGLDA-G00 Kyocera 7.5INCH LCM 640×480RGB 250NITS WLED TTL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : TCG075VGLDA-G00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : TCG075VGLDA-G00

BRAND : Kyocera

SIZE : 7.5INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 250 cd/m² (Typ.)

Signal Interface : Parallel RGB (1 ch, 6-bit) , 40 pins Connector

Lamp Type : 4 strings WLED , 40K hours , Without Driver

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C

Contact Now

Kyocera TCG075VGLDA-G00 Application Details

Basic Detail :	Manufacturer TCG075VGLDA-G00Model Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 7.5 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C RoHS -Vibration Level

Kyocera TCG075VGLDA-G00 Optical Details

Basic Detail :	Luminance 250 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Good View at - Response Speed 15/20 (Typ.)(Tr/Td) ms Viewing Angle 80/80/80/80 (Typ.)(CR≥5) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.320; Wy:0.340 Support Color 262K (6-bit) Color Temperature 6066K White Variation -
1931 Color Gamlt :	NTSC Ratio 52% sRGB 71% coverage Adobe RGB 55% coverage DCI-P3 54% coverage Rec.2020 39% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera TCG075VGLDA-G00 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.079×0.237 mm Pixel Pitch(W×H) 0.237×0.237 mm [107PPI]
Physical Size :	Active Viewing 151.68(W)×113.76(H) mm Overall Dim. 173(W)×133(H) mm Bezel Opening 156.3(W)×118.4(H) mm Overall Depth 6.35±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Other Detail :	Mass 205g (Typ.) Surface Glare (Haze 0%)

Kyocera TCG075VGLDA-G00 Electronics Details

Reverse Scan :	Yes (U/D, L/R)

Kyocera TCG075VGLDA-G00 Interface Detail

Signal Electrical :	Input Current 160/210mA (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption - Signal Interface Parallel RGB (1 ch, 6-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment IRISO IMSA-9681S-40A-GF 0.5 mm 40 pins 1 pcs

Kyocera TCG075VGLDA-G00 Lightting Details

Lamp Features :	Lamp Type WLED Amount 4 strings Position Edge light type Exchange - Lamp Shape 4 strings Lamp Life 40K(Typ.) (Hours)
Lamp Electrical :	Input Voltage 18.8/20.0V (Typ./Max.) Input Current 15mA (Typ.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TCG075VGLDA-G00 Kyocera 7.5INCH LCM 640×480RGB 250NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

WVGA Industrial Lcd Panel

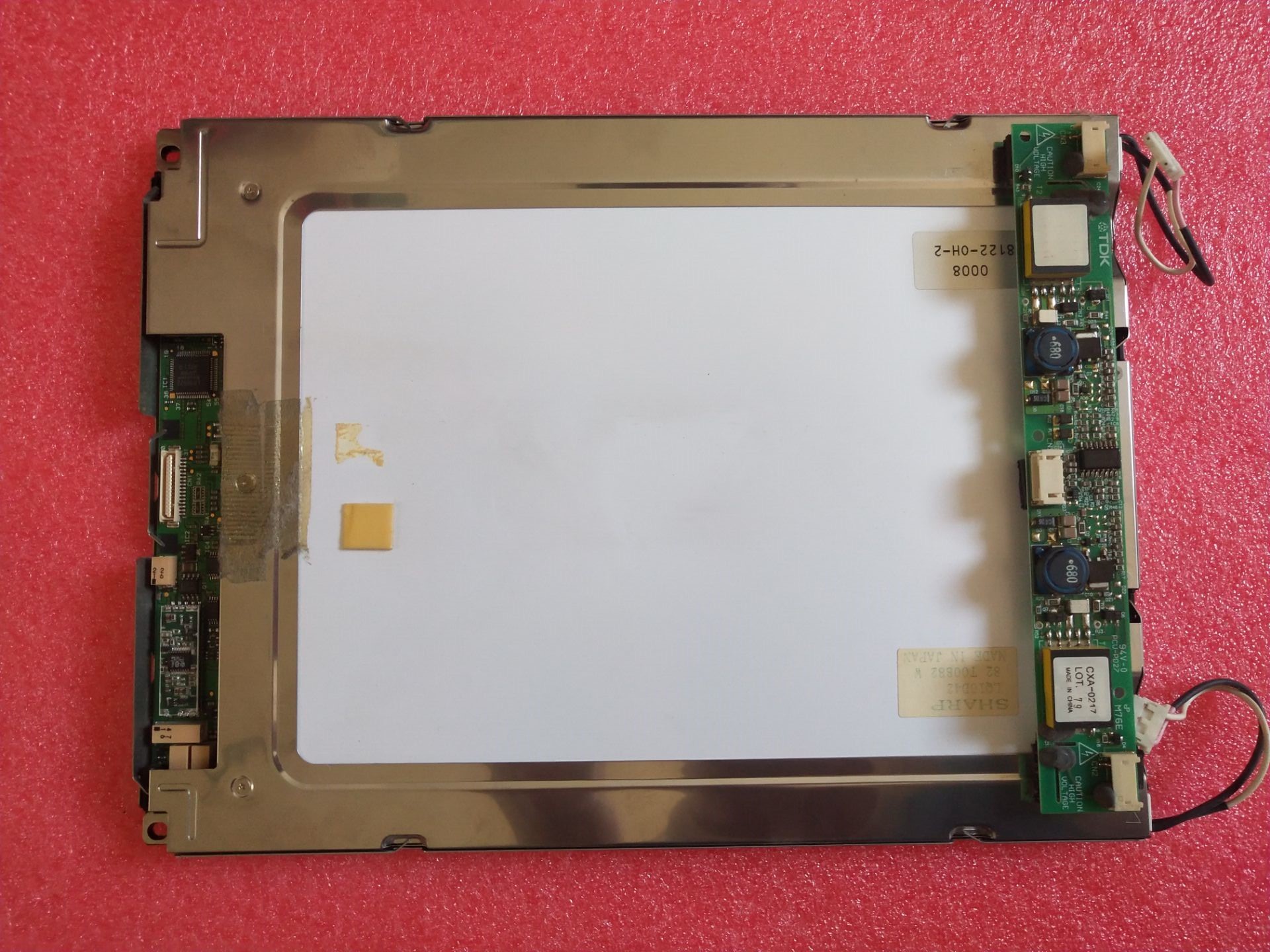

TCG075VGLDA-G00 Kyocera 7.5INCH LCM 640×480RGB 250NITS WLED TTL INDUSTRIAL LCD DISPLAY Images
