T-55619GD065J-LW-ABN Kyocera 6.5INCH LCM 640×480RGB 750NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Name: T55619GD065JLWABN Kyocera 65INCH LCM 640480RGB 750NITS WLED LVDS INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China T-55619GD065J-LW-ABN Kyocera 6.5INCH LCM 640×480RGB 750NITS WLED LVDS INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : T-55619GD065J-LW-ABN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : T-55619GD065J-LW-ABN

SIZE : 6.5INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 750 (Typ.)(cd/m²)

Signal Type : LVDS (1 ch, 6-bit) , 20 pins Connector

Backlight : 6S2P WLED , 70K hours , No Driver

TEMPERATURE RANGE : Storage Temp.: -20 ~ 70 °C

Contact Now

OPTREX T-55619GD065J-LW-ABN Application Details

Basic Information :	Brand		Model	T-55619GD065J-LW-ABN
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	6.5"	Alias	-
Environment :	Storage Temp.	-20 ~~ 70 °C	Operating Temp.	-20 ~~ 70 °C
Environment :	RoHS		Vibration	-

OPTREX T-55619GD065J-LW-ABN Mechanical Details

Pixel Features :	Resolution	640(RGB)×480, VGA	Dot Pitch(mm)	0.069×0.207 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.207×0.207 (H×V) [122PPI]
Mechanical Size :	Active Area(mm)	132.48(H) × 99.36(V)	Bezel Area(mm)	136.46(H) × 101.9(V)
Mechanical Size :	Outline Dim.(mm)	158(H) × 120.36(V)	Depth(mm)	7.0/12.0 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Mounting :	Face mounting holes
Other Spec :	Weight	230g (Max.)	Treatment	Antiglare

OPTREX T-55619GD065J-LW-ABN Optical Details

Basic Information :	Luminance(cd/m²)	750 (Typ.)	Contrast Ratio	300:1 (Typ.) (Transmissive)
	Viewing Angle	55/55/30/60 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	15/16 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.320; Y:0.350	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6022K	White Uniformity	1.43 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	39%	sRGB	53% coverage
	Adobe RGB	40% coverage	DCI-P3	40% coverage
	Rec.2020	29% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity	-

OPTREX T-55619GD065J-LW-ABN Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (180°)

OPTREX T-55619GD065J-LW-ABN Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	310/465mA (Typ./Max.)
Signal Type :	LVDS (1 ch, 6-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	HRS	DF14A-20P-1.25H(56)	1 pcs	20 pins	1.25 mm	LVDS-20P1C6B-010B

OPTREX T-55619GD065J-LW-ABN Backlight Details

Backlight Features:	Shape	2 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	6S2P	Life Time	70K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply	18.4/21.4V (Typ./Max.)		Current Supply	60mA (Typ.)
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	JST	SM06B-SHLS-TF(LF)(SN)	1 pcs	6 pins	1.0 mm	BLE-6PINS-AANNCC
Backlight Driver :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

T-55619GD065J-LW-ABN Kyocera 6.5INCH LCM 640×480RGB 750NITS WLED LVDS INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

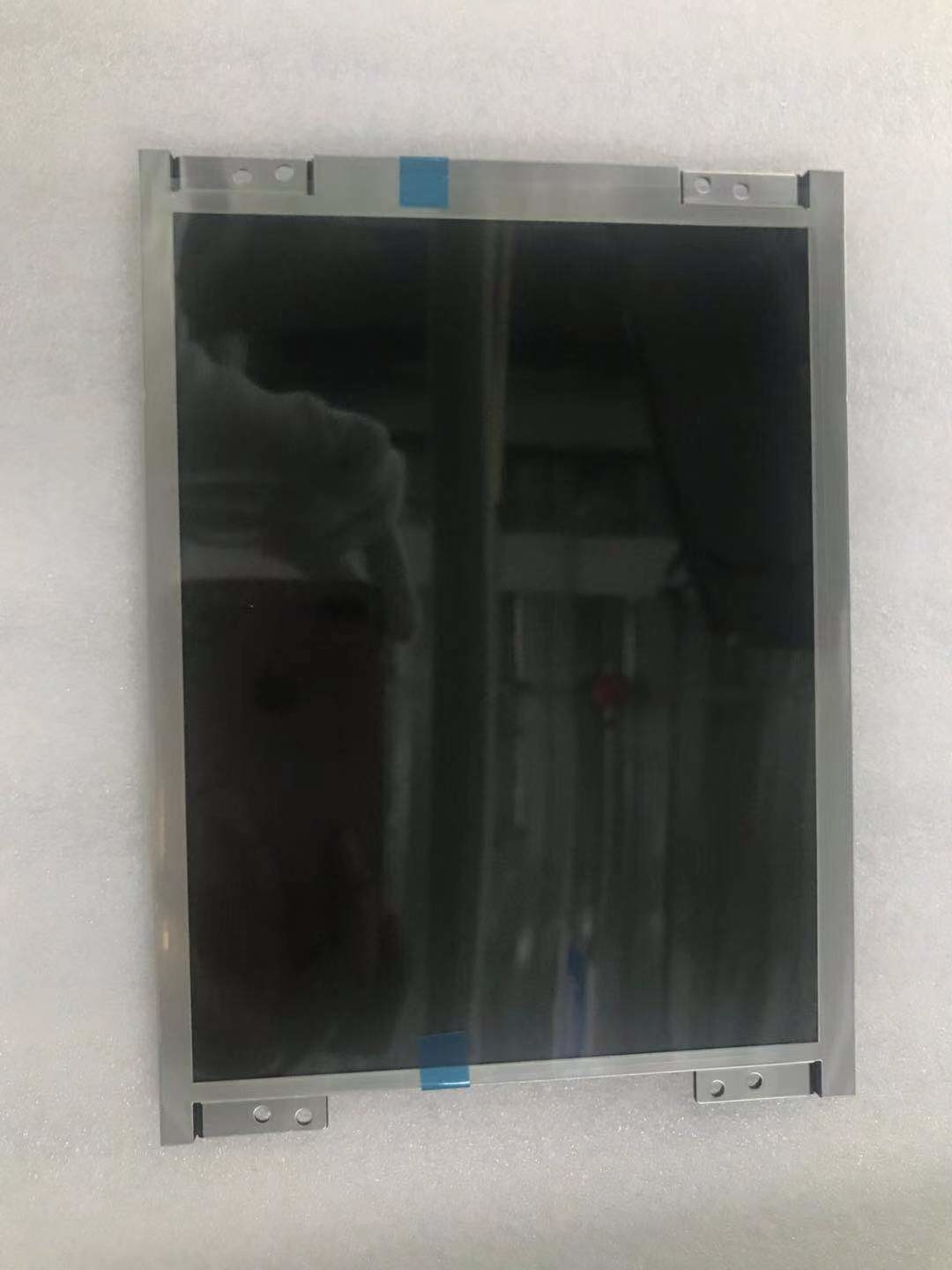

T-55619GD065J-LW-ABN Kyocera 6.5INCH LCM 640×480RGB 750NITS WLED LVDS INDUSTRIAL LCD DISPLAY Images
