LQ070Y3DG1A Sharp 7" LCM 800×480RGB 300cd/m² INDUSTRIAL LCD DISPLAY

Name: LQ070Y3DG1A Sharp 7quot LCM 800480RGB 300cdm INDUSTRIAL LCD DISPLAY
Brand: SHARP
Price: 1 USD

China LQ070Y3DG1A Sharp 7" LCM 800×480RGB 300cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : SHARP

Model Number : LQ070Y3DG1A

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Brand : Sharp

Model : LQ070Y3DG1A

Interface Type : TTL

Light Source : WLED

Luminance : 300 cd/m² (Typ.)

Diagonal Size : 7.0 inch

Environment : Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Pixel Format : 800(RGB)×480 [WVGA] 133PPI

Contact Now

LQ070 Series LQ070Y3DG3B LQ070Y3DG3A LQ070Y3DG1A

Sharp LQ070Y3DG1A Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :	SHARP	LQ070Y3DG1A	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-10 ~ 70 °C	-30 ~ 80 °C	-

Sharp LQ070Y3DG1A Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	300 (Typ.)	65/65/50/60 (Typ.)(CR≥10)	-
	Best View on	Display Mode	Contrast Ratio
	-	TN, Normally White, Transmissive	-
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	-	262K (6-bit)	-

Sharp LQ070Y3DG1A Mechanical Features

Panel Size :	7.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	800(RGB)×480 [WVGA]	RGB Vertical Stripe	0.1905×0.1905 [133PPI]	0.0635×0.1905
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	152.4(H) × 91.44(V)	-	163.2(H) × 104(V)	6.2 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	15:9 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	TBD	-	Antiglare, Hard coating (2H)

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LQ070Y3DG1A Sharp 7" LCM 800×480RGB 300cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL Sharp TFT LCD Display

WLED LVDS TFT Touch Panel

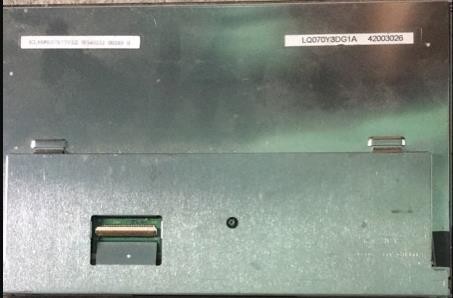

LQ070Y3DG1A Sharp 7" LCM 800×480RGB 300cd/m² INDUSTRIAL LCD DISPLAY Images
