Sharp LQ070Y3LG05 Application Details
| Basic Information : | Brand | SHARP | Model | LQ070Y3LG05 |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 7.0" | Alias | - |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -10 ~~ 70 °C |
| RoHS | | Vibration | 1.5G (14.7 m/s²) |
Sharp LQ070Y3LG05 Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.064×0.1805 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.192×0.1805 (H×V) [134PPI] |
| Mechanical Size : | Active Area(mm) | 153.6(H) × 86.64(V) | Bezel Area(mm) | 156.0(H) × 89.04(V) |
| Outline Dim.(mm) | 165(H) × 104(V) | Depth(mm) | 5.0/7.71 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Spec : | Weight | 195g (Max.) | Treatment | Antiglare, Hard coating (3H) |
Sharp LQ070Y3LG05 Optical Details
| Basic Information : | Luminance(cd/m²) | 380 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | 16 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.43 (Max.)(5 points) |
Sharp LQ070Y3LG05 Interface Details
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 200/230mA (Typ./Max.) |
| Consumption | 0.8W (Max.) |
| Signal Type : | LVDS (1 ch, 8-bit) | Signal Voltage | - |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 093G30-B0001A-M4 | 1 pcs | 30 pins | 1.0 mm |
Sharp LQ070Y3LG05 Backlight Details
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | - | Life Time | 20K(Min.) (Hours) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 5.0/12.0/16.0V (Min./Typ./Max.) | Current Supply | - |
| Consumption | 2.1W (Max.) |
LQ070Y3LG05 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×86.64(H) mm, outline size of 165(W)×104(H)×7.71(D) mm, viewing area size of 156.0(W)×89.04(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 195g (Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y3LG05 can provides 380 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver.
Product Tags:
|
|

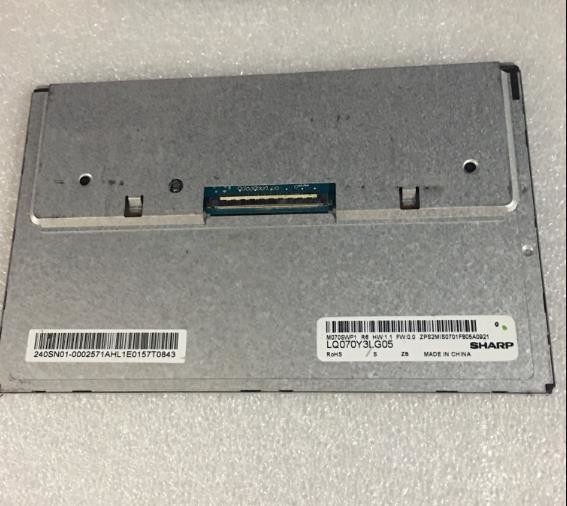

7" LCM 800×480RGB 380cd/m² LQ070Y3LG05 Sharp TFT LCD Display Images
|
