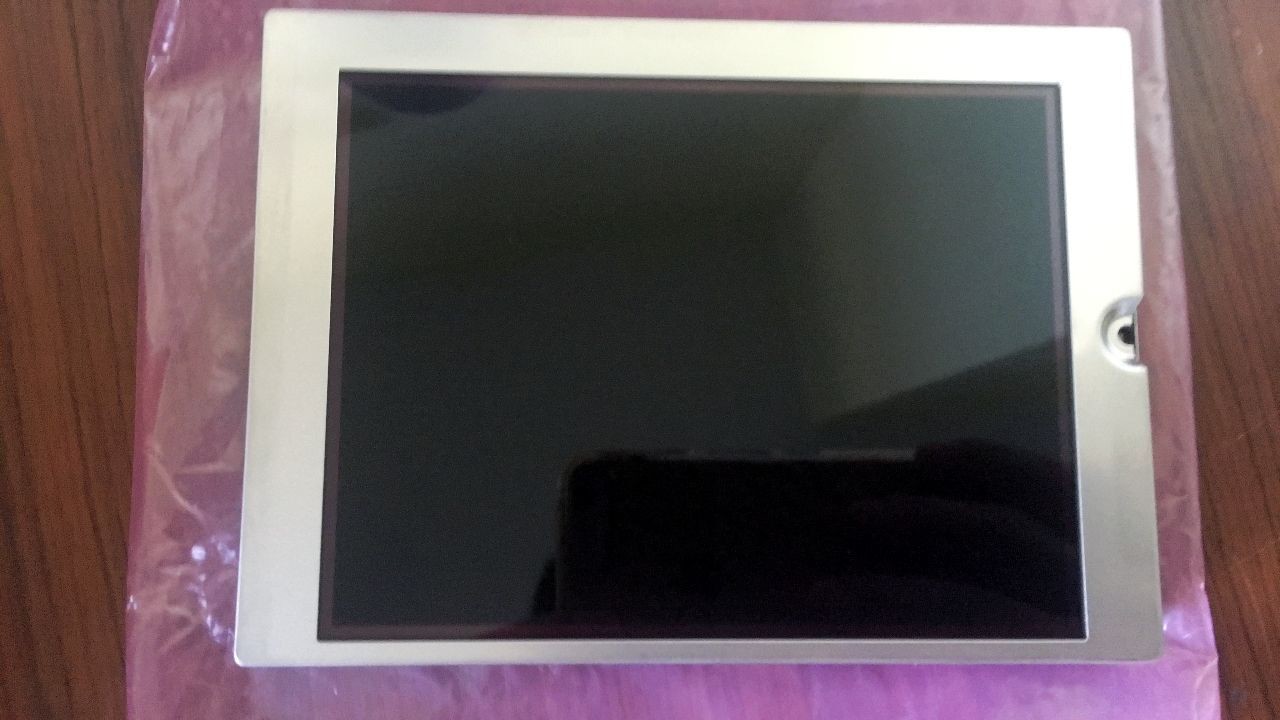

T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: T55265GD057JLWACN Kyocera 57INCH LCM 320240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China T-55265GD057J-LW-ACN Kyocera 5.7INCH LCM 320×240RGB 400NITS WLED TTL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : T-55265GD057J-LW-ACN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-55265GD057J-LW-ACN

BRAND : Kyocera

SIZE : 5.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 400 cd/m² (Typ.)

Signal Interface : Parallel RGB (1 ch, 6-bit) , 33 pins Connector

Lamp Type : 4S3P WLED , Without Driver

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C

Contact Now

OPTREX T-55265GD057J-LW-ACN Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		T-55265GD057J-LW-ACN	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-20 ~ 70 °C	-30 ~ 80 °C	-
Application :
Typical Features :

OPTREX T-55265GD057J-LW-ACN Mechanical Features

Screen Size :	5.7"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	320(RGB)×240, QVGA	RGB Vertical Stripe	0.120×0.360 mm	0.360×0.360 mm [70PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	115.2×86.4 mm	119.8×91.0 mm	144×104.6 mm	15.1 (Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	-	-	-	4-wire Resistive Touch
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	306.0g (Max.)	-	-
Holes & Brackets :	Rear mounting holes (4-Ф2.6)

OPTREX T-55265GD057J-LW-ACN Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	400 cd/m² (Typ.)	TN, Normally White, Transmissive	350:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	70/70/70/70 (Typ.)(CR≥5)	21/10 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	8278K	262K (6-bit)	X:0.2919; Y:0.3040
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	56%	76%	58%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	58%	42%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.33/1.43 (Typ./Max.)(9 points)

PTREX T-55265GD057J-LW-ACN Electronics Features

Reverse Scan :	Yes (U/D, L/R)

OPTREX T-55265GD057J-LW-ACN Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	-	4S3P	3 strings	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	13.2V (Typ.)		60mA (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	SHLP-06V-S-B	1 pcs	6 pins	1.0 mm	BLE-6PINS-AAACCC

OPTREX T-55265GD057J-LW-ACN Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)(VCC)		100/150mA (Typ./Max.)(ICC)			-
Voltage for Display Signals :	0≤VIL≤0.3VCCV; 0.7VCC≤VIH≤VCC
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel RGB (1 ch, 6-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	Kyocera Elco	08-6260-033-340-829+	1 pcs	33 pins	0.5 mm	DRGB-33P1C6B-020A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
