T-51965GD088ZU-MFW-A-AJN Kyocera 8.8INCH LCM 640×240RGB 200NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Name: T51965GD088ZUMFWAAJN Kyocera 88INCH LCM 640240RGB 200NITS CCFL TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China T-51965GD088ZU-MFW-A-AJN Kyocera 8.8INCH LCM 640×240RGB 200NITS CCFL TTL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : T-51965GD088ZU-MFW-A-AJN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-51965GD088ZU-MFW-A-AJN

BRAND : Kyocera

SIZE : 8.8INCH

RESOLUTION : 640×240RGB

Light Source : CCFL [2 pcs] , W/O Driver

Interface Type : CMOS (1 ch, 6-bit) , 31 pins Connector

Type : a-Si TFT-LCD, LCM

TEMPERATURE RANGE : Operating Temperature: -40 ~ 85 °C

Contact Now

OPTREX T-51965GD088ZU-MFW-A-AJN Application Features

Basic Information :	Manufacturer	Panel Model 1 Compatible	Panel Type	Alias
Basic Information :		T-51965GD088ZU-MFW-A-AJN	a-Si TFT-LCD , LCM	AA088HA04
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :	-	-40 ~ 85 °C	-	-

OPTREX T-51965GD088ZU-MFW-A-AJN Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	-	-	-
	Best View on	Display Mode	Contrast Ratio
	12 o'clock	TN, Normally White, Transflective	185 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	-	262K (6-bit)	-
Performance :	3D Tech	Sunlight Visibility	Reflectance
Performance :	-	Sunlight Readable	-

OPTREX T-51965GD088ZU-MFW-A-AJN Mechanical Features

Panel Size :	8.8"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	640(RGB)×240 [HVGA]	RGB Vertical Stripe	0.327×0.327 [77PPI]	0.109×0.327
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	209.28(H) × 78.48(V)	-	-	-
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	8:3 (H:V)

OPTREX T-51965GD088ZU-MFW-A-AJN Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	CCFL	Edge light type (Top and Bottom)	2 pcs	Straight	-	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector

OPTREX T-51965GD088ZU-MFW-A-AJN Interface Features

Interface Features :	Position	Signal				Type
Interface Features :	-	CMOS (1 ch, 6-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :				31 pins	1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

T-51965GD088ZU-MFW-A-AJN Kyocera 8.8INCH LCM 640×240RGB 200NITS CCFL TTL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

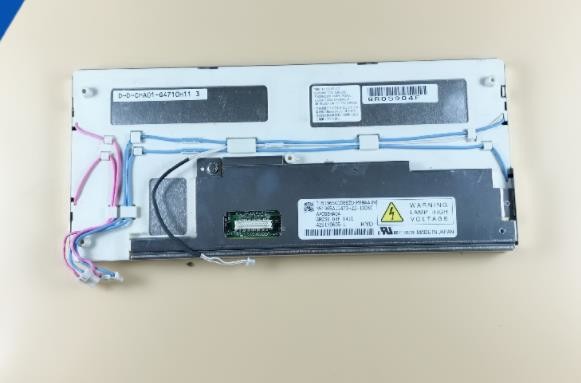

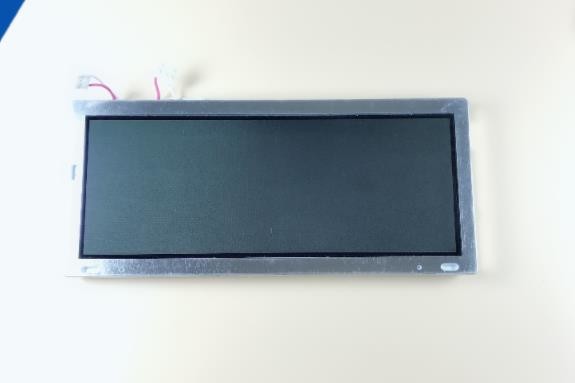

T-51965GD088ZU-MFW-A-AJN Kyocera 8.8INCH LCM 640×240RGB 200NITS CCFL TTL INDUSTRIAL LCD DISPLAY Images
