T-51963GD035J-MLW-AHN Kyocera 3.5INCH LCM 320×240RGB 160NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: T51963GD035JMLWAHN Kyocera 35INCH LCM 320240RGB 160NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China T-51963GD035J-MLW-AHN Kyocera 3.5INCH LCM 320×240RGB 160NITS WLED TTL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : T-51963GD035J-MLW-AHN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 800PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

BRAND : Kyocera

MODEL NUMBER : T-51963GD035J-MLW-AHN

RESOLUTION : 320×240RGB

SIZE : 3.5INCH

BRIGHTNESS : 160 cd/m² (Typ.)

Backlight : WLED , 5K hours

Screen Type : LCM , a-Si TFT-LCD

TEMPERATURE RANGE : Storage Temp.: -30 ~ 70 °C

Contact Now

OPTREX T-51963GD035J-MLW-AHN Application Details

Basic Detail :	Manufacturer T-51963GD035J-MLW-AHNModel Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 3.5 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 70 °C RoHS -Vibration Level

OPTREX T-51963GD035J-MLW-AHN Optical Details

Basic Detail :	Luminance 160 cd/m² (Typ.) Contrast Ratio 70:1 (Typ.) (Transmissive) 8:1 (Typ.) (Reflective) Good View at - Response Speed 30/50 (Typ.)(Tr/Td) ms Viewing Angle 40/40/40/40 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transflective
Color Performance :	Chromaticity Wx:0.320; Wy:0.350 Support Color 262K (6-bit) Color Temperature 6022K White Variation 1.43 (Max.)(5 points)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity - 3D Tech - Reflectance 20% (Typ.)

OPTREX T-51963GD035J-MLW-AHN Mechanical Details

Pixel Features :	Number of Pixel 320×240(RGB), QVGA Arrangement RGB Horizontal Stripe Dot Pitch(W×H) 0.2235×0.0745 mm Pixel Pitch(W×H) 0.2235×0.2235 mm [113PPI]
Physical Size :	Active Viewing 71.52(W)×53.64(H) mm Overall Dim. 86.2(W)×65(H) mm Bezel Opening - Overall Depth 3.4 (Typ.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Other Detail :	Mass 46.0g (Max.) Surface -

OPTREX T-51963GD035J-MLW-AHN Electronics Details

Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

OPTREX T-51963GD035J-MLW-AHN Interface Detail

Signal Electrical :	Input Current 1.6/8.0/0.05/0.05mA (Typ.)(IDDD/IDDA/IGH/IGL) Input Voltage 3.3/5.0/16.0/-12.0V (Typ.)(VDDD/VDDA/VGH/VGL) Consumption - Signal Interface CMOS (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.8V; 2.7V≤VIH≤3.6V
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment 50 pins 1 pcs

OPTREX T-51963GD035J-MLW-AHN Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type Exchange - Lamp Shape - Lamp Life 5K(Min.) (Hours)
Lamp Electrical :	Input Voltage 19.2/21.0V (Typ./Max.) Input Current 15/20mA (Typ./Max.) Consumption 0.384W (Typ.)
Interface Features :	Position - Type Included in panel signal interface

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

T-51963GD035J-MLW-AHN Kyocera 3.5INCH LCM 320×240RGB 160NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

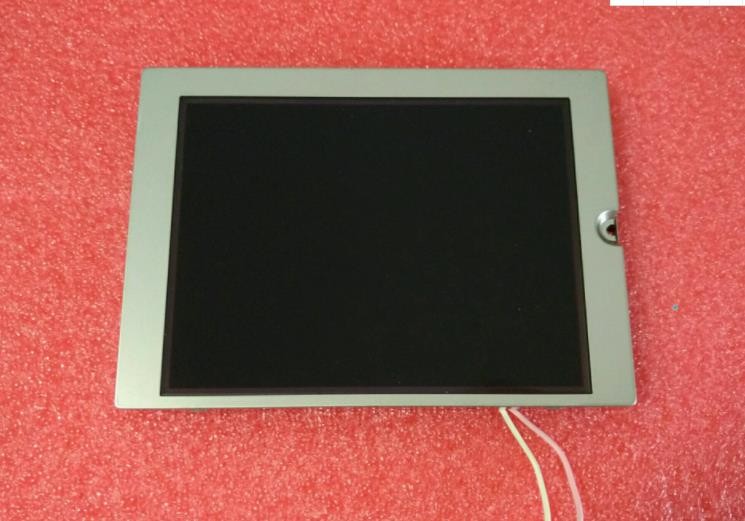

T-51963GD035J-MLW-AHN Kyocera 3.5INCH LCM 320×240RGB 160NITS WLED TTL INDUSTRIAL LCD DISPLAY Images
