T-51863D150J-FW-A-AE Kyocera 15INCH LCM 1024×768RGB 450NITS CCFL LVDS INDUSTRIAL LCD DISPLAY

Name: T51863D150JFWAAE Kyocera 15INCH LCM 1024768RGB 450NITS CCFL LVDS INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China T-51863D150J-FW-A-AE Kyocera 15INCH LCM 1024×768RGB 450NITS CCFL LVDS INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : T-51863D150J-FW-A-AE

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-51863D150J-FW-A-AE

BRAND : Kyocera

RESOLUTION : 1024×768RGB

SIZE : 15INCH

BRIGHTNESS : 450 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Lamp Type : 4 pcs CCFL , 50K hours , Without Driver

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C

Contact Now

OPTREX T-51863D150J-FW-A-AE Application Details

Basic Info :	Panel Brand		Panel Model	T-51863D150J-FW-A-AE 1 Compatible
	Diagonal Size	15.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	AA150XN02A
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-20 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	1.0G (9.8 m/s²)

OPTREX T-51863D150J-FW-A-AE Mechanical Details

Pixel Features :	Pixel Format	1024(RGB)×768 [XGA]	Dot Pitch	0.099×0.297 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.297×0.297 mm (H×V) [85PPI]
Mechanical Size :	Display Area	304.128×228.096 mm (H×V)	Bezel Area	308.1×232.1 mm (H×V)
Mechanical Size :	Outline Dim.	326×255 mm (H×V)	Outline Depth	15.9 (Typ.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.31Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

OPTREX T-51863D150J-FW-A-AE Optical Details

Basic Information :	Brightness	450 cd/m² (Typ.)	Contrast Ratio	450:1 (Typ.) (Transmissive)
	Viewing Angle	75/75/50/60 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	6/19 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.30 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	52%	sRGB	72% coverage
	Adobe RGB	54% coverage	DCI-P3	54% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

OPTREX T-51863D150J-FW-A-AE Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (180°)

OPTREX T-51863D150J-FW-A-AE Backlight Details

Back-light Features:	Lamp Shape	Straight	Lamp Type	CCFL	Life Time	50K(Min.) (Hours)
Back-light Features:	Replacement	Replaceable	Amount	4 pcs	Position	Edge light type (Top and Bottom)
Lamp Electrical :	Voltage Input	620V (Typ.)		Current Input	3.5/6.5/8.0mA (Min./Typ./Max.)
Lamp Electrical :	Frequency	40/70KHz (Min./Max.)		Kick-off Voltage	1300/1500/1650V (Min.)(Ta=+25/0/-20℃)
Interface Features :	Type	Connector	Position	-	Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
	JST	BHSR-02VS-1	3.5 mm	2 pins	2 pcs	BLL-2PINS-HH
	JST	BHR-02VS-1	4.0 mm	2 pins	2 pcs	BLL-2PINS-LL

OPTREX T-51863D150J-FW-A-AE Interface Details

Signal Systerm :	LVDS (1 ch, 6/8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	410/700mA (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	HRS	DF14H-20P-1.25H(56)	1.25 mm	20 pins	1 pcs	LVDS-20P1C8B-010H

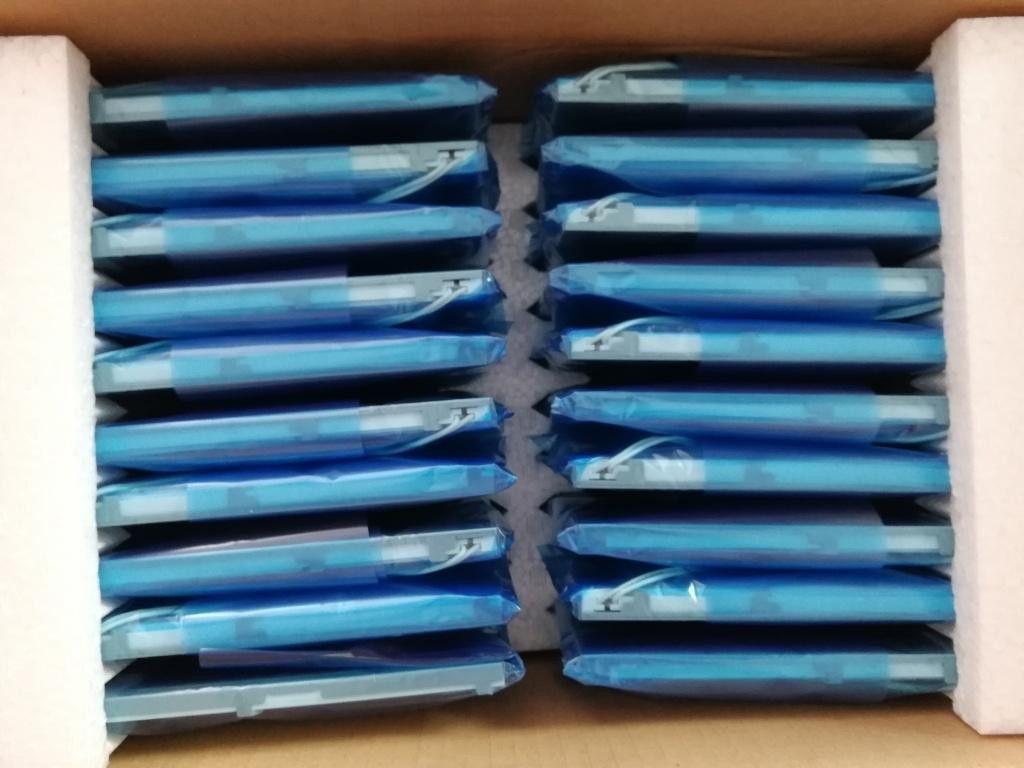

OPTREX T-51863D150J-FW-A-AE Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	10 pcs / box	17.4 Kgs	488×395×361 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

T-51863D150J-FW-A-AE Kyocera 15INCH LCM 1024×768RGB 450NITS CCFL LVDS INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

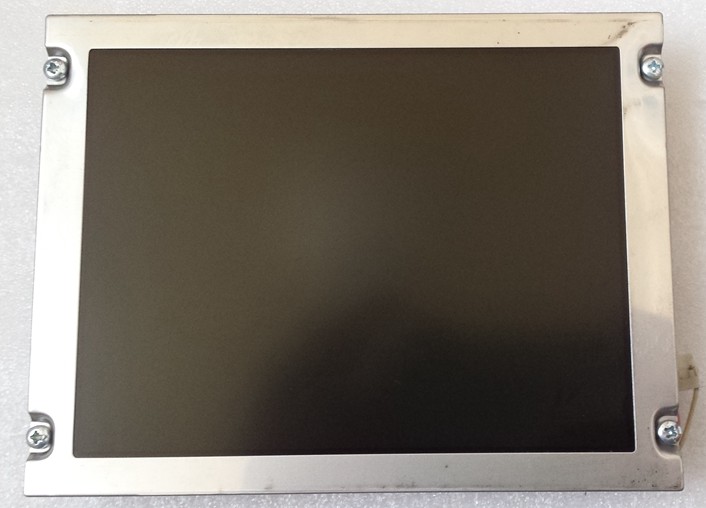

T-51863D150J-FW-A-AE Kyocera 15INCH LCM 1024×768RGB 450NITS CCFL LVDS INDUSTRIAL LCD DISPLAY Images
