T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY

Name: T51750GD065JLWBHN Kyocera 65INCH LCM 640480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : T-51750GD065J-LW-BHN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 300PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : T-51750GD065J-LW-BHN

BRAND : Kyocera

SIZE : 6.5INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 800 cd/m² (Typ.)

Signal Interface : Parallel RGB (1 ch, 6-bit) , 31 pins Connector

Lamp Type : 8S2P×2CN WLED , Without Driver

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C

Contact Now

OPTREX T-51750GD065J-LW-BHN Application Details

Basic Detail :	Manufacturer T-51750GD065J-LW-BHNModel Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 6.5 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -20 ~ 70 °C RoHS -Vibration Level

OPTREX T-51750GD065J-LW-BHN Optical Details

Basic Detail :	Luminance 800 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 15/16 (Typ.)(Tr/Td) ms Viewing Angle 80/80/50/70 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.320; Wy:0.350 Support Color 262K (6-bit) Color Temperature 6022K White Variation 1.43 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 52% sRGB 72% coverage Adobe RGB 55% coverage DCI-P3 54% coverage Rec.2020 39% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity -

OPTREX T-51750GD065J-LW-BHN Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.069×0.207 mm Pixel Pitch(W×H) 0.207×0.207 mm [122PPI]
Physical Size :	Active Viewing 132.48(W)×99.36(H) mm Overall Dim. 158(W)×120.36(H) mm Bezel Opening 135.46(W)×101.9(H) mm Overall Depth 8.4/11.25 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Touchscreen :	TP Controller Without touch controller TP Interface - Touch Points - TP Technology 4-wire Resistive Touch
Fixation :	Face mounting holes (4-R1.75) on left, right bezel
Other Detail :	Mass 280g (Typ.) Surface Antiglare (Haze 9%)

OPTREX T-51750GD065J-LW-BHN Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)

OPTREX T-51750GD065J-LW-BHN Interface Detail

Signal Electrical :	Input Current 240/180mA (Typ.)(ICC) Input Voltage 3.3/5.0V (Typ.)(VCC) Consumption - Signal Interface Parallel RGB (1 ch, 6-bit)
Logic Voltage :	NA≤VIL≤0.8V; 2.4V≤VIH≤5.5V
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9B-31P-1V 1.0 mm 31 pins 1 pcs DRGB-31P1C6B-010F

OPTREX T-51750GD065J-LW-BHN Lightting Details

Lamp Features :	Lamp Type WLED Amount 8S2P×2CN Position Edge light type (Top and Bottom) Exchange - Lamp Shape 2 strings × 2CN Lamp Life -
Lamp Electrical :	Input Voltage 26.4/32V (Typ./Max.) Input Current 35mA (Typ.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST SHLP-06V-S-B 1.0 mm 6 pins 2 pcs BLE-6PINS-AANNCC
Backlight Driver :	No

OPTREX T-51750GD065J-LW-BHN Specification Source

Datasheet Referenced :	File Number	Version	Language	Issue Date
Datasheet Referenced :	-	Rev.02	English	2017 - 12 - 27
Panelook Latest Update :	2019-08-23 14:09

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED Industrial TFT Display

LCD Industrial TFT Display

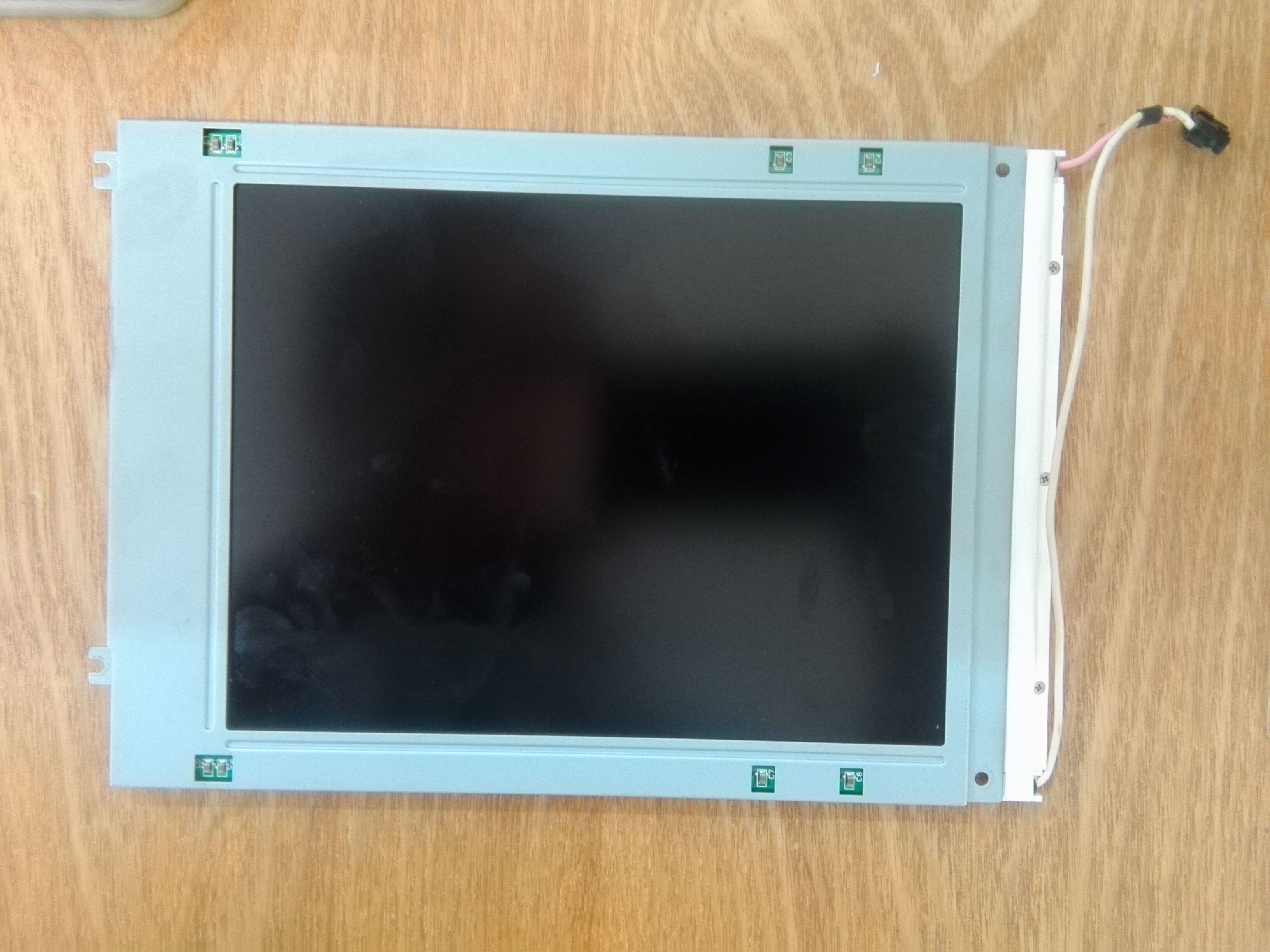

T-51750GD065J-LW-BHN Kyocera 6.5INCH LCM 640×480RGB 800NITS WLED TTL INDUSTRIAL LCD DISPLAY Images
