KCS6448HSTT-X21 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

Name: KCS6448HSTTX21 Kyocera 104INCH LCM 640480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China KCS6448HSTT-X21 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : KCS6448HSTT-X21

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCS6448HSTT-X21

BRAND : Kyocera

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 150 cd/m² (Typ.)

Light Source : CCFL [2 pcs] , 10K hours , W/O Driver

Interface Type : Parallel Data (8-bit) , 29 pins Connector

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C

Contact Now

Kyocera KCS6448HSTT-X21 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		KCS6448HSTT-X21	CSTN-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

Kyocera KCS6448HSTT-X21 Mechanical Features

Screen Size :	10.4"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.110×0.330 mm	0.330×0.330 mm [76PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	211.2×158.4 mm	217.2×164.4 mm	253.2×187.4 mm	11.0 (Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	580g (Typ.)	-	Antiglare
Holes & Brackets :	Face mounting holes (2-Φ3.4, 2-R1.7)

Kyocera KCS6448HSTT-X21 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	150 cd/m² (Typ.)	STN, Normally Black, Transmissive	25:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	-	50/50/50/35 (Typ.)(CR≥2)	160/80 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6638K	Color	X:0.310; Y:0.330
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	43%	59%	45%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	45%	32%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCS6448HSTT-X21 Electronics Features

Refresh Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KCS6448HSTT-X21 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Edge light type (Top and Bottom)	10K(Typ.)	2 pcs	Straight	-
CCFL Electrical :	Input Voltage		Input Current			Power Consumption
	520V (Typ.)		2.0/3.8/6.0mA (Min./Typ./Max.)
	Operating Frequency		Startup Voltage
	30/80KHz (Min./Max.)		850/1060V (Max.)(Ta=+25/0℃)
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	No			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	HONDA	QZ-19-3F01	2 pcs	3 pins		BLL-3PINS-LNH

Kyocera KCS6448HSTT-X21 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	5.0V (Typ.)		2.6mA (Typ.)			344/534mW (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel Data (8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
	molex	53261-1510	1 pcs	15 pins	1.25 mm
	molex	53261-1410	1 pcs	14 pins	1.25 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCS6448HSTT-X21 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL CSTN LCD Panel

VGA Lcd Video Panel

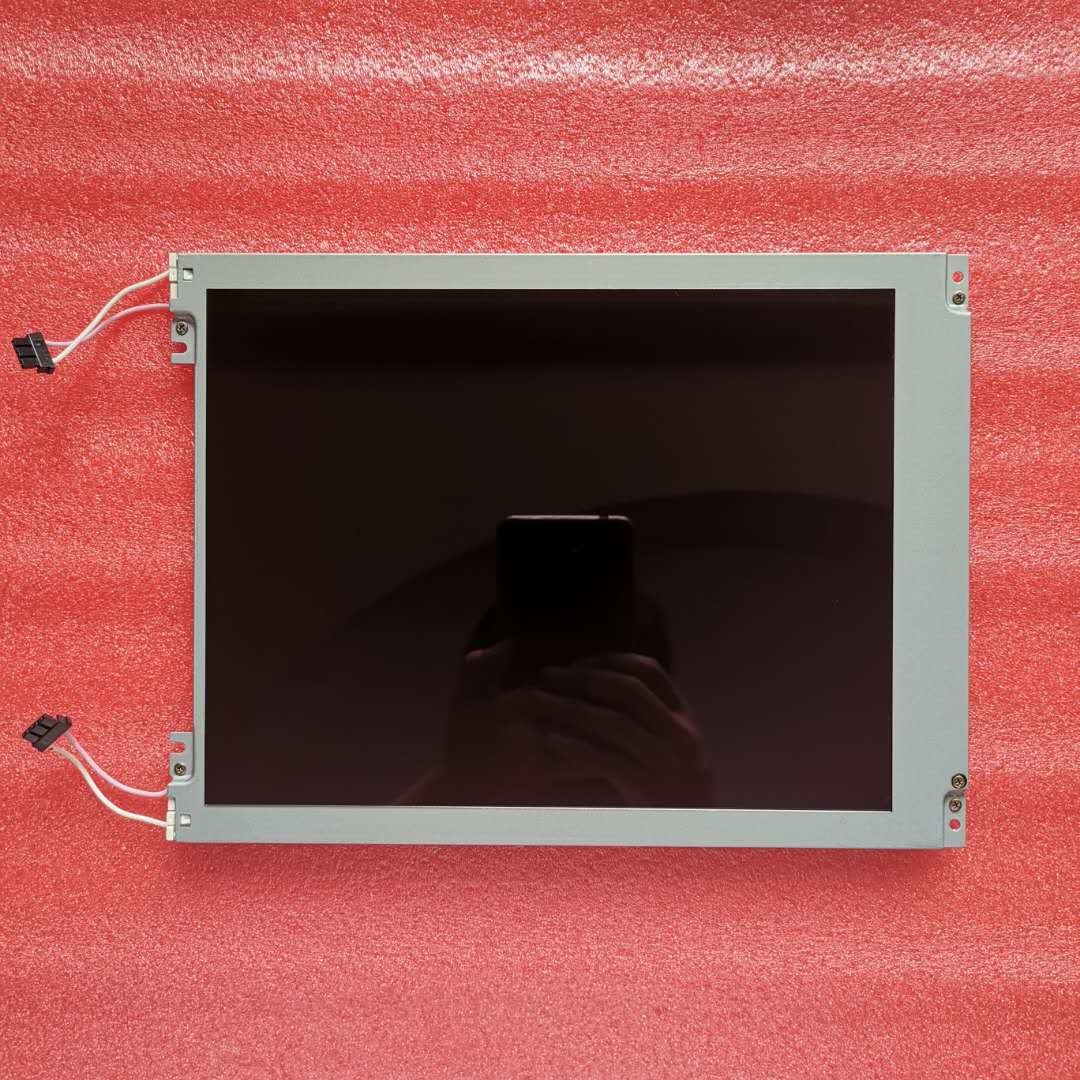

KCS6448HSTT-X21 Kyocera 10.4INCH LCM 640×480RGB 150NITS CCFL INDUSTRIAL LCD DISPLAY Images
