CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY

Name: CS057QV1ADG23 Kyocera 57INCH LCM 320240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : CS057QV1AD-G23

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : CS057QV1AD-G23

BRAND : Kyocera

SIZE : 5.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 160 (Typ.)(cd/m²)

Screen Type : LCM , CSTN-LCD

Backlight : 1 pcs CCFL , 40K hours , Optional

TEMPERATURE RANGE : Storage Temp.: -20 ~ 60 °C

Contact Now

Kyocera KCS057QV1AD-G23 Application Details

Basic Detail :	Manufacturer		Model Name	KCS057QV1AD-G23
	Panel Type	CSTN-LCD , LCM	Another Name	-
	Panel Size	5.7 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	Vibration Level	-	RoHS

Kyocera KCS057QV1AD-G23 Optical Details

Basic Information :	Luminance	160 cd/m² (Typ.)	Contrast Ratio	40 : 1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	220/110 (Typ.)(Tr/Td) (ms)
	Viewing Angle	50/50/30/30 (Typ.)(CR≥2)	Operating Mode	STN, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.320; Wy:0.350	Support Color	Color
Color Performance :	Color Temperature	6022K	White Uniformity	-
1931 Color Gamlt :	NTSC Ratio	35%	sRGB	48% coverage
	Adobe RGB	36% coverage	DCI-P3	36% coverage
	Rec.2020	26% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCS057QV1AD-G23 Mechanical Details

Pixel Features :	Number of Pixel	320(RGB)×240 [QVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.120×0.360 mm	Pixel Pitch(W×H)	0.360×0.360 mm [70PPI]
Physical Size :	Active Viewing	115.2(W)×86.4(H) mm	Overall Dim.	154.6(W)×114.8(H) mm
Physical Size :	Bezel Opening	120.2(W)×91.4(H) mm	Overall Depth	10.3±0.5 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Touchscreen :	TP Controller	-	TP Interface	-
Touchscreen :	Touch Points	-	TP Technology	4-wire Resistive Touch
Fixation :	Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
Other Detail :	Mass	240g (Typ.)	Surface	Glare (Haze 0%)

Kyocera KCS057QV1AD-G23 Electronics Details

Refresh Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KCS057QV1AD-G23 Interface Details

Signal Electrical :	Input Current	3.0mA (Typ.)		Input Voltage	5.0V (Typ.)
Signal Electrical :	Consumption	210/325mW (Typ./Max.)	Signal Interface	Parallel Data (8-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	molex	51021-1500	1 pcs	1.25 mm	15 pins	PD-15P1C8B-010B

Kyocera KCS057QV1AD-G23 Lightting Details

Lamp Features:	Lamp Shape	Straight	Lamp Type	CCFL	Position	Edge light type (Bottom side)
Lamp Features:	Exchange	-	Amount	1 pcs	Life	40K(Typ.) (Hours)
Lamp Electrical :	Input Current	2.0/5.0/6.0mA (Min./Typ./Max.)		Input Voltage	320V (Typ.)
Lamp Electrical :	Frequency	30/100KHz (Min./Max.)		Turn-on Voltage	530/795V (Max.)(Ta=+25/0℃)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BHR-03VS-1	1 pcs	4.0 mm	3 pins	BLL-3PINS-HNL
Backlight Driver :	Optional

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL CSTN LCD Panel

VGA Lcd Video Panel

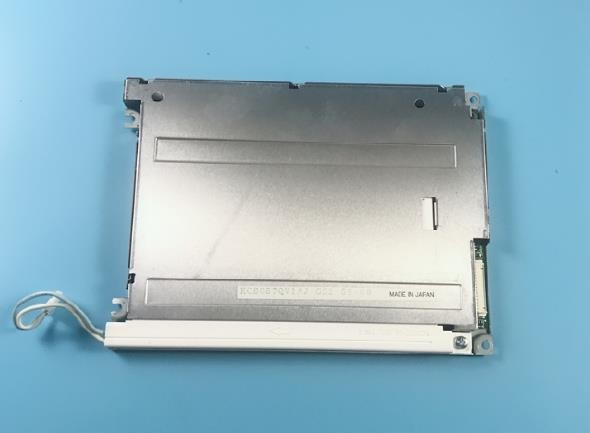

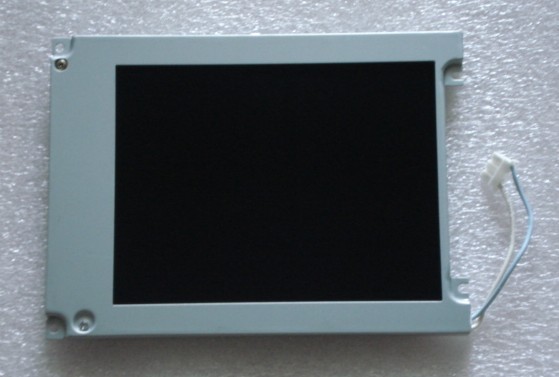

CS057QV1AD-G23 Kyocera 5.7INCH LCM 320×240RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY Images
