KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY

Name: KCS057QV1AAG03 Kyocera 57INCH LCM 320240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : KCS057QV1AA-G03

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 500PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCS057QV1AA-G03

BRAND : Kyocera

RESOLUTION : 320×240RGB

SIZE : 5.7INCH

BRIGHTNESS : 110 cd/m² (Typ.)

Type : CSTN-LCD , LCM

Interface Type : Parallel Data (8-bit) 15 pins Connector

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C

Contact Now

Kyocera KCS057QV1AA-G03 Application Details

Basic Information :	Brand KCS057QV1AA-G03 1 CompatibleModel Type CSTN-LCD , LCM Used For 5.7 inchScreen Size Alias KCS3224ASTT-X7
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C RoHS Vibratio n

Kyocera KCS057QV1AA-G03 Mechanical Details

Pixel Features :	Resolution 320(RGB)×240, QVGA Dot Pitch(mm) 0.120×0.360 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.360×0.360 (H×V) [70PPI]
Mechanical Size :	Active Area(mm) 115.2(H) × 86.4(V) Bezel Area(mm) 120.2(H) × 91.4(V) Outline Dim.(mm) 154.6(H) × 114.8(V) Depth(mm) 8.5±0.5
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting :	Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
Other Spec :	Weight 200g (Typ.) Treatment Glare (Haze 0%)

Kyocera KCS057QV1AA-G03 Optical Details

Basic Information :	Luminance(cd/m²) 110 (Typ.) Contrast Ratio 25:1 (Typ.) (Transmissive) Viewing Angle 50/50/30/30 (Typ.)(CR≥2) Display Mode STN, Normally Black, Transmissive Best View on - Response(ms) 220/110 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.300; Wy:0.330 Display Colors Color Color Temperature 7203K White Uniformity -
1931 Color Gamlt :	NTSC Ratio 38% sRGB 51% coverage Adobe RGB 40% coverage DCI-P3 39% coverage Rec.2020 28% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCS057QV1AA-G03 Electronics Details

Frame Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KCS057QV1AA-G03 Interface Detail

Signal Electrical :	Voltage Supply 5.0V (Typ.) Current Supply 3.0mA (Typ.) Consumption 211/330mW (Typ./Max.)
Signal Type :	Parallel Data (8-bit) Logic Voltage -
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration molex 51021-1500 1.25 mm 15 pins 1 pcs PD-15P1C8B-010B

Kyocera KCS057QV1AA-G03 Backlight Details

Backlight Features :	Type CCFL Quantity 1 pcs Position Edge light type (Bottom side) Replacement - Shape Straight Life Time 25K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 315V (Typ.) Current Supply 3.0/5.0/6.0mA (Min./Typ./Max.) Frequency 30/100KHz (Min./Max.) Startup Voltage 510/770V (Max.)(Ta=+25/0℃)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLL-3PINS-HNL
Backlight Driver :	Optional

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL CSTN LCD Panel

VGA Lcd Video Panel

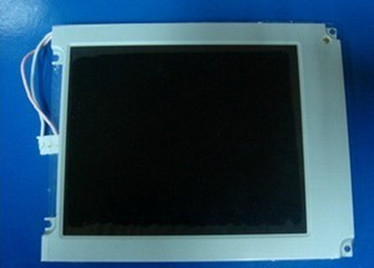

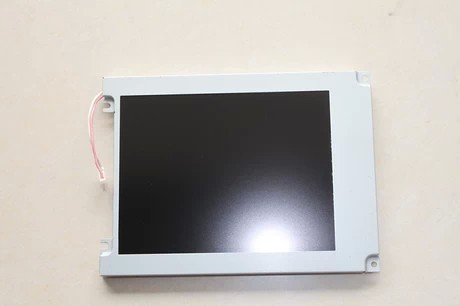

KCS057QV1AA-G03 Kyocera 5.7INCH LCM 320×240RGB 110NITS CCFL INDUSTRIAL LCD DISPLAY Images
