KCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY

Name: KCG057QV1DCG50 Kyocera 57INCH LCM 320240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China KCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : KCG057QV1DC-G50

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCG057QV1DC-G50

BRAND : Kyocera

SIZE : 5.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 280 cd/m² (Typ.)

Interface Type : Parallel Data (8-bit) , 20 pins Connector

Type : CSTN-LCD, LCM

TEMPERATURE RANGE : Operating Temperature: 0 ~ 60 °C

Contact Now

Kyocera KCG057QV1DC-G50 Application Details

Basic Info；	Panel Brand		Type	Model Alias
Basic Info；		KCG057QV1DC-G50	CSTN-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 60 °C	-20 ~ 60 °C

Kyocera KCG057QV1DC-G50 Mechanical Features

Screen Size :	5.7"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	320(RGB)×240, QVGA	RGB Vertical Stripe	0.120×0.360 mm	0.360×0.360 mm [70PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	115.2×86.4 mm	119.4×90.6 mm	144×104.8 mm	10.8/15.3 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Touch Panel :	Touch Points	Signal Type	Controller	Technology
Touch Panel :	1 point	-	Without touch controller	4-wire Resistive Touch
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	220g (Typ.)	-	Antiglare, Hard coating (2H)
Holes & Brackets :	Rear mounting poles (4-Φ2.6)

Kyocera KCG057QV1DC-G50 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	280 cd/m² (Typ.)	STN, Normally Black, Transmissive	55:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	-	50/50/20/35 (Typ.)(CR≥2)	180/170 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	7732K	Color	X:0.300; Y:0.300
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	38%	52%	39%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	39%	28%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCG057QV1DC-G50 Electronics Features

Refresh Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KCG057QV1DC-G50 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Edge light type	75K(Typ.)	1 pcs	U shape	-
CCFL Electrical :	Input Voltage		Input Current			Power Consumption
	685V (Typ.)		3.0/4.0/6.0mA (Min./Typ./Max.)
	Operating Frequency		Startup Voltage
	30/100KHz (Min./Max.)		1035/1550V Max.)(Ta=+25/0℃)
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	Optional			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	BHR-03VS-1	1 pcs	3 pins	4.0 mm	BLL-3PINS-HNL

Kyocera KCG057QV1DC-G50 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3/5.0V (Typ.)(VDD)		40.5/27.0mA (Typ.)(3.3V/5.0V)(IDD)			-
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel Data (8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	Kyocera Elco	08-6210-020-340-800+	1 pcs	20 pins	0.5 mm	PD-20P1C8B-010A

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL CSTN LCD Panel

VGA Lcd Video Panel

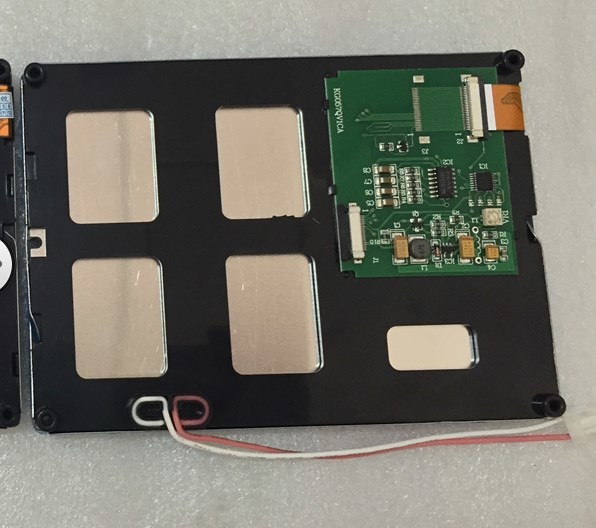

KCG057QV1DC-G50 Kyocera 5.7INCH LCM 320×240RGB 280NITS CCFL INDUSTRIAL LCD DISPLAY Images
