LQ121S1LG74 Sharp 12.1" LCM 800×600RGB 450cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LQ121S1LG74 Sharp 12.1" LCM 800×600RGB 450cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : SHARP

Model Number : LQ121S1LG74

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

Model : LQ121S1LG74

Diagonal Size : 12.1 inch

Luminance : 450 cd/m² (Typ.)

Pixel Format : 800(RGB)×600 [SVGA] 82PPI

Light Source : WLED , With LED Driver

Interface Type : LVDS (1 ch, 8-bit)

Type : a-Si TFT-LCD , LCM

Environment : Operating Temperature: -10 ~ 75 °C ; Storage Temperature: -30 ~ 75 °C

Contact Now

LQ121 Series LQ121S1LG74A LQ121S1LG74 LQ121S1LG73 LQ121S1LG72 LQ121S1LG71

Sharp LQ121S1LG74 Mechanical Details

Pixel Features : Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.1025×0.3075 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.3075×0.3075 (H×V) [82PPI]
Mechanical Size : Active Area(mm) 246(H) × 184.5(V) Bezel Area(mm) -
Outline Dim.(mm) 265(H) × 205(V) Depth(mm) 9.5±0.5
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Other Spec : Weight 550g (Max.) Treatment Antiglare, Hard coating (3H)

Sharp LQ121S1LG74 Optical Details

Basic Information : Luminance(cd/m²) 450 (Typ.) Contrast Ratio -
Viewing Angle - Display Mode TN, Normally White, Transmissive
Best View on - Response(ms) -
Color Performance : White Coordinate - Display Colors 16.2M (6-bit + FRC)

Sharp LQ121S1LG74 Electronics Details

Frame Rate : 60Hz
Reverse Scan : Yes (180°)
Power Consumption : 6.25W (Typ.)

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LQ121S1LG74 Sharp 12.1" LCM 800×600RGB 450cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

LVDS TFT LCD Panel



SVGA Sharp TFT LCD Display


China LQ121S1LG74 Sharp 12.1" LCM 800×600RGB 450cd/m² INDUSTRIAL LCD DISPLAY wholesale

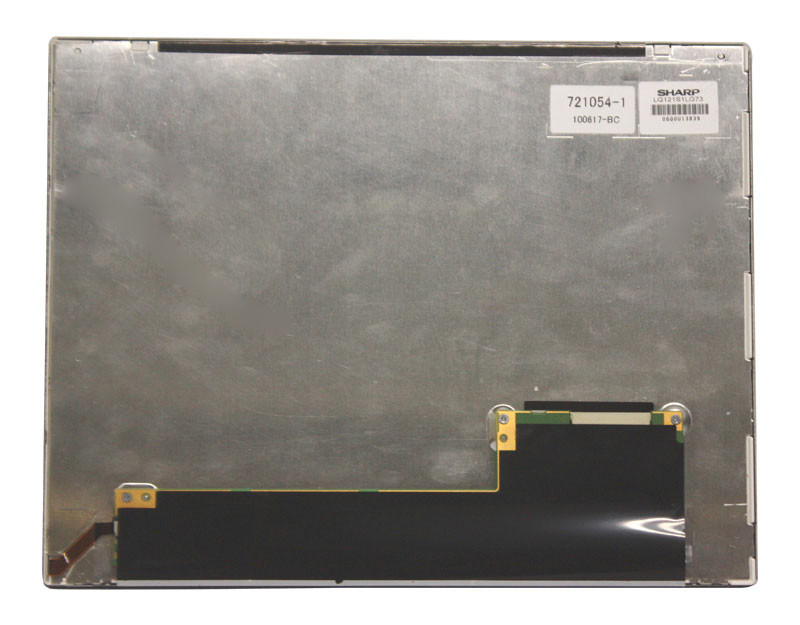

LQ121S1LG74 Sharp 12.1" LCM 800×600RGB 450cd/m² INDUSTRIAL LCD DISPLAY Images
