KCG047QV1AE-G00 Kyocera 4.7INCH LCM 320×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY

Name: KCG047QV1AEG00 Kyocera 47INCH LCM 320240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China KCG047QV1AE-G00 Kyocera 4.7INCH LCM 320×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : KCG047QV1AE-G00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 1000PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCG047QV1AE-G00

BRAND : Kyocera

SIZE : 4.7INCH

RESOLUTION : 320×240RGB

BRIGHTNESS : 130 cd/m² (Typ.)

Screen Type : LCM, CSTN-LCD

Signal Type : Parallel Data (8-bit) , 20 pins Connector

TEMPERATURE RANGE : Storage Temp.: -20 ~ 60 °C

Contact Now

Kyocera KCG047QV1AE-G00 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		KCG047QV1AE-G00	CSTN-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :	-	0 ~ 50 °C	-20 ~ 60 °C

Kyocera KCG047QV1AE-G00 Mechanical Features

Panel Size :	4.7 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	320(RGB)×240, QVGA	RGB Vertical Stripe	0.100×0.300 mm	0.300×0.300 mm [84PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	95.98×71.98 mm	100.6×76.6 mm	122.4×90 mm	9.4/13.5 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Touchscreen :	Touch Points	TP Controller	Signal Type	Touch Tech
Touchscreen :	-	-	-	4-wire Resistive Touch
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	150g	Glare (Haze 0%)

Kyocera KCG047QV1AE-G00 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	130 cd/m² (Typ.)	STN, Normally Black, Transmissive	30:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	50/50/20/30 (Typ.)(CR≥2)	-	190/180 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	7351K	Color	X:0.300; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	33%	46%	34%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	34%	24%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCG047QV1AE-G00 Electronics Features

Frame Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KCG047QV1AE-G00 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	45/30mA (Typ.)(3.3V/5.0V)(IDD)		3.3/5.0V (Typ.)(VDD)			-
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	Parallel Data (8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	Kyocera Elco	08-6210-020-340-800	1 pcs	0.5 mm	20 pins	PD-20P1C8B-010A

Kyocera KCG047QV1AE-G00 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type	Straight	1 pcs	54K(Typ.)	-
CCFL Electrical :	Current Input		Voltage Input			Consumption
	2.0/5.0/6.0mA (Min./Typ./Max.)		305V (Typ.)
	Turn-on Voltage		Lamp Frequency
	495/745V Max.)(Ta=+25/0℃)		40/100KHz (Min./Max.)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	Optional
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	BHR-03VS-1	1 pcs	4.0 mm	3 pins	BLL-3PINS-HNL

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCG047QV1AE-G00 Kyocera 4.7INCH LCM 320×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED FSTN LCD display

WLED Industrial TFT Display

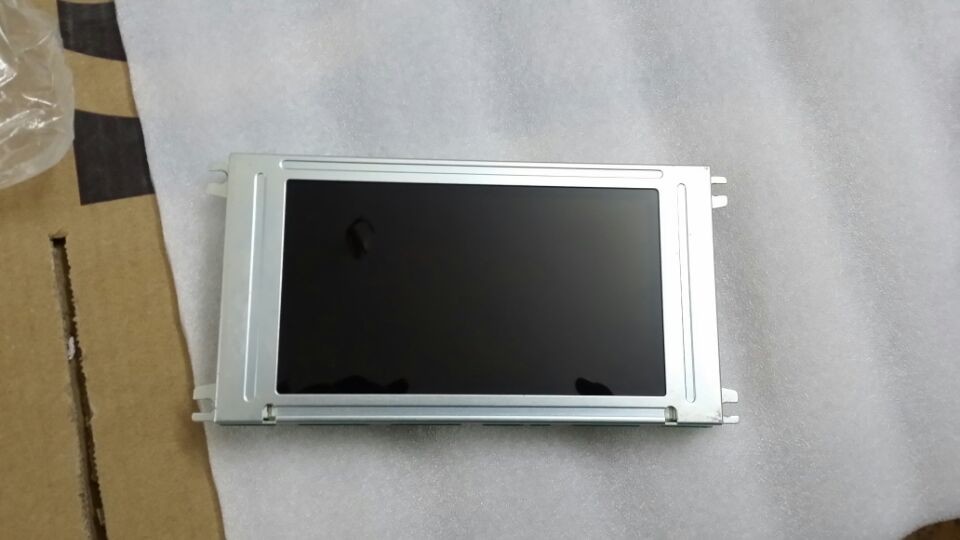

KCG047QV1AE-G00 Kyocera 4.7INCH LCM 320×240RGB 130NITS CCFL INDUSTRIAL LCD DISPLAY Images
