KCB104VG2CA-A43 Kyocera 10.4INCH LCM 640×480RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY

Name: KCB104VG2CAA43 Kyocera 104INCH LCM 640480RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China KCB104VG2CA-A43 Kyocera 10.4INCH LCM 640×480RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : KCB104VG2CA-A43

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCB104VG2CA-A43

BRAND : Kyocera

SIZE : 10.4INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 160 cd/m² (Typ.)

Interface Type : Parallel Data (8-bit) , 29 pins Connector

Light Source : CCFL [2 pcs] , 40K hours , Optional

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C

Contact Now

Kyocera KCB104VG2CA-A43 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		KCB104VG2CA-A43	CSTN-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 65 °C

Kyocera KCB104VG2CA-A43 Mechanical Features

Panel Size :	10.4 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.110×0.330 mm	0.330×0.330 mm [76PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	211.2×158.4 mm	217.2×164.4 mm	264×183 mm	8.5±0.5 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Fixation :	Face mounting holes (4-R1.7)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	540g (Typ.)	Antiglare

Kyocera KCB104VG2CA-A43 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	160 cd/m² (Typ.)	STN, Normally Black, Transmissive	30:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	45/45/35/20 (Typ.)(CR≥2)	-	16/80 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	-	Color

Kyocera KCB104VG2CA-A43 Electronics Features

Frame Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

Kyocera KCB104VG2CA-A43 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	68/102mA (Typ./Max.)		5.0V (Typ.)			340/510mW (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	Parallel Data (8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
	molex	53261-1510	1 pcs	1.25 mm	15 pins	PD-29P1C8B-010A
	molex	53261-1410	1 pcs	1.25 mm	14 pins

Kyocera KCB104VG2CA-A43 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type (Top and Bottom)	Straight	2 pcs	40K(Typ.)	-
CCFL Electrical :	Current Input		Voltage Input			Consumption
	2.0/5.0/6.0mA (Min./Typ./Max.)		520V (Typ.)
	Turn-on Voltage		Lamp Frequency
	845/1270V Max.)(Ta=+25/0℃)		40/100KHz (Min./Max.)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	Optional
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	HONDA	QZ-19-3F01	2 pcs		3 pins	BLL-3PINS-LNH

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCB104VG2CA-A43 Kyocera 10.4INCH LCM 640×480RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED FSTN LCD display

WLED Industrial TFT Display

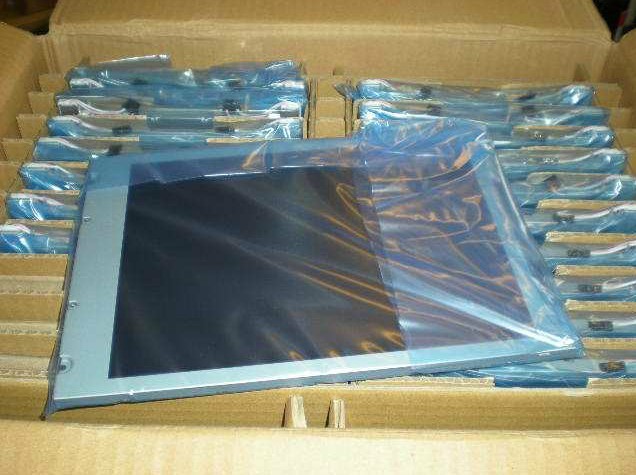

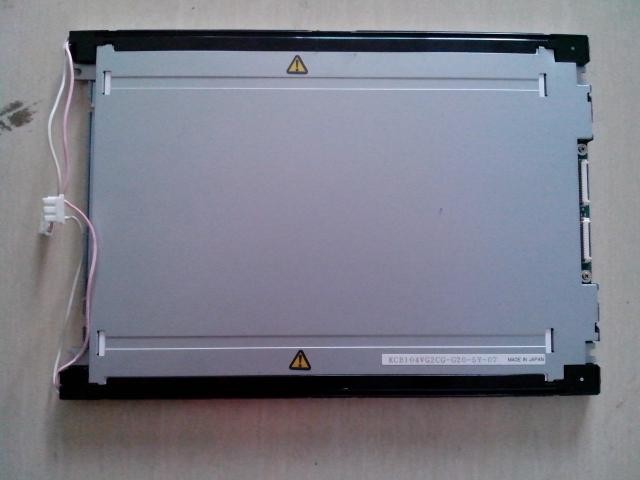

KCB104VG2CA-A43 Kyocera 10.4INCH LCM 640×480RGB 160NITS CCFL INDUSTRIAL LCD DISPLAY Images
