DMF-50961NF-FW Kyocera 7.2INCH LCM 640×480RGB 90NITS CCFL INDUSTRIAL LCD DISPLAY

Name: DMF50961NFFW Kyocera 72INCH LCM 640480RGB 90NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China DMF-50961NF-FW Kyocera 7.2INCH LCM 640×480RGB 90NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : DMF-50961NF-FW

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : DMF-50961NF-FW

BRAND : Kyocera

RESOLUTION : 640×480RGB

SIZE : 7.2INCH

BRIGHTNESS : 90 (Typ.)(cd/m²)

Screen Type : LCM , FSTN-LCD

Signal Type : Parallel Data (4-bit) , 15 pins Connector

Max. Ratings : Storage Temp.: -20 ~ 60 °C

Contact Now

OPTREX DMF-50961NF-FW Application Details

Basic Detail :	Manufacturer		Model Name	DMF-50961NF-FW
	Panel Type	FSTN-LCD , LCM	Another Name	-
	Panel Size	7.2 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	Vibration Level	-	RoHS

OPTREX DMF-50961NF-FW Optical Details

Basic Information :	Luminance	90 cd/m² (Typ.)	Contrast Ratio	12 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	270/140 (Typ.)(Tr/Td) (ms)
	Viewing Angle	-	Operating Mode	STN, Black/White mode, Transmissive
Color Performance :	Chromaticity	-	Support Color	Monochrome

OPTREX DMF-50961NF-FW Mechanical Details

Pixel Features :	Number of Pixel	640×480 [VGA]	Arrangement	Rectangle
Pixel Features :	Dot Pitch(W×H)	0.23×0.23 mm	Pixel Pitch(W×H)	0.23×0.23 mm [110PPI]
Physical Size :	Active Viewing	147.18(W)×110.38(H) mm	Overall Dim.	205.5(W)×141(H) mm
Physical Size :	Bezel Opening	153.0(W)×115.4(H) mm	Overall Depth	6.5 (Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Fixation :	Face mounting holes (4 pcs)
Other Detail :	Mass	250g (Max.)	Surface

OPTREX DMF-50961NF-FW Electronics Details

Refresh Rate :	70Hz

OPTREX DMF-50961NF-FW Interface Details

Signal Electrical :	Input Current	1.7/6.0mA (Typ./Max.)		Input Voltage	5.0V (Typ.)
Signal Electrical :	Consumption	-	Signal Interface	Parallel Data (4-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	molex	53261-1590	1 pcs	1.25 mm	15 pins

OPTREX DMF-50961NF-FW Lightting Details

Lamp Features:	Lamp Shape	Straight	Lamp Type	CCFL	Position	Edge light type
Lamp Features:	Exchange	-	Amount	1 pcs	Life	10K(Min.) (Hours)
Lamp Electrical :	Input Current	5.0mA (Typ.)		Input Voltage	315V (Typ.)
Lamp Electrical :	Frequency	-		Turn-on Voltage	420V (Min.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	MITSUMI	M63M83-04	1 pcs	2.5 mm	4 pins	BLL-4PINS-LNNH
Backlight Driver :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

DMF-50961NF-FW Kyocera 7.2INCH LCM 640×480RGB 90NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

WLED FSTN LCD display

WLED Industrial TFT Display

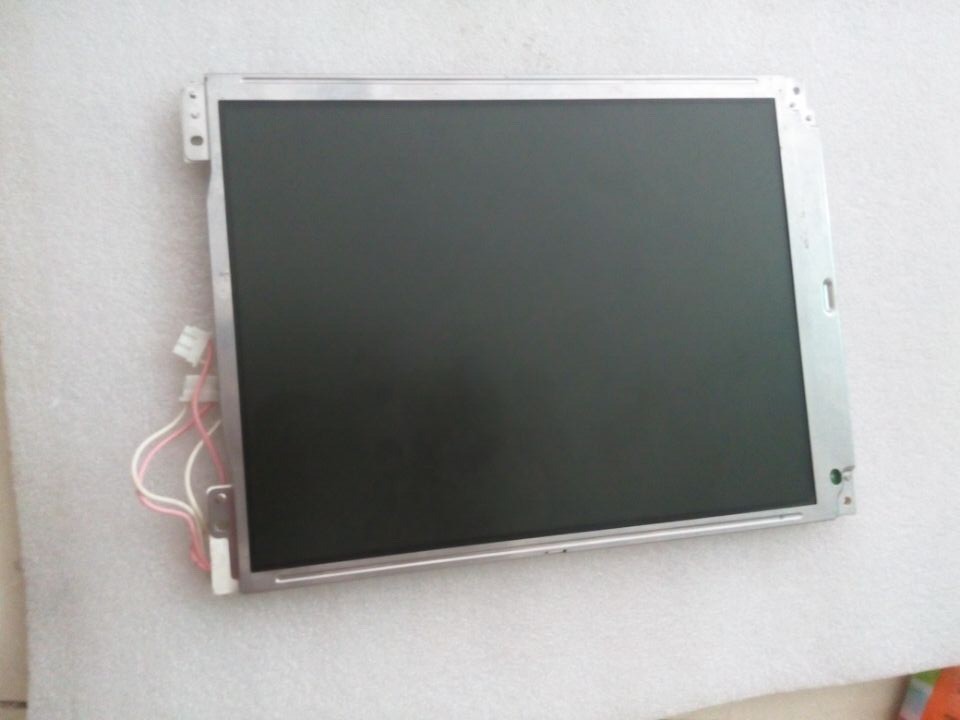

DMF-50961NF-FW Kyocera 7.2INCH LCM 640×480RGB 90NITS CCFL INDUSTRIAL LCD DISPLAY Images
