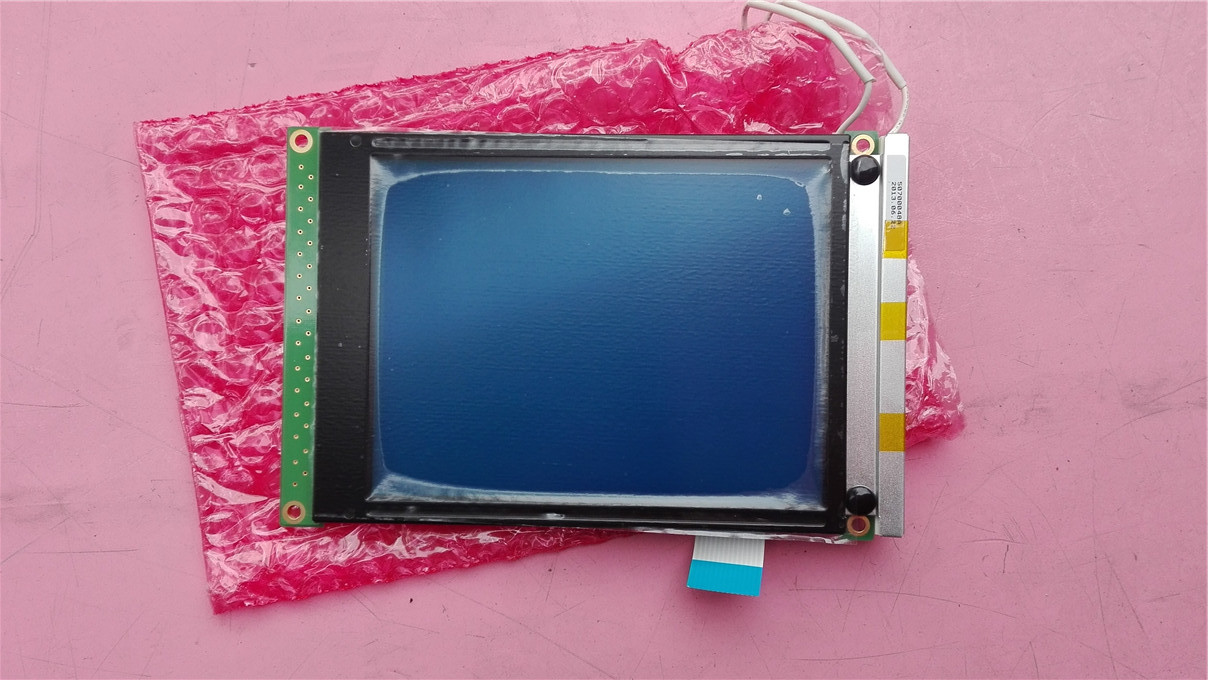

DMF-50840NB-FW-ASE-BFN Kyocera 5.7INCH LCM 320×240RGB 60NITS CCFL INDUSTRIAL LCD DISPLAY

Name: DMF50840NBFWASEBFN Kyocera 57INCH LCM 320240RGB 60NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

China DMF-50840NB-FW-ASE-BFN Kyocera 5.7INCH LCM 320×240RGB 60NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : DMF-50840NB-FW-ASE-BFN

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 50PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : DMF-50840NB-FW-ASE-BFN

BRAND : Kyocera

RESOLUTION : 320×240RGB

SIZE : 5.7INCH

BRIGHTNESS : 60 cd/m² (Typ.)

Panel Type : STN-LCD, LCM

Lamp Type : 1 pcs CCFL , 20K hours , Without Driver

Environment : Operating Temp.: 0 ~ 60 °C

Contact Now

OPTREX DMF-50840NB-FW-ASE-BFN Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		DMF-50840NB-FW-ASE-BFN	STN-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 60 °C	-20 ~ 60 °C

OPTREX DMF-50840NB-FW-ASE-BFN Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	60 (Typ.)	-	250/280 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	6 o'clock	STN, Blue mode, Transmissive	5 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	-	Monochrome	-
White Variation :	1.43 (Max.)(9 points)

OPTREX DMF-50840NB-FW-ASE-BFN Mechanical Features

Panel Size :	5.7"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	320×240 [QVGA]	Rectangle	0.360×0.360 [70PPI]	0.360×0.360
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	115.17(H) × 86.37(V)	120.0(H) × 90.0(V)	167.1(H) × 109(V)	11.0 (Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Mounting :	Face mounting holes (4-Φ3.5)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	230g (Max.)	-	-

OPTREX DMF-50840NB-FW-ASE-BFN Electronics Features

Reverse Scan :	No
Vertical Frequency :	75Hz

OPTREX DMF-50840NB-FW-ASE-BFN Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	CCFL	Edge light type	1 pcs	Straight	20K(Min.)	-
CCFL Electrical :	Voltage Supply		Current Supply			Power
	340V (Typ.)		4.0±1.0mA
	Operating Frequency			Kick-off Voltage
				850V (Min.)(Ta=0℃)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :				4 pins	1 pcs	BLL-4PINS-HNNL

OPTREX DMF-50840NB-FW-ASE-BFN Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	5.0V (Typ.)		5.5/15.0mA (Typ./Max.)			-
Interface Features :	Position	Signal				Type
Interface Features :	-	Parallel Data (4-bit)				FPC
FPC Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
FPC Detail :			1.25 mm	14 pins	1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
