TM060RDH01 TIANMA 6.0" 800(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM060RDH01 TIANMA 60quot 800RGB480 400 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

China TM060RDH01 TIANMA 6.0" 800(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY wholesale

Brand Name : TIANMA

Model Number : TM060RDH01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 300PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM060RDH01

BRAND : TIANMA

SIZE : 6.0INCH

RESOLUTION : 800(RGB)×480, WVGA, 155PPI

BRIGHTNESS : 400 cd/m² (Typ.)

Viewing Angle : 70/70/60/70 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM060RDH01 Application Details

Basic Detail :	Manufacturer		Model Name	TM060RDH01
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	6.0 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	Vibration Level	-	RoHS
Features :
Remarks :	DE/SYNC Mode Selectable; Down side FPC

TIANMA TM060RDH01 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	500 : 1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	20/30 (Typ./Max.)(Tr+Td) (ms)
	Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.305; Wy:0.330	Support Color	262K/16.2M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	6914K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	49%	sRGB	68% coverage
	Adobe RGB	51% coverage	DCI-P3	51% coverage
	Rec.2020	37% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM060RDH01 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)×480 [WVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0555×0.1538 mm	Pixel Pitch(W×H)	0.1665×0.1538 mm [155PPI]
Physical Size :	Active Viewing	133.2(W)×73.8(H) mm	Overall Dim.	145.5(W)×87.8(H) mm
Physical Size :	Bezel Opening	136.4(W)×76.7(H) mm	Overall Depth	5.4±0.3 mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style
Other Detail :	Mass	113.3g	Surface	Antiglare

TIANMA TM060RDH01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	1.644W (Typ.)
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM060RDH01 Interface Details

Signal Electrical :	Input Current	5/25/0.4/0.4mA (Typ.)(ICC/IVDD/IGH/IGL)		Input Voltage	3.3/9.84/19.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Signal Electrical :	Consumption	0.3W (Typ.)	Signal Interface	Parallel RGB (1 ch, 6/8-bit)
Logic Voltage for Signals :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position	-	Physical Type	FPC
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	60 pins

TIANMA TM060RDH01 Lightting Details

Lamp Features:	Lamp Shape	Array	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	3S7P	Life	20K(Typ.) (Hours)
Lamp Electrical :	Input Current	140/175mA (Typ./Max.)		Input Voltage	9.6V (Typ.)
Lamp Electrical :	Consumption	1.344/1.680W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BHSR-02VS-1	1 pcs	3.5 mm	2 pins	BLE-2PINS-AC
Backlight Driver :	No

TIANMA TM060RDH01 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	50 pcs / box	530×350×250 mm	8.656 Kgs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM060RDH01 TIANMA 6.0" 800(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

LVDS TFT LCD Display

CCFL Sharp TFT LCD Display

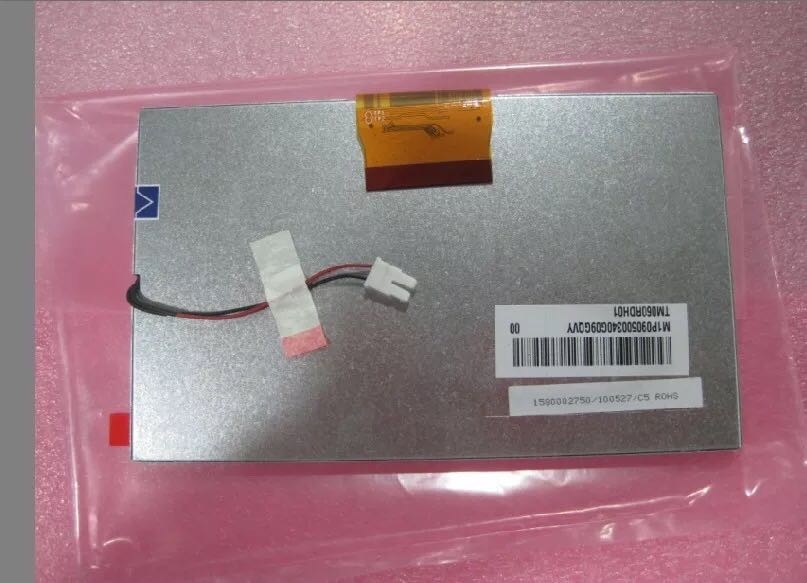

TM060RDH01 TIANMA 6.0" 800(RGB)×480 400 cd/m² INDUSTRIAL LCD DISPLAY Images
