19" LCM 1280×1024RGB 350cd/m² LQ190E1LX75 Sharp TFT LCD Display

Name: 19quot LCM 12801024RGB 350cdm LQ190E1LX75 Sharp TFT LCD Display
Brand: SHARP
Price: 1 USD

China 19" LCM 1280×1024RGB 350cd/m² LQ190E1LX75 Sharp TFT LCD Display wholesale

Brand Name : SHARP

Model Number : LQ190E1LX75

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

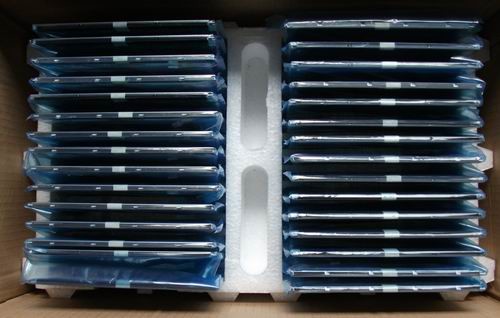

Packaging Details : 10 pcs / box 16 Kgs 505×410×415 mm

Diagonal Size : 19.0 inch

Model : LQ190E1LX75

Active Area : 376.32(H)×301.056(V) mm

Pixel Format : 1280(RGB)×1024 [SXGA] 86PPI

Luminance : 350 cd/m² (Typ.)

Light Source : WLED , 70K hours , With LED Driver

Interface Type : LVDS (2 ch, 8-bit) 30 pins Connector

Environment : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C

Contact Now

LQ190 Series LQ190E1LX78 LQ190E1LX75T LQ190E1LX75 LQ190E1LX65

Sharp LQ190E1LX75 Application Details

Basic Detail :	Manufacturer SHARP LQ190E1LX75Model Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 19.0 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -25 ~ 70 °C RoHS -Vibration Level

Sharp LQ190E1LX75 Optical Details

Basic Detail :	Luminance 350 cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 35 (Typ.)(Tr+Td) ms Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Operating Mode ASV, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.33 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 78% sRGB 100% coverage Adobe RGB 78% coverage DCI-P3 81% coverage Rec.2020 58% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ190E1LX75 Mechanical Details

Pixel Features :	Number of Pixel 1280(RGB)×1024, SXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.098×0.294 mm Pixel Pitch(W×H) 0.294×0.294 mm [86PPI]
Physical Size :	Active Viewing 376.32(W)×301.056(H) mm Overall Dim. 396(W)×323.7(H) mm Bezel Opening 382.00(W)×307.55(H) mm Overall Depth 7.7/12.0V (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 5:4 Shape Style
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Mass 1.30Kgs (Max.) Surface Antiglare (Haze 3%), Hard coating (3H)

Sharp LQ190E1LX75 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No

Sharp LQ190E1LX75 Interface Detail

Signal Electrical :	Input Current 0.55/1.00A (Typ./Max.) Input Voltage 5.0V (Typ.) Consumption - Signal Interface LVDS (2 ch, 8-bit)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JAE FI-XB30SSRLA-HF16 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-200A

Sharp LQ190E1LX75 Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type Exchange No Lamp Shape - Lamp Life 70K(Typ.) (Hours)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST SM10B-SHLS-TF 1.0 mm 10 pins 1 pcs
Backlight Driver :	With LED Driver
Driver Electrical :	Input Voltage 12.0±1.2V Input Current 1.40/1.90A (Typ./Max.)

LQ190E1LX75 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×323.7(H)×12(D) mm, viewing area size of 382.00(W)×307.55(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (3H), net weight of 1.30Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ190E1LX75 can provides 350 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)
