TIANMA TM070JDHP01-00 Application Details
| Basic Info : | Panel Brand | | Panel Model | TM070JDHP01-00 1 Compatible |
| Diagonal Size | 7.0" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~ 70 °C |
TIANMA TM070JDHP01-00 Mechanical Details
| Pixel Features : | Pixel Format | 1280(RGB)×800 [WXGA] | Dot Pitch | 0.039×0.117 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.117×0.117 mm (H×V) [217PPI] |
| Mechanical Size : | Display Area | 149.76×93.6 mm (H×V) | Bezel Area | 151.76×95.6 mm (H×V) |
| Outline Dim. | 161×107 mm (H×V) | Outline Depth | 2.5/4.4 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | |
| Holes & Brackets : | Without |
| Other Features : | Weight | 85.0g (Typ.) | Surface | Antireflection |
TIANMA TM070JDHP01-00 Optical Details
| Basic Information : | Brightness | 420 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | SIP, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.320 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6737K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
TIANMA TM070JDHP01-00 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 2.0W (Typ.) |
TIANMA TM070JDHP01-00 Backlight Details
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | - |
| Replacement | - | Amount | 9S2P | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 26.1V (Typ.) | Current Input | 40mA (Typ.) |
| Consumption | 1.05W (Typ.) |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 6.0/12.0/21.0V (Min./Typ./Max.) | Current Input |
TIANMA TM070JDHP01-00 Interface Details
Signal Systerm : LVDS (1 ch, 8-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input -
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
FCI 10064555-392120HLF 0.3 mm 39 pins 1 pcs
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 149.76(W)×93.6(H) mm, outline size of 161(W)×107(H)×4.4(D) mm, viewing area size of 151.76(W)×95.6(H) mm, with surface treament of Antireflection, net weight of 85.0g (Typ.). As a SIP, Normally Black, Transmissive LCM product, TM070JDHP01-00 can provides 420 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. TM070JDHP01-00 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 39 pins Connector with power supply voltage of 3.3V (Typ.)
Product Tags:
|
|

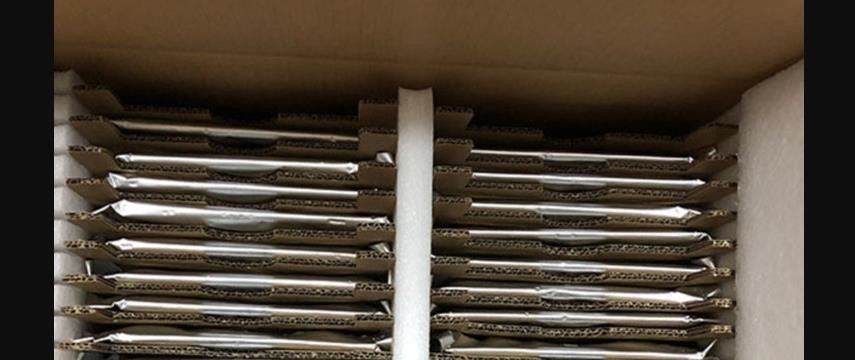

TM070JDHP01-00 TIANMA 7.0" 1280(RGB)×800 420 cd/m² INDUSTRIAL LCD DISPLAY Images
|
